8-40 Phaser 6300/6350/6360 Color Laser Printer Service Manual
Service Parts Disassembly

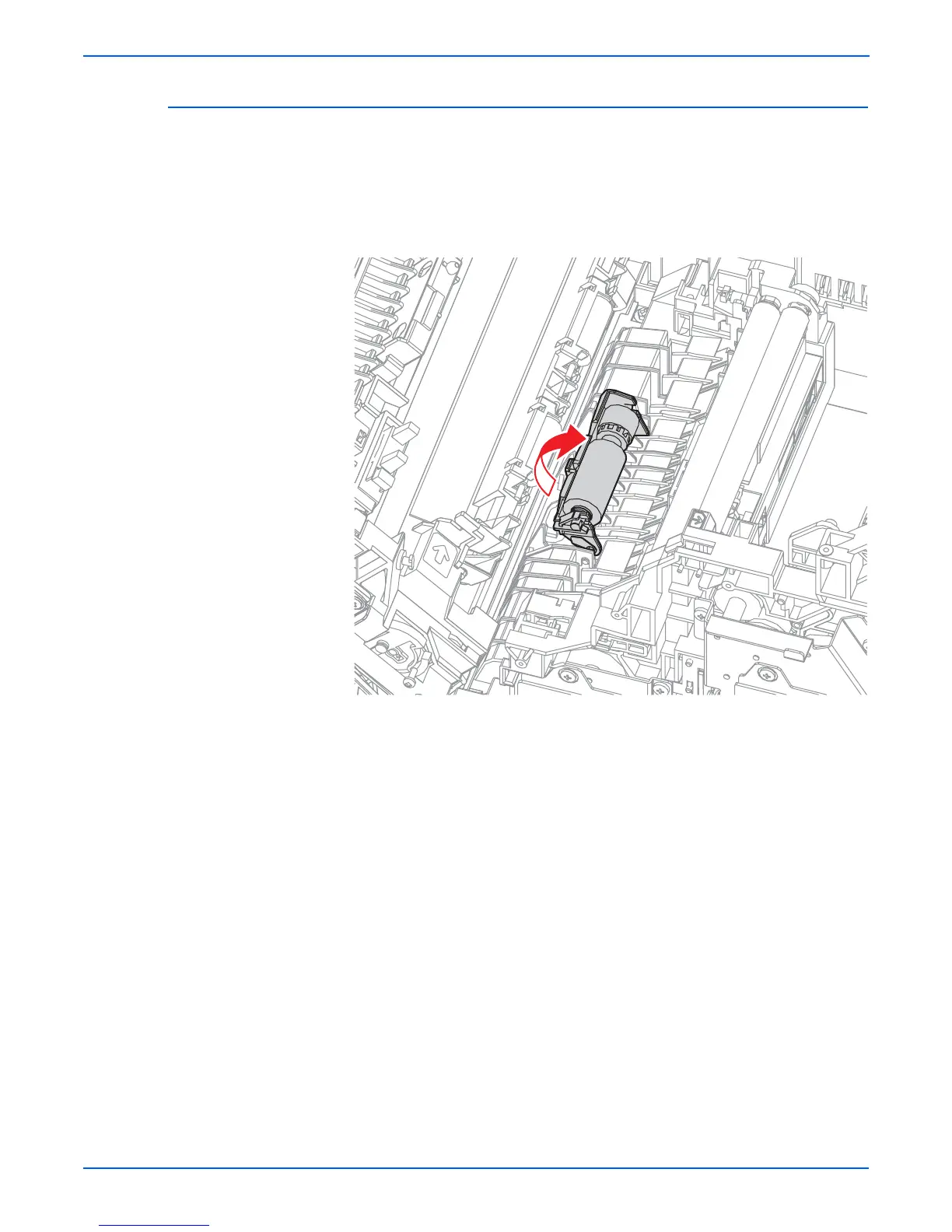

Retard Holder Assembly (PL4.1.16)
1. Open the Door A.
2. Remove the Transfer Roller.
3. Turn the Retard Holder Assembly upward.
4. Move the Retard Holder Assembly to the right to release the shaft and
remove the Retard Holder Assembly.
s6360-158
