Phaser 6300/6350/6360 Color Laser Printer Service Manual 8-87
Service Parts Disassembly
Replacement Note

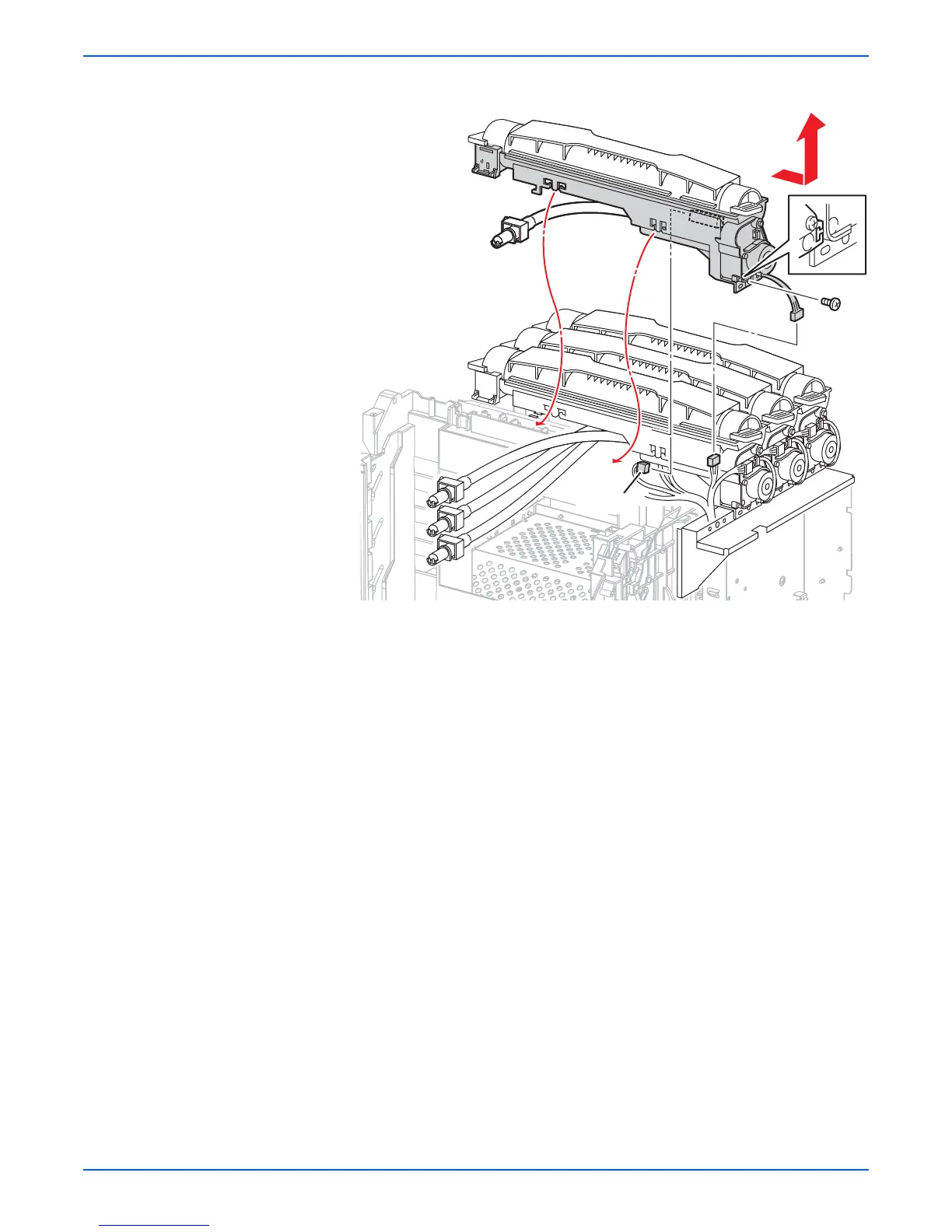

When replacing a holder located between two other colors, spread
the installed holders slightly as you insert the replacement. Lock all
four Toner Cartridge Holders into the CRUM Reader.
To refill the new Auger Tube, run the Service Diagnostics Toner Motor
test for the appropriate color continuously for a period of no more than
90 seconds.
s6360-201
P/J701
P/J511
To Next Page
