41. Release the hook that holds the left side Roll Core retainer on the shaft
and slide it to the left.

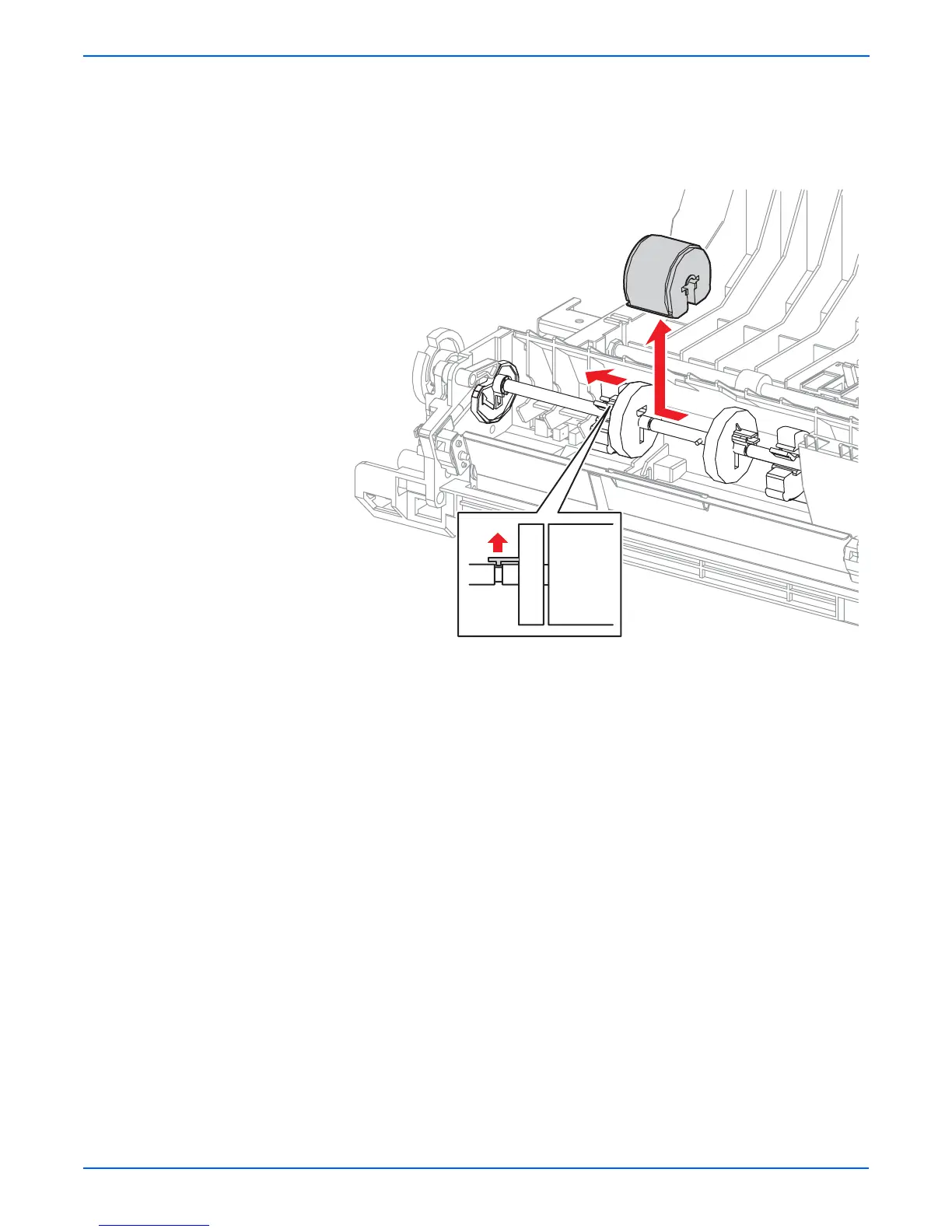

42. Note the orientation of the Feed Roller and slide the Feed Roller left until
the pin on the shaft appears and rotate the Feed Roller to remove it from
the shaft.
Note
With the Solenoid engaged, the flat portion of the Feed roller should
face the Bottom Plate.
43. Replace the left side Link and Spring, the Stopper Strap, and the Left
Front Cover.
44. Close Door B.
45. Remove Tray 2.
s6360-177
