Phaser 6300/6350/6360 Color Laser Printer Service Manual 8-49
Service Parts Disassembly

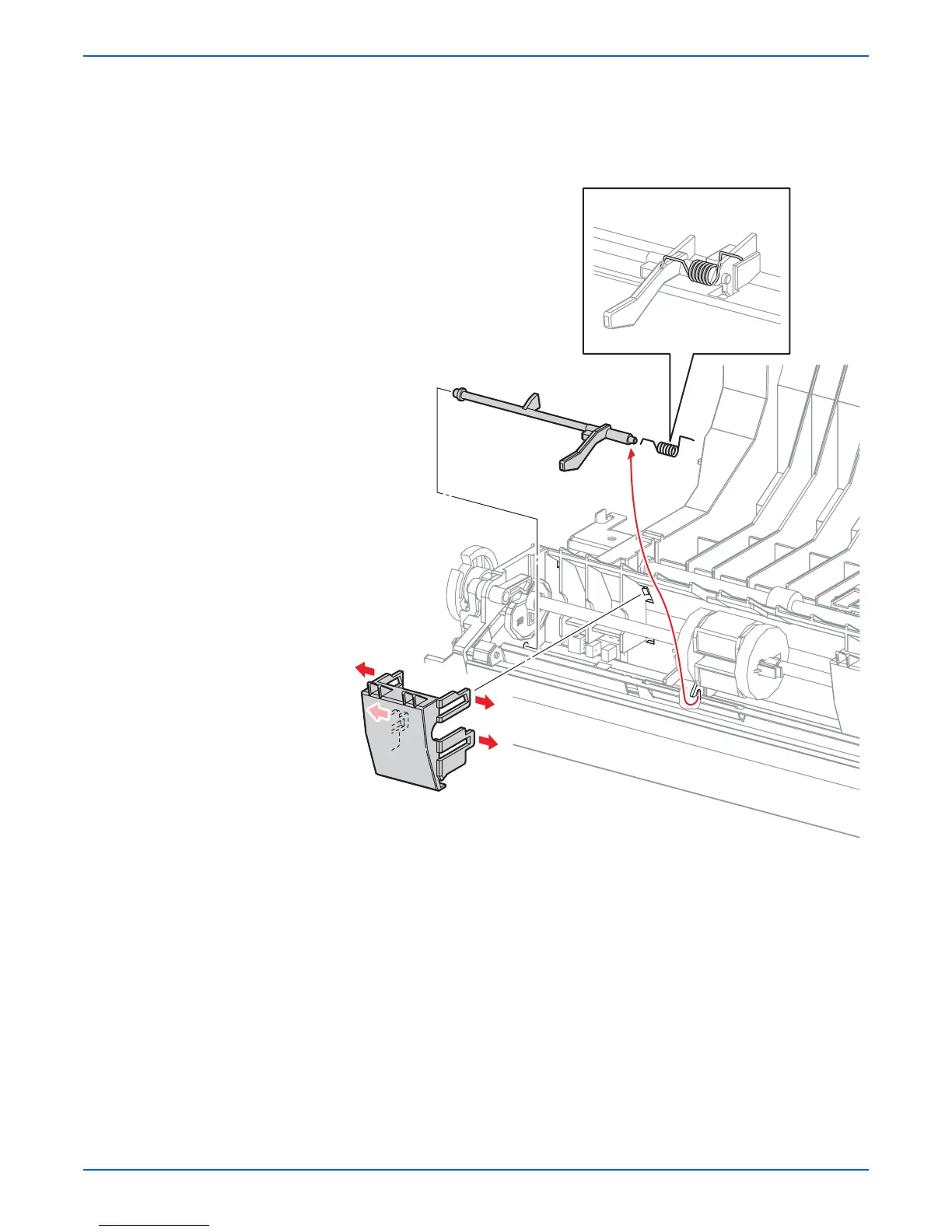

8. Release the 4 hooks that secure the actuator cover to the Chute
Assembly Out.
9. Remove the No Paper Sensor Actuator from the notch of the Chute
Assembly Out and pull out the other end of the actuator through mounting
hole to remove it.
s6360-174
NOTE
