Phaser 6300/6350/6360 Color Laser Printer Service Manual 8-57
Service Parts Disassembly

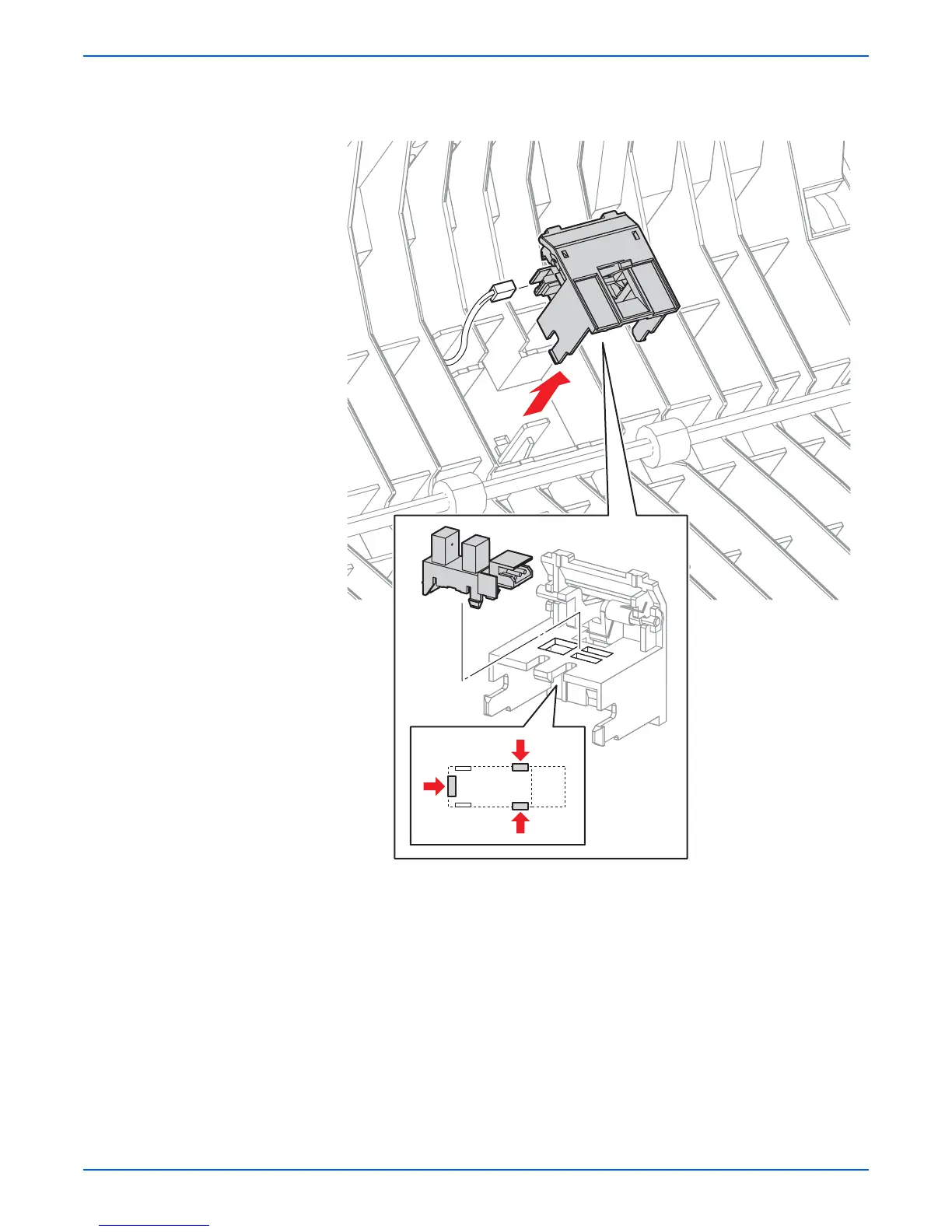

4. Unplug connector (P/J133) from the Duplex Jam Sensor.
5. Release the 3 hooks that secure the Duplex Jam Sensor to the holder.
6. Press the shaft of the actuator through the 2 holes in the holder with a
miniature screwdriver to remove the Duplex Jam Sensor Actuator.
s6360-180
