Phaser 6300/6350/6360 Color Laser Printer Service Manual 8-63
Service Parts Disassembly

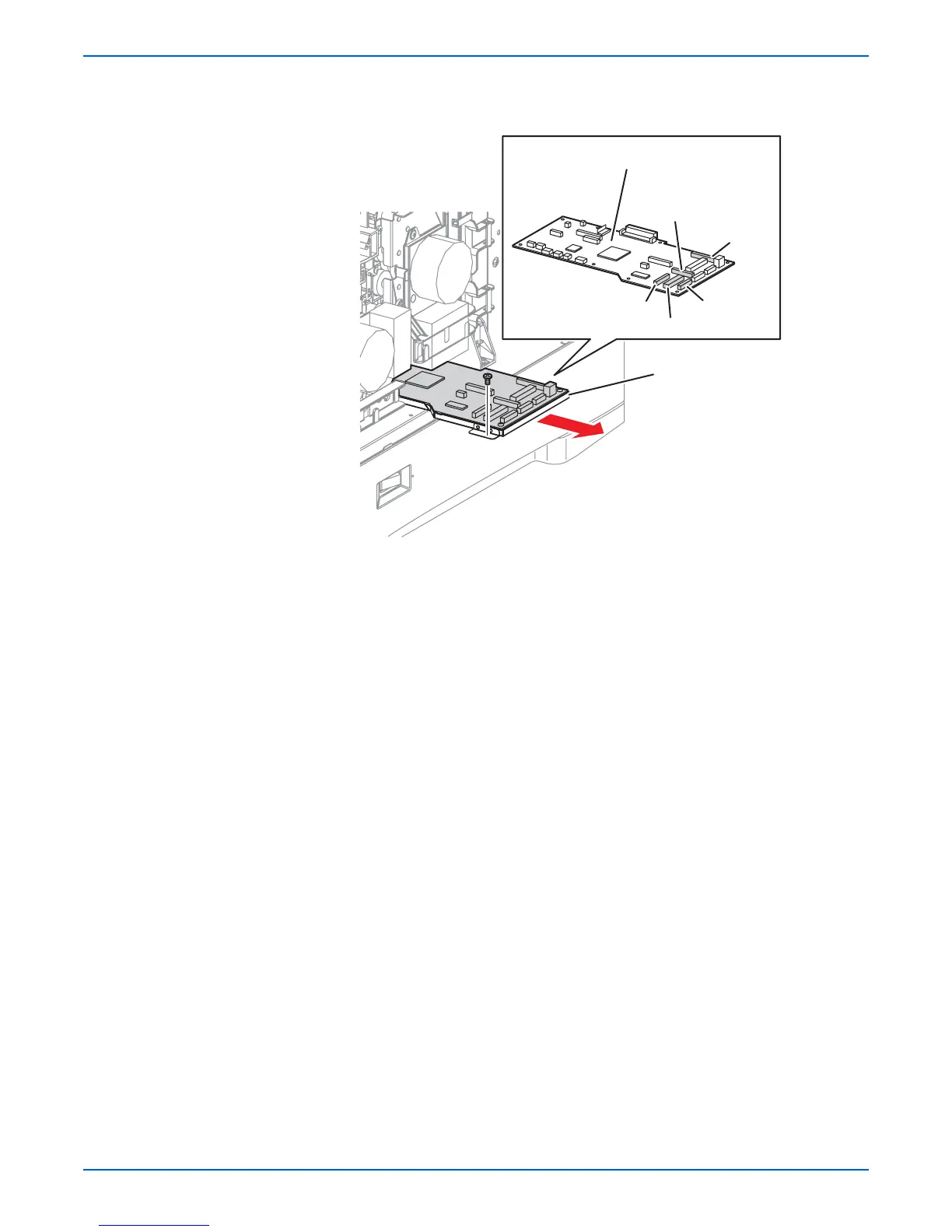

11. Unplug connectors (P/J13 and P/J22) from the Engine Control Board and
remove the harnesses from the Front Harness Guide.
N
o
t
e
If removing the Chute Assembly In, also unplug connectors (P/J36, P/J48,
and P/J52) and remove these harnesses from the Front Harness Guide.
Engine Control
Board Bracket
s6360-347
P/J13
P/J22
P/J52
P/J36
P/J48
Engine Control Board
