Phaser 6300/6350/6360 Color Laser Printer Service Manual 2-31
Theory of Operation
Rubber Registration Roller works with the Metal Registration Roller to
correct media skew and transport media.
■ Metal Registration Roller
Works in conjunction with the Rubber Registration Roller. When the
leading edge of the paper arrives at the registration rollers, the rollers are
not turning and the paper buckles against the rollers to correct any skew
at the leading edge.
■ Tur n R o ll er
The Turn Roller is rotated by the Main Drive Assembly, through the Turn
Clutch to feed paper from Tray 1 (MPT) to the Registration Chute.
■ Tur n C l u tc h
Transfers drive from the Main Drive Assembly to the Turn Roller through a
friction clutch.
■ Registration Clutch
Transfers drive from the Main Drive Assembly to the Rubber Registration
Roller, and transports the paper from Tray 1 (MPT) and the duplex path
toward the Imaging Unit.

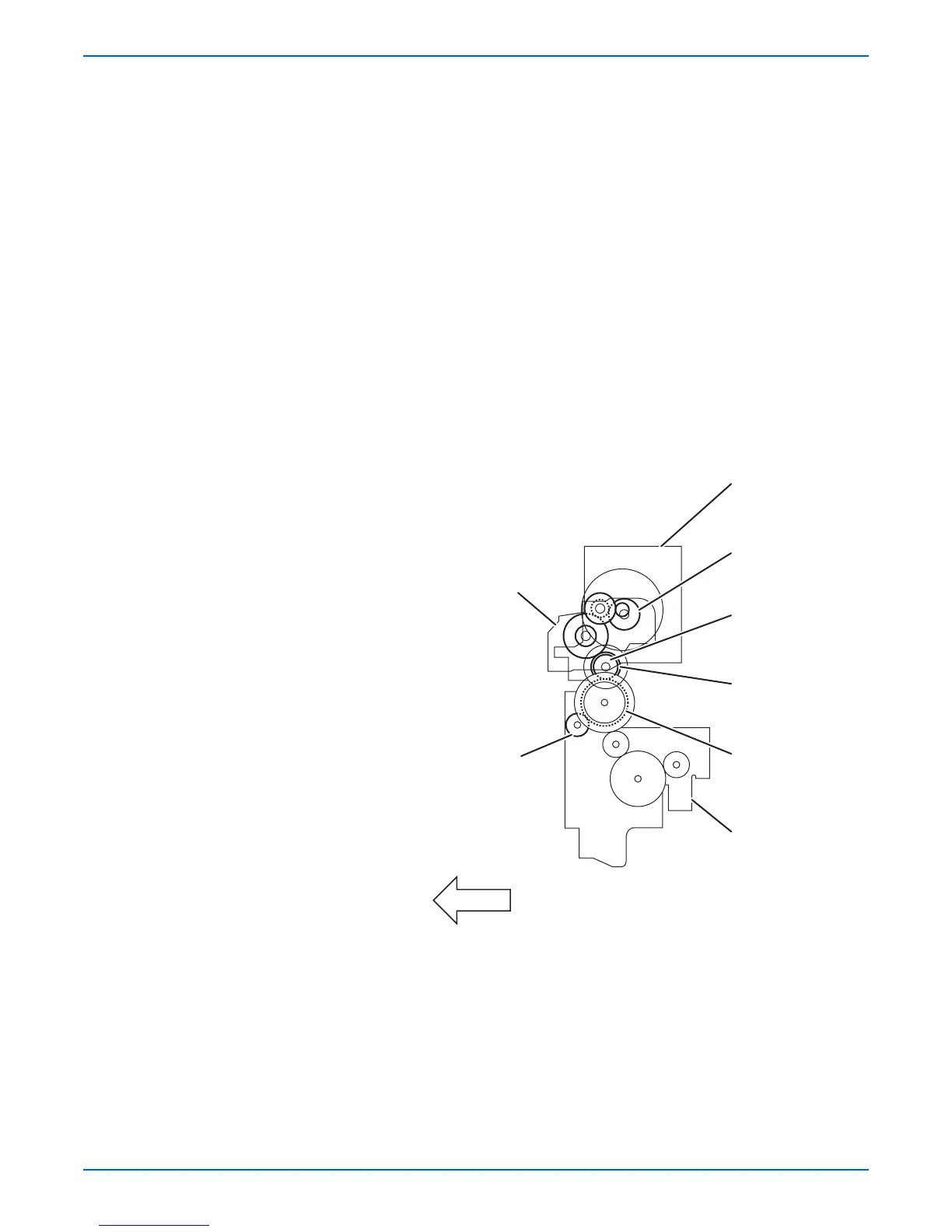

s6360-050
Main Drive Assembly
Registration Clutch
Gear P1
Turn Clutch
Gear Idler Turn
Paper Pick Assembly
Registration Chute Assembly
Gear Turn
Front

Xerox Phaser 6360 Specifications

General

Depth (max)	698 mm
Depth (min)	580 mm
Height (max)	854 mm
Height (min)	513 mm
Maximum width	572 mm
Package length	933.449 mm
Storage temperature (T-T)	32 - 95 °F
Power consumption (active)	750 W
Non-operating relative humidity (non-condensing)	15 - 85 %
AC input voltage	220 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	105 W
Power consumption (PowerSave)	22 W
Multi-Purpose tray	Yes
Total input capacity	1800 sheets
Total output capacity	250 sheets
Maximum input capacity	2350 sheets
Multi-Purpose tray input capacity	150 sheets
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Print speed (black, normal quality, A4/US Letter)	40 ppm
Maximum internal memory	1024 MB
Sound power level (standby)	34.4 dB
Operating temperature (T-T)	50 - 90 °F
Maximum duty cycle	100000 pages per month
Number of print cartridges	-
Page description languages	PCL 5c, PostScript 3
Package width	609.599 mm
Package height	1498.599 mm
Package weight	83462.4 g
Custom media width	89 - 216 mm
Maximum print size	216 x 356 mm
Custom media length	140 - 914 mm
Paper tray media types	Envelopes, Labels, Plain paper
Paper tray media weight	64 - 216 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Letter (media size), Oficio (media size), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Wi-Fi	No
Security algorithms	802.1x RADIUS
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Wireless LAN
Certification	CE, EMC 89/336/EEC, FCC, Low Voltage 73/23/EEC, RoHS, 2002/95/EC
Product color	Blue, White
Sustainability certificates	ENERGY STAR
