Xerox Phaser 6360 Service Manual

Phaser 6300/6350/6360 Color Laser Printer Service Manual 2-37
Theory of Operation

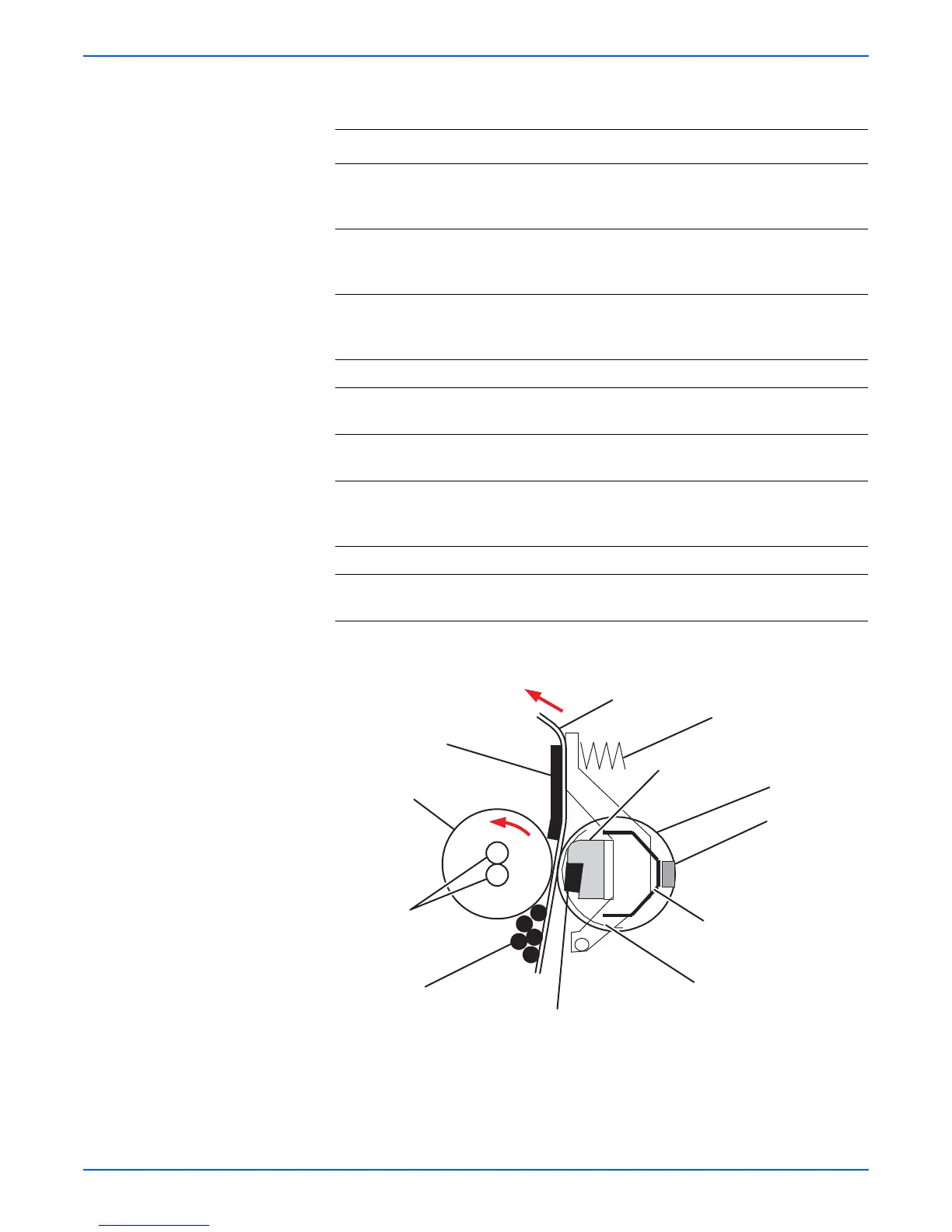

The following figure shows how the Heat Roller and belt compress the paper
and applied toner to fuse the image to the media.
Fuser Assembly Components
Component Function
Heat Roller The Heat Roller is a metal tube with a coated surface and a
Heater Assembly inside. As paper passes between the Heat
Roller and Pressure Roller, the heat fuses the toner to the paper.
Belt The Belt maintains pressure on the paper passing between it
and the Heat Roller. Pressure bonds the melted toner to the
paper.
Heater Lamps The Heater Rods are glass tubes containing heater coils. The
Main Heater Rod heats the entire length of the Heat Roller, and
the Dual Sub-Heater Rods heat the center.
Fuser Exit Roller Transports media out of the Fuser.
Non-Contact
Sensor
This sensor detects the center temperature of the Heat Roller.
Thermistors These sensors monitor the Heat Roller outside edge
temperature.
Thermostat The Thermostat provides a second-level of protection. If the
Heat Roller temperature exceeds the preset temperature, the
Thermostat cuts off the AC power to the Heater Lamps.
CRUM Maintains Fuser usage information.
Fuser Exit Sensor This sensor detects paper at the exit area behind the Fuser.
When paper is present, the signal /EXIT is Low.
Paper
Unfixed Toner
Fixed Toner
s6360-040
Sheet
Belt Frame
Felt
Belt
Nip Head
Spring Nip
Heat Roll
Heater Lamp
Pad

Xerox Phaser 6360 Specifications

General

Depth (max)	698 mm
Depth (min)	580 mm
Height (max)	854 mm
Height (min)	513 mm
Maximum width	572 mm
Package length	933.449 mm
Storage temperature (T-T)	32 - 95 °F
Power consumption (active)	750 W
Non-operating relative humidity (non-condensing)	15 - 85 %
AC input voltage	220 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	105 W
Power consumption (PowerSave)	22 W
Multi-Purpose tray	Yes
Total input capacity	1800 sheets
Total output capacity	250 sheets
Maximum input capacity	2350 sheets
Multi-Purpose tray input capacity	150 sheets
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Print speed (black, normal quality, A4/US Letter)	40 ppm
Maximum internal memory	1024 MB
Sound power level (standby)	34.4 dB
Operating temperature (T-T)	50 - 90 °F
Maximum duty cycle	100000 pages per month
Number of print cartridges	-
Page description languages	PCL 5c, PostScript 3
Package width	609.599 mm
Package height	1498.599 mm
Package weight	83462.4 g
Custom media width	89 - 216 mm
Maximum print size	216 x 356 mm
Custom media length	140 - 914 mm
Paper tray media types	Envelopes, Labels, Plain paper
Paper tray media weight	64 - 216 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Letter (media size), Oficio (media size), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Wi-Fi	No
Security algorithms	802.1x RADIUS
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Wireless LAN
Certification	CE, EMC 89/336/EEC, FCC, Low Voltage 73/23/EEC, RoHS, 2002/95/EC
Product color	Blue, White
Sustainability certificates	ENERGY STAR
