Universal Feeder
■ Level Sensor
The Level Sensor uses an actuator to determine whether paper in the tray is lifted
to the optimum feeding position. When the flag of the actuator leaves the sensing
area, the sensor detects that the paper has been lifted.
■ Feed-Out Sensor
The Feed-Out Sensor detects a paper jam in the tray by the paper position and
sensor transition time.
■ No Paper Sensor
The No Paper Sensor uses an actuator to determine whether the tray is empty.
When the actuator lowers, the No Paper Sensor signal goes High indicating an
empty tray.
■ Feeder Board
The Feeder Board communicates sensor information to the Motor Driver Board.
Side Output Tray
The Side Output Tray provides 250-sheets of faceup output capacity. Included is a
Paper Support that rotates 180 degrees to support the stack, and a latching door for
printers equipped with a Finisher. Stack level is monitored by The Side Output Tray
Full Stack Sensor mounted in the Exit Assembly.

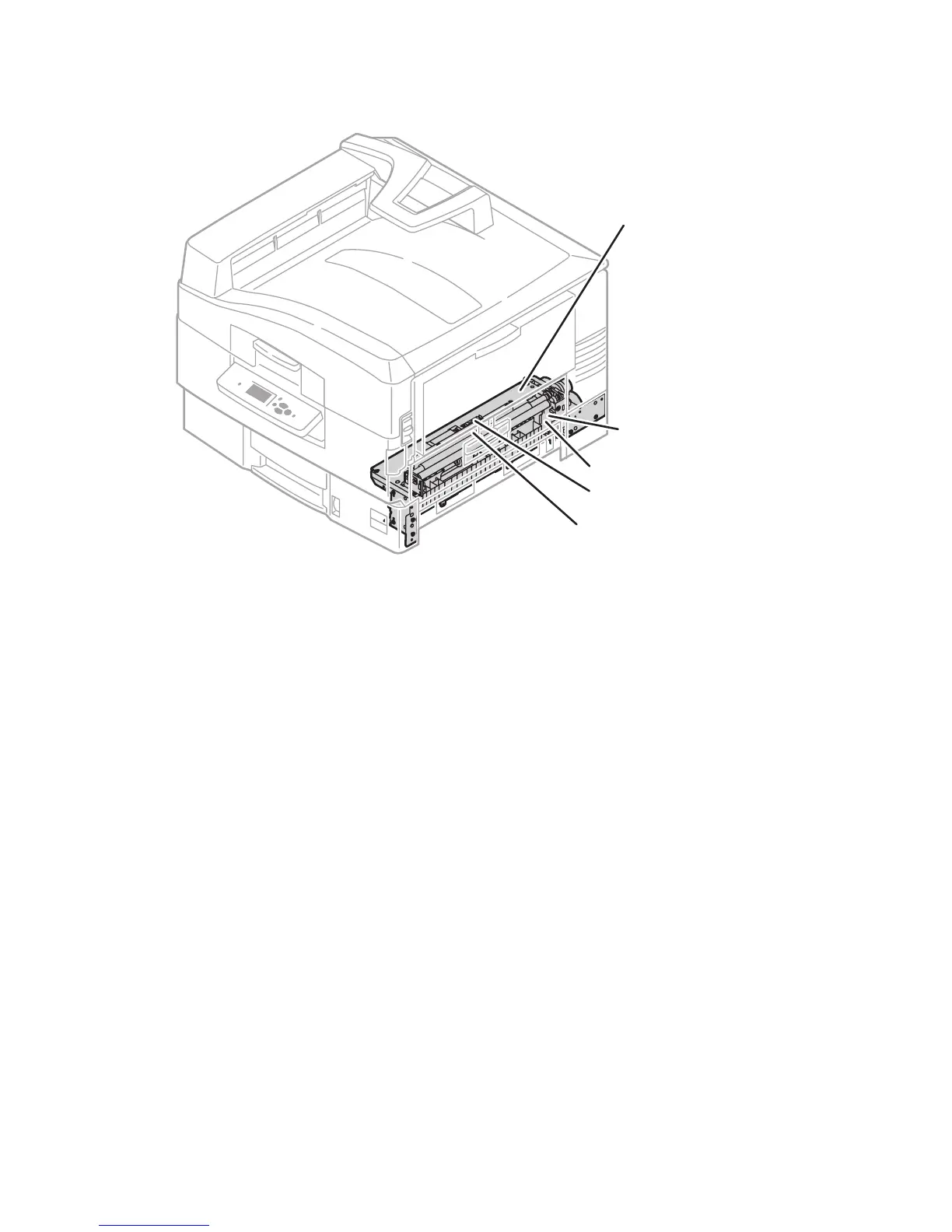

Universal Feeder
No Paper Sensor
Feed-Out Sensor
Level Sensor
Feeder Board
s7400-571

Xerox Phaser 7400 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	600 x 1200 DPI
Time to first page (black, normal)	12 s
Print speed (black, normal quality, A4/US Letter)	40 ppm
Print speed (color, normal quality, A4/US Letter)	36 ppm
Storage media	HDD
Internal memory	512 MB
Processor model	PowerPC
Maximum internal memory	1 MB
Internal storage capacity	20 GB
Total input capacity	800 sheets
Maximum input capacity	3000 sheets
Paper tray 2 input capacity	350 sheets
Auto document feeder (ADF) input capacity	1650 sheets
Maximum print size	297 x 420 mm
Paper tray media types	Envelopes, Labels, Transparencies
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Letter (media size), Statement (140 x 216mm), Legal (media size)
Maximum ISO A-series paper size	A3
Power requirements	100-240V, 50/60Hz
Networking features	Fast Ethernet
Supported media weight(s)	270 g/m²
Maximum operating temperature range (T-T)	10 - 32 °C
Certification	FCC p.15 A, CE
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-4 - 140 °F
Storage relative humidity (H-H)	10 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Maximum duty cycle	150000 pages per month

Weight and Dimensions

Dimensions (WxDxH)	1438 x 623 x 975 mm
