Xerox Phaser 7400

Service Parts Disassembly 8-59
Job Offset Motor
1. Remove the Job Offset Assembly (page 8-56).
2. Remove the 1 (black, plastic, 10 mm) that secures the Job Offset Gear Cover.
3. Release the 4 hooks that secure the Job Offset Motor mounting plate to the Job
Offset Assembly.

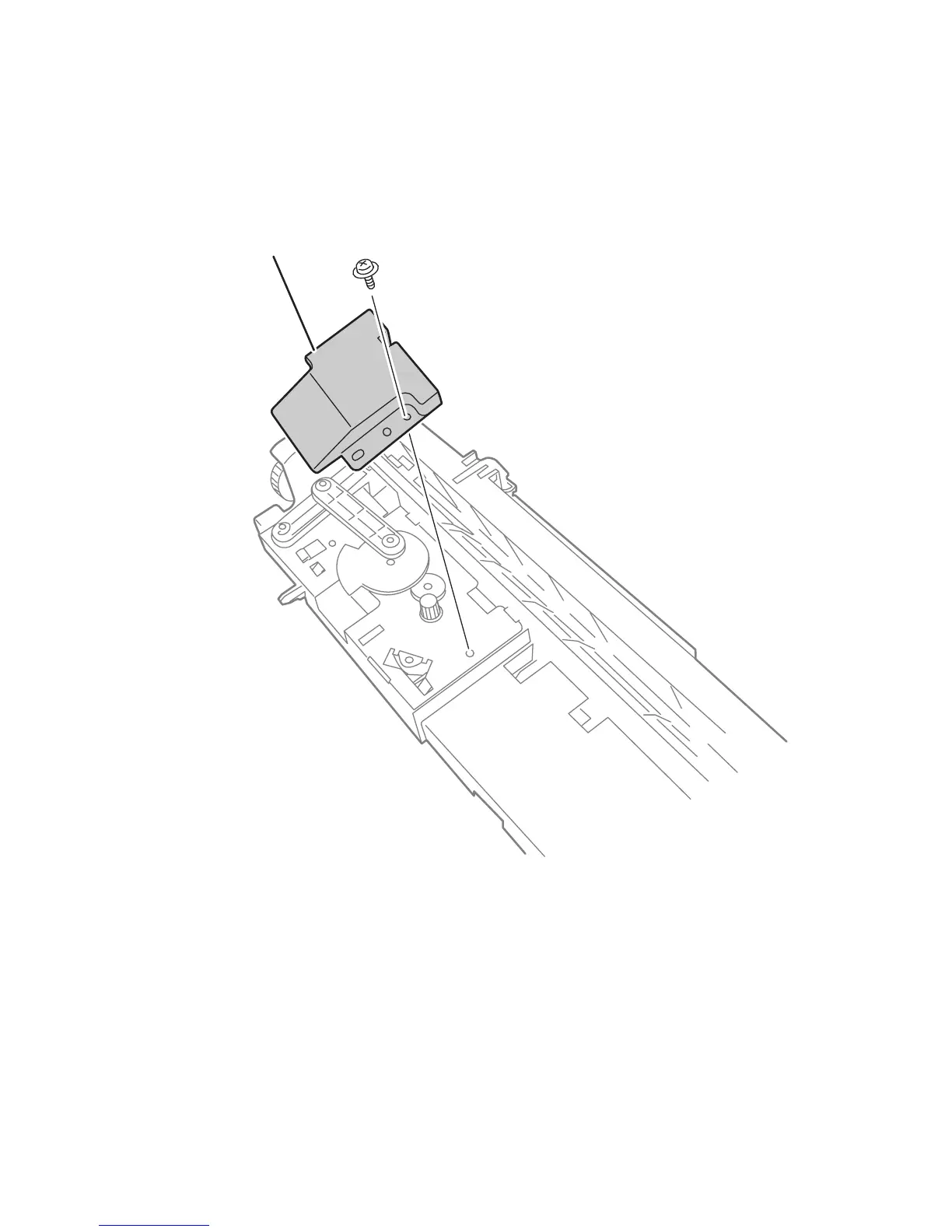

Job Offset Gear Cover
s7400-418
