Xerox Phaser 7400 Service Manual

1-2 Phaser 7400 Color Printer Service Manual
Printer Introduction and Overview
The Xerox Phaser 7400 Color Printer Service Manual is the primary document used
to repair, maintain, and troubleshoot this printer. For manual updates, Service
Bulletins, knowledge base, etc., see
www.xerox.com/office/7400support. For further
technical support, contact your assigned Xerox Technical Support for this product.
The Xerox Phaser 7400 Color Printer is a single pass, electrophotographic design,
using light emitting diodes (LED) for image exposure. The Phaser 7400 supports
PostScript 3 and PCL5c page description languages. Print performance for A4 paper
is 40 pages per minute (ppm) monochrome, 36 ppm for full color in 1-sided or
2-sided modes. Full color prints are produced via consecutively transferring the
subtractive primaries (cyan, magenta, yellow, and black) directly to paper.
Resolutions of up to 600 x 1200 dots per inch (dpi), 32-level grayscale print is
applicable at 600x600 dpi. The base configuration (Phaser 7400N) features USB 2.0
and 10/100baseT Ethernet Ports, 256 MB of memory, a 250-sheet multi-purpose
Tray
1 (MPT), a 550-sheet input tray (Tray 2), a 500-sheet facedown Top Output
Tray, and a 250-sheet faceup Side Output Tray.
Phaser 7400 printer options add memory, paper capacity and functionality. For
configurations not originally equipped, an internal Hard Drive is available for font
storage, storing print files, job collation, proof, personal, and secure print support. A
selection of RAM memory upgrades are available to raise the installed quantity to the
1 GB maximum. A 1650-Sheet High-Capacity Feeder (HCF) is available with three,
550-sheet universal trays. A 550-Sheet Feeder (Tray 3) Lower Tray Assembly (LTA)
is also available. On the output side, a 1000-Sheet Finisher provides punching,
stapling, saddle stitch, and offset stacking raising the output total to 1750 sheets. A
Duplex Unit is available to add automatic 2-sided printing for supported paper sizes
from all trays.

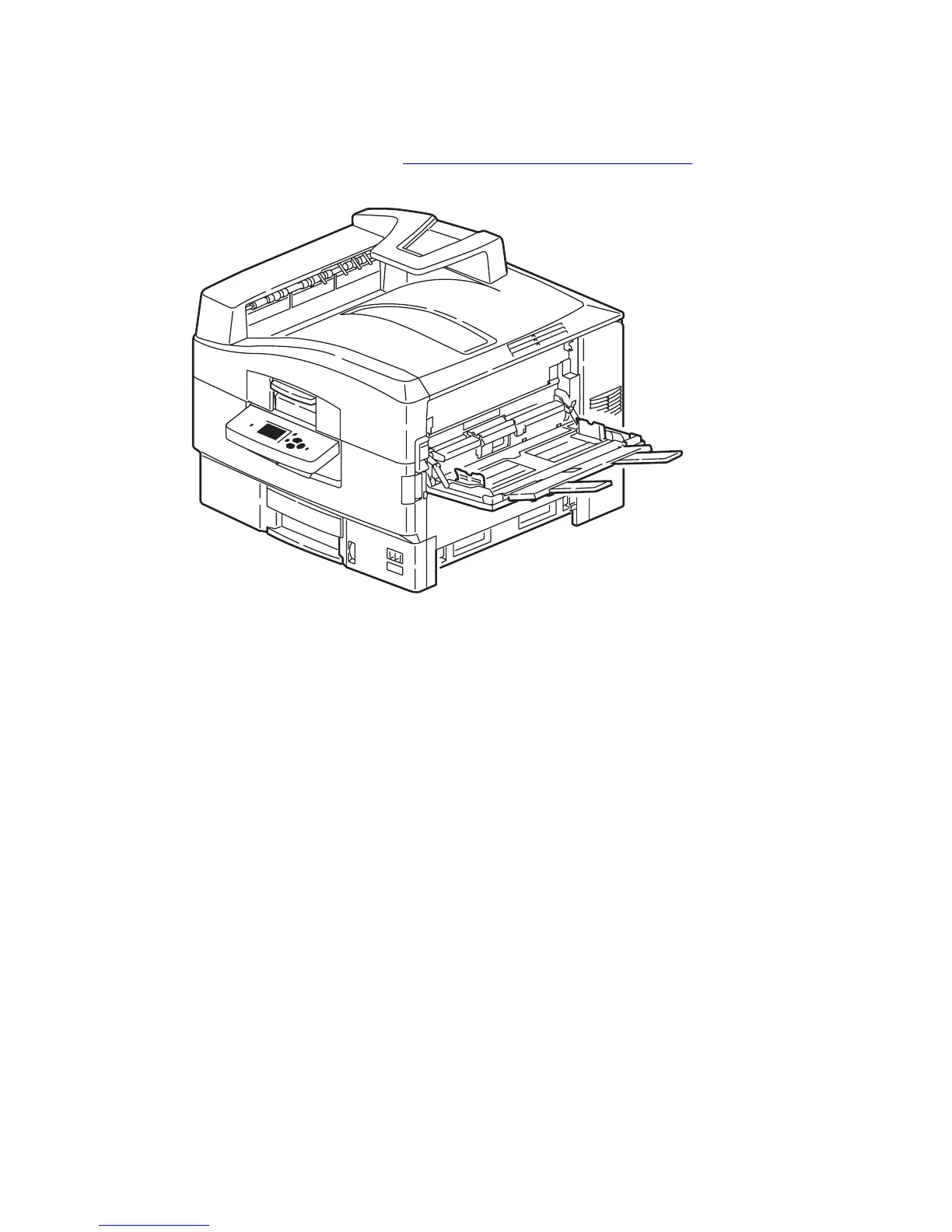

s7400-301

Xerox Phaser 7400 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	600 x 1200 DPI
Time to first page (black, normal)	12 s
Print speed (black, normal quality, A4/US Letter)	40 ppm
Print speed (color, normal quality, A4/US Letter)	36 ppm
Storage media	HDD
Internal memory	512 MB
Processor model	PowerPC
Maximum internal memory	1 MB
Internal storage capacity	20 GB
Total input capacity	800 sheets
Maximum input capacity	3000 sheets
Paper tray 2 input capacity	350 sheets
Auto document feeder (ADF) input capacity	1650 sheets
Maximum print size	297 x 420 mm
Paper tray media types	Envelopes, Labels, Transparencies
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Letter (media size), Statement (140 x 216mm), Legal (media size)
Maximum ISO A-series paper size	A3
Power requirements	100-240V, 50/60Hz
Networking features	Fast Ethernet
Supported media weight(s)	270 g/m²
Maximum operating temperature range (T-T)	10 - 32 °C
Certification	FCC p.15 A, CE
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-4 - 140 °F
Storage relative humidity (H-H)	10 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Maximum duty cycle	150000 pages per month

Weight and Dimensions

Dimensions (WxDxH)	1438 x 623 x 975 mm
