8-132 Phaser 7400 Color Printer Service Manual
Door A Interlock Switch
An actuator mounted on the Door A Latch Assembly penetrates the frame to activate
a microswitch mounted above the Card Cage Fan.
1. Remove the Card Cage Fan Duct (page 8-114).
2. Disconnect the MPTCOV connector from the Motor Driver Board.
3. Remove 1 screw that secures the microswitch to the frame.
Replacement Note
Verify that the actuator properly closes the switch when Door A is closed.

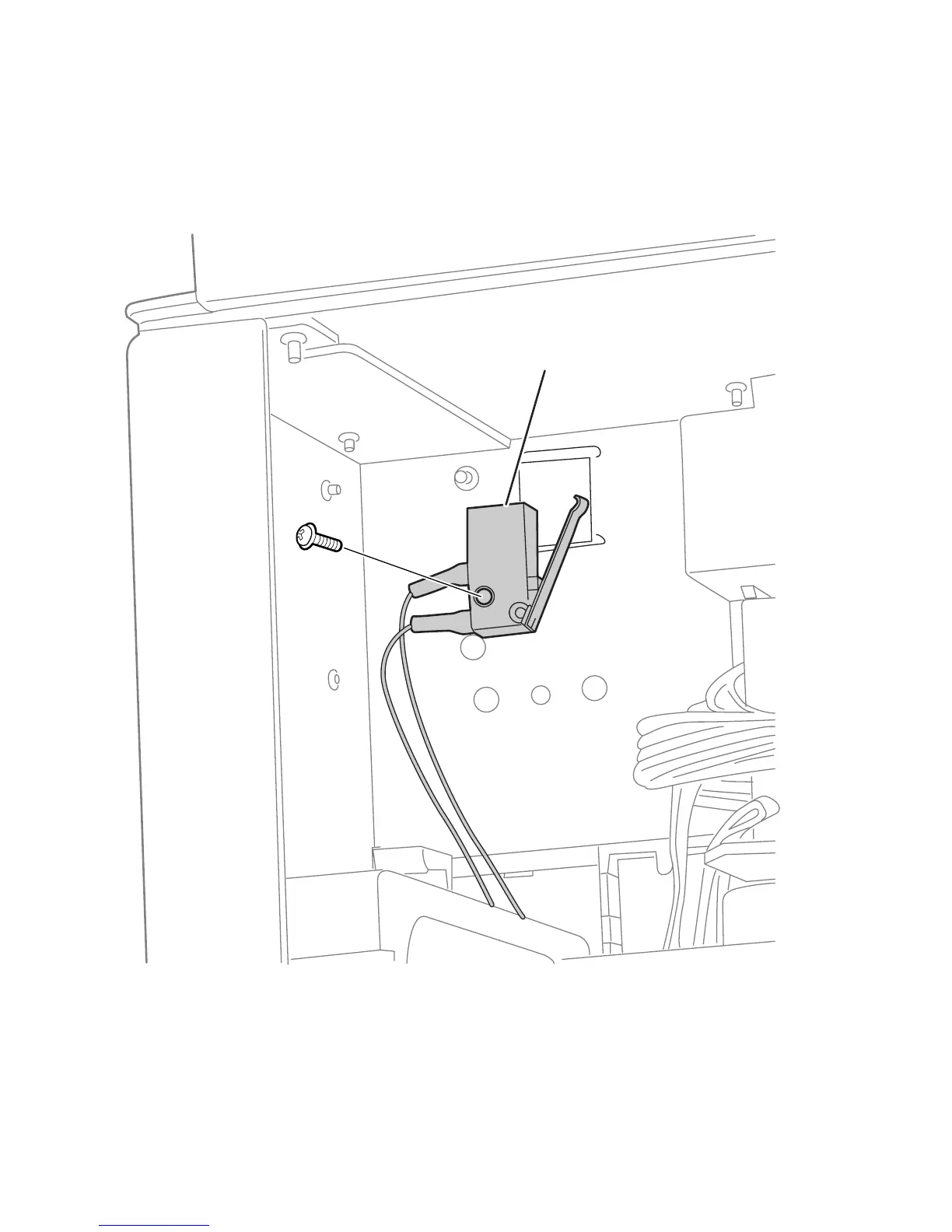

s7400-574
Door A Interlock Switch
