Registration Sensor #2
1. Remove the Tray 2 Feeder (page 8-38).
2. Remove the Registration Clutch #2 (page 8-42).
3. Remove the Feeder Board Cover.

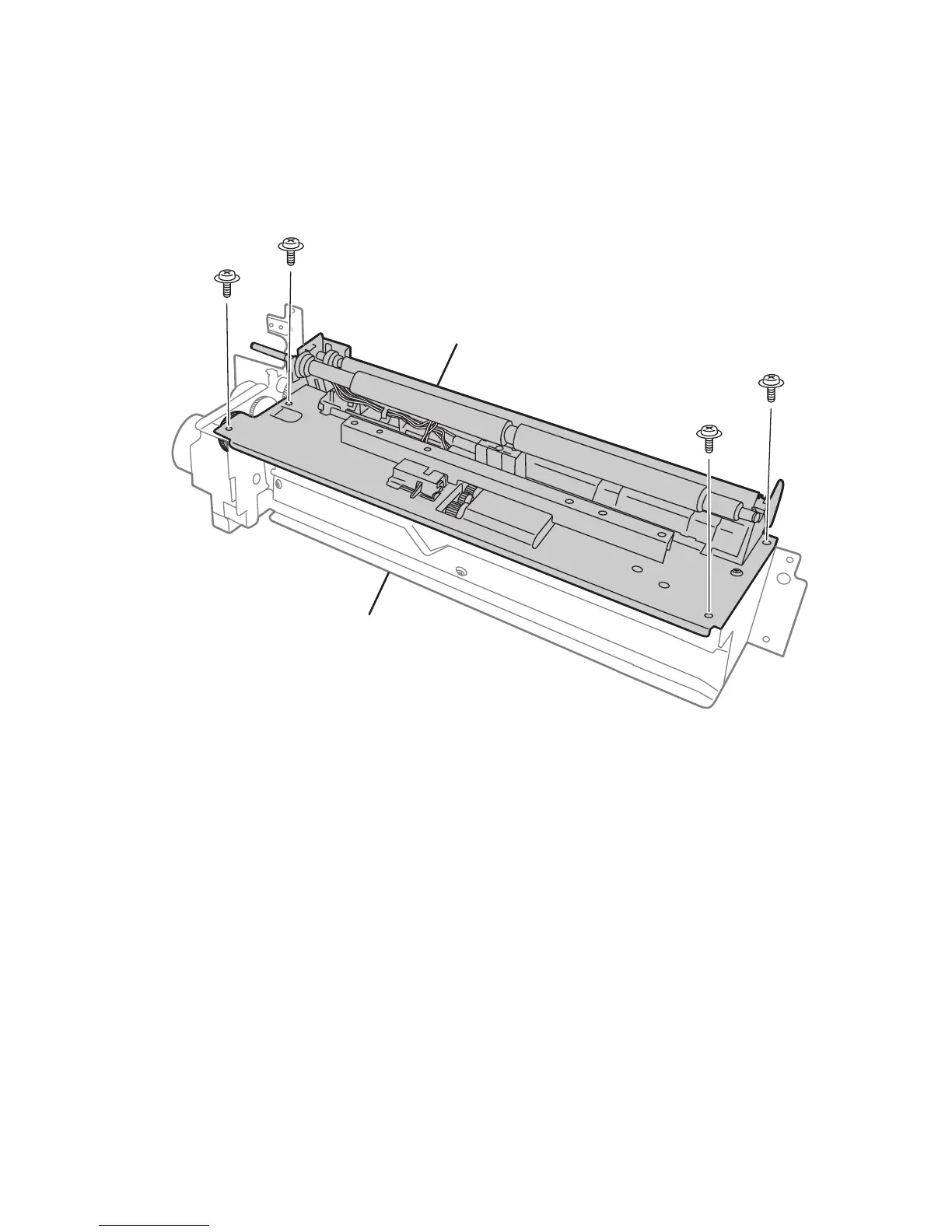

4. Remove 4 (metal, 6 mm) screws that secure the feeder top.
Feeder Top
Feeder Assembly
