Xerox Phaser 7400 Service Manual

Theory of Operation 2-37
Output Paper Path
The Phaser 7400 paper path for paper exiting the Fuser are:
■ Directed by the Exit Gate to the Top Output Tray on the Top Cover (facedown).
■ Directed by the Exit Gate to the Side Output Tray or Finisher.
■ Directed by the Exit Gate and Duplex Gate into the Duplex Unit.

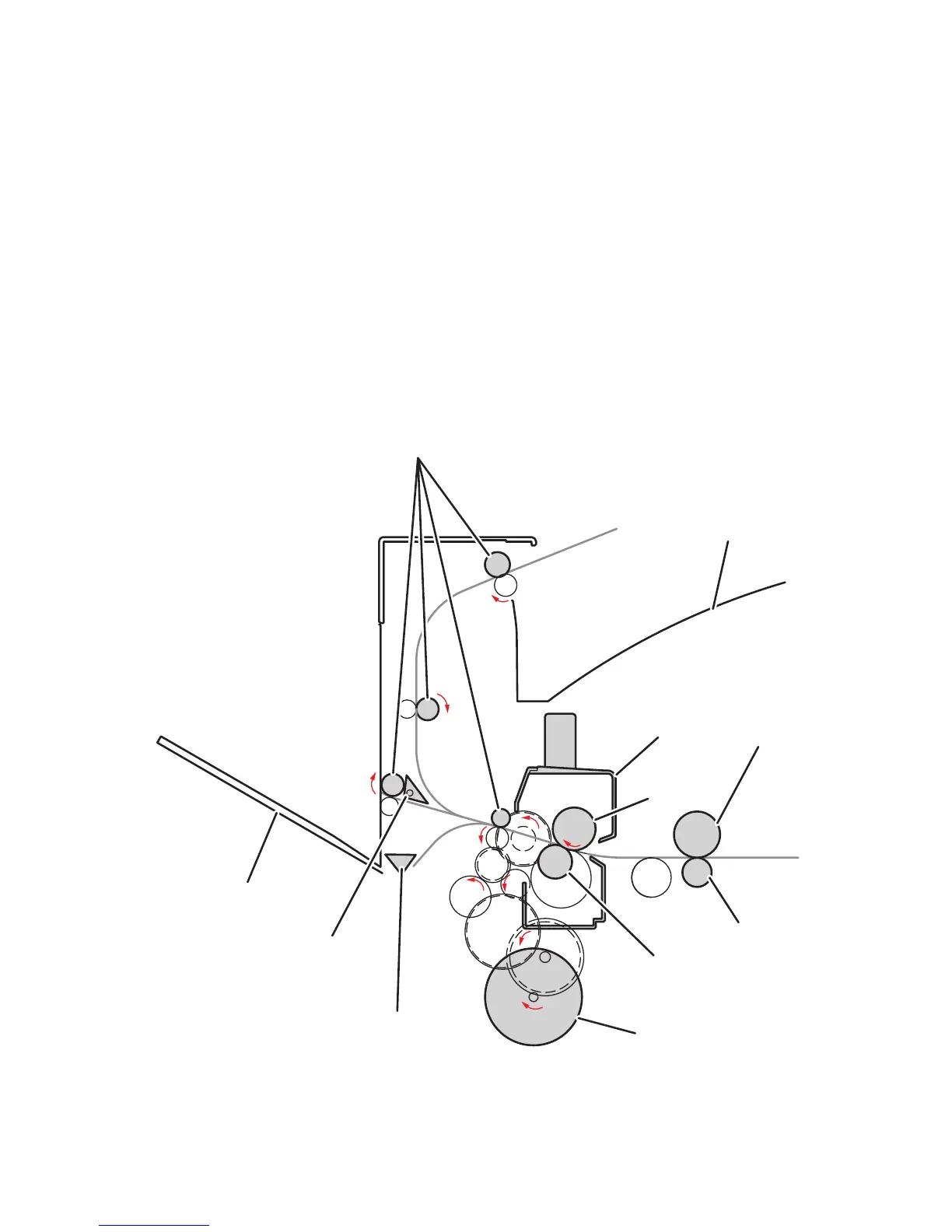

Fuser and Exit
The Fuser and Exit Rollers are driven by the Fuser Motor. The Exit Rollers rotate in
the direction of the arrows. The discharge path is determined by the position of Exit
Gate and Duplex Gate.
a
Exit Rollers
Fuser Motor
Fuser
Heat Roller
Imaging Unit
Drum (C)
Top Output Tray
Exit Gate
Duplex Gate
Side Output Tray
s7400-033
Transfer Roller
Pressure Roller
