8-118 Phaser 7400 Color Printer Service Manual
HVPS Cover
Caution
Use care when removing the HVPS Cover. The four ribs across the top of the
cover are covers for the Transfer Roller conductors. These covers are secured by
2 hooks at their center and are easily broken by flexing the HVPS Cover during
removal.
1. Open the Top Cover.
2. Remove the Transfer Unit (page 8-10), if installed.
3. Remove 2 (metal, 6 and 10 mm) screws securing the HVPS Cover and remove.
4. Release 3 tabs at the back of the cover, and then lift the cover while sliding it
towards the rear to remove.
Replacement Note
Use care not to pinch wiring underneath the 6 mm screw when replacing the
cover.

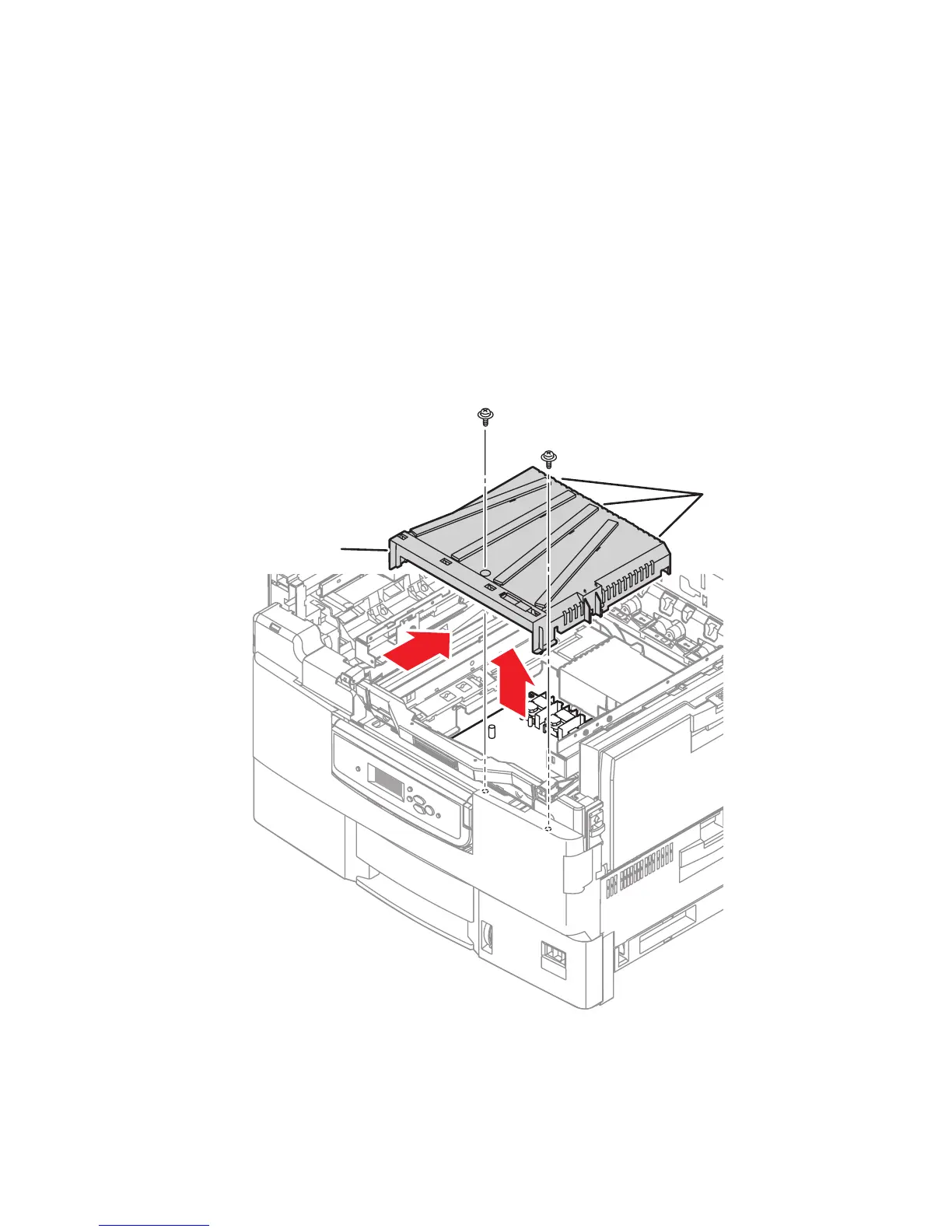

Tabs
s7400-404
HVPS Cover Assembly
10mm Screw
6mm Screw
