Xerox Phaser 7400

Service Parts Disassembly 8-133
Imaging Unit Fan
1. Open the Top Cover.
2. Open the Front Door.
3. Remove the Left Front Cover (page 8-21).
4. Remove the 2 (metal, 20 mm) screws that secure the fan to the frame.
5. Gently pull the fan downward to remove it from the frame.
6. Disconnect the fan from the harness (P/J100).

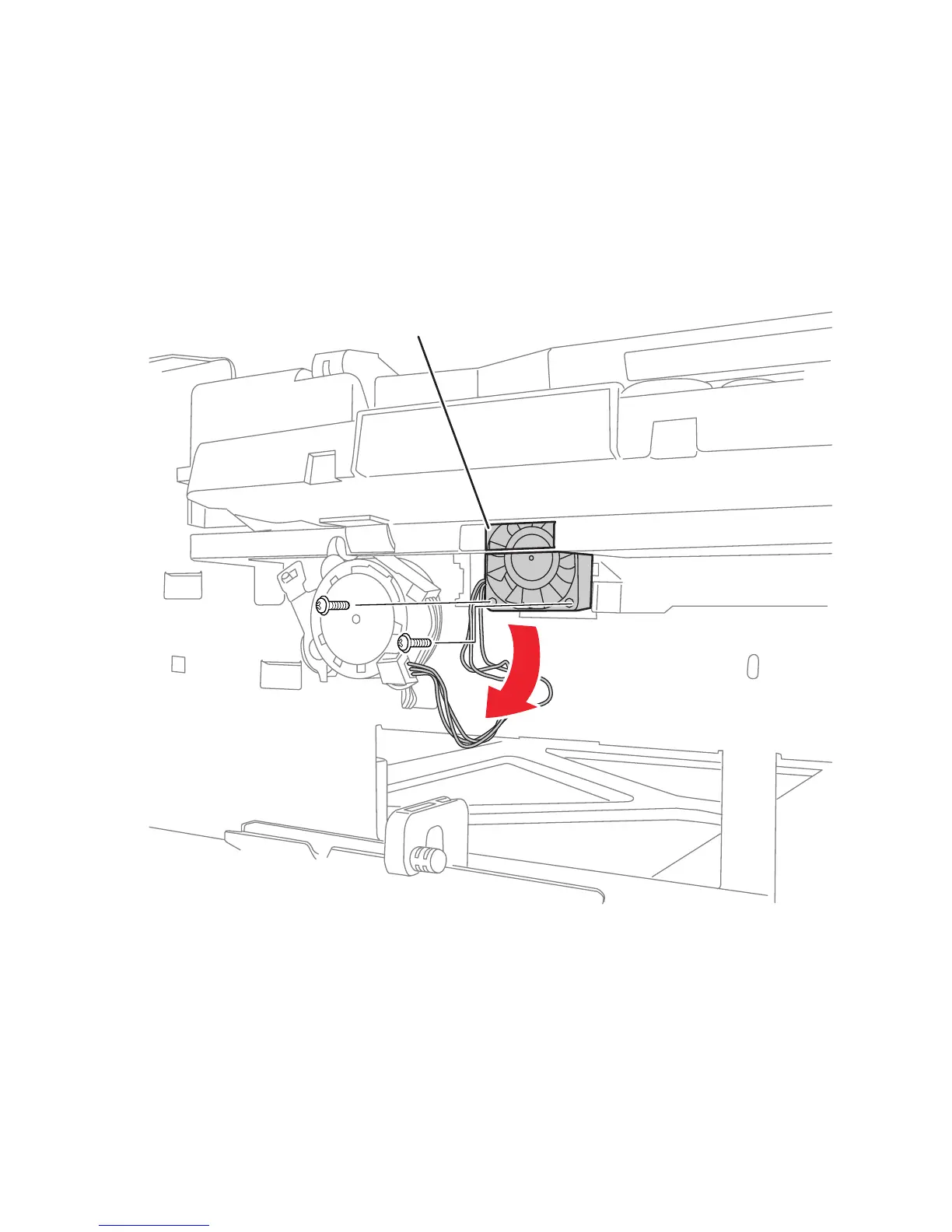

s7400-517
Front Imaging Unit Fan
