Service Parts Disassembly 8-103
Drive

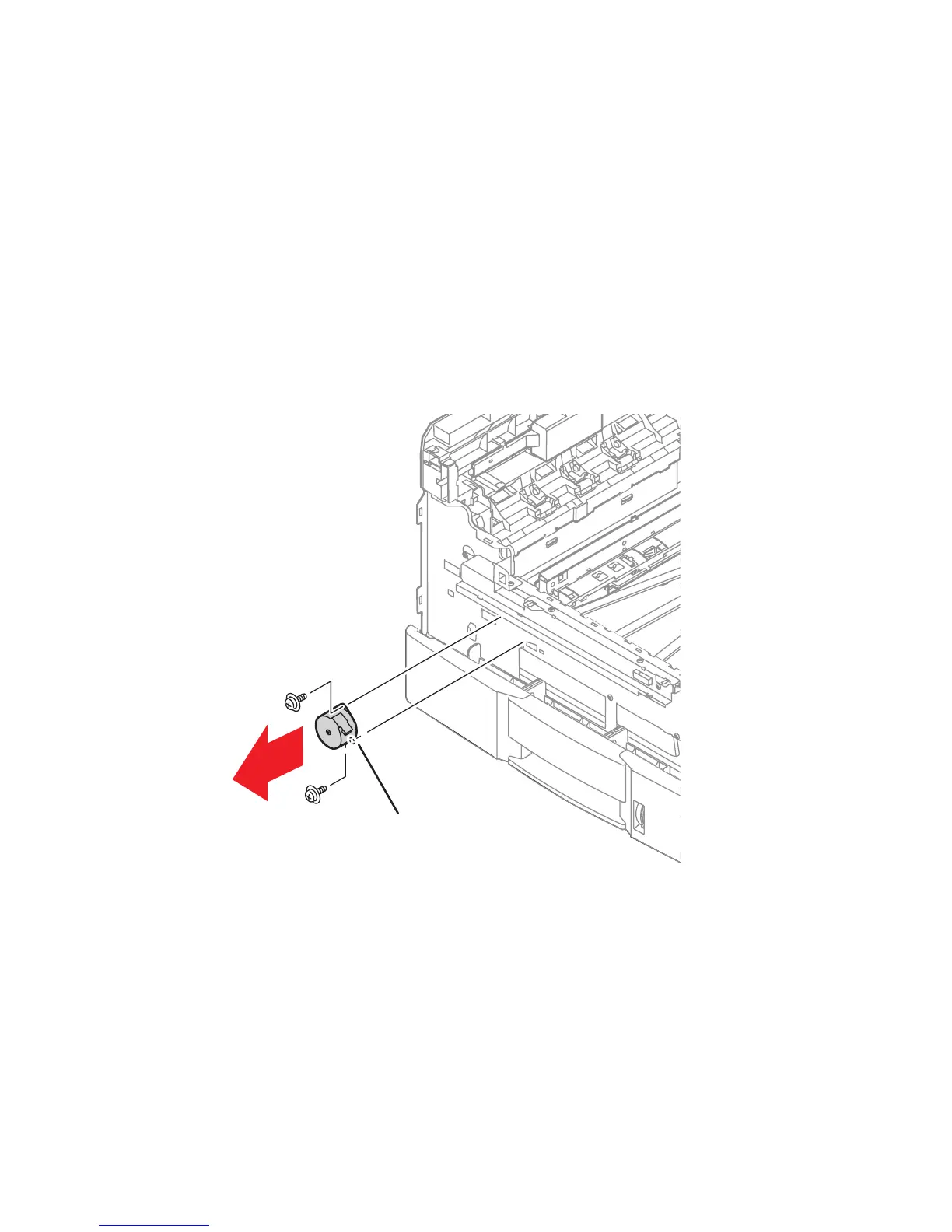

Transfer Unit Motor
1. Open the Top Cover.
2. Remove the Front Door (page 8-18).
3. Remove the Waste Toner Reservoir, if installed.
4. Remove the Left Front Cover (page 8-21).
5. Position the Control Panel parallel to the floor.
6. Disconnect the motor connector (P/J120).
7. Remove the 2 (metal, 6 mm) screws securing the motor.
s7400-360
Transfer Unit Motor
