Service Parts Disassembly 8-119

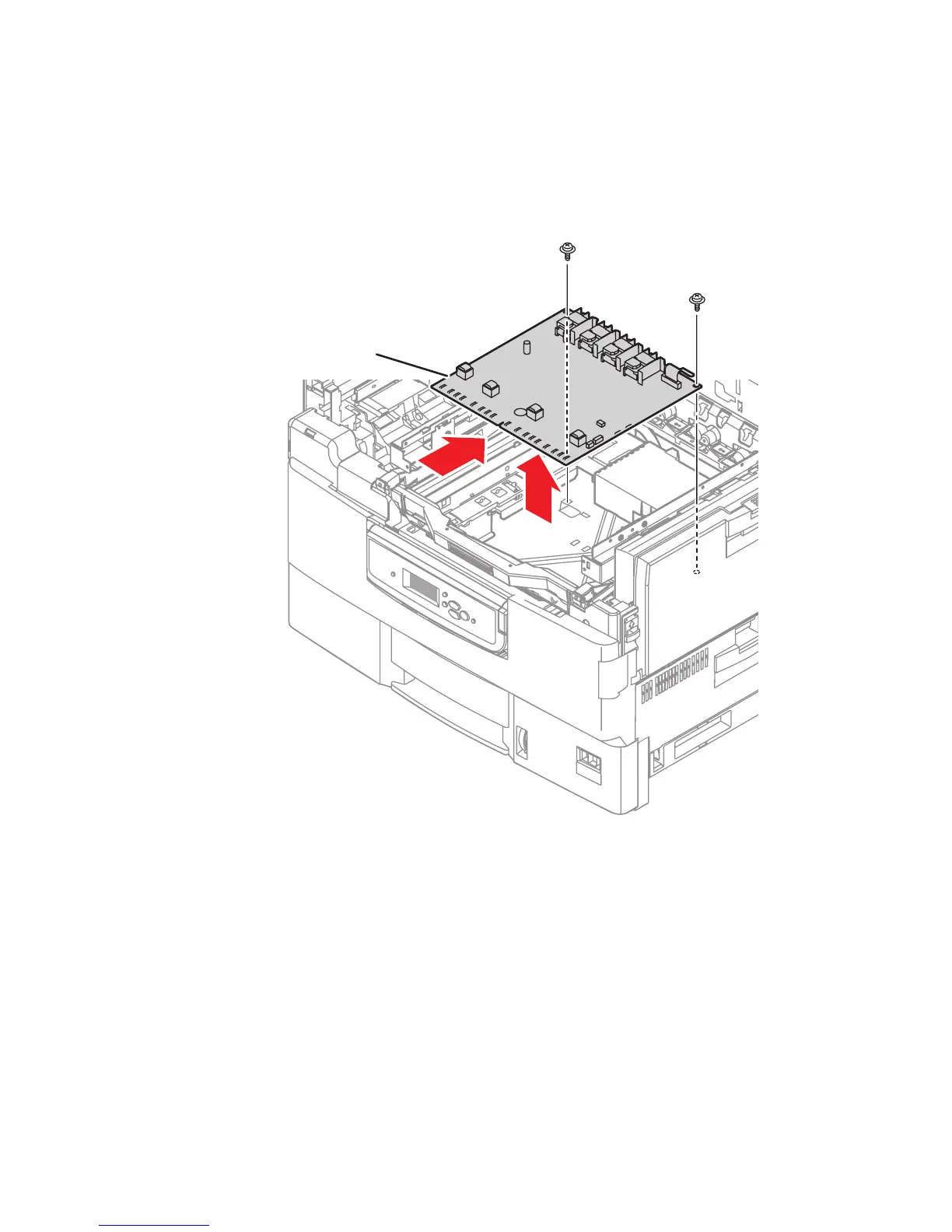

High Voltage Power Supply
1. Remove the HVPS Cover (page 8-118).
2. Disconnect 4 connectors (CN1, CN3, CN2, CN4) from the HVPS.
3. Remove 2 (metal, 6 mm) screws and carefully slide the board to the rear to clear
the Housing Bias Assembly.
s7400-405
HVPS
To Next Page
