Xerox Phaser 7400 Service Manual

Service Parts Disassembly 8-67
Temperature/Humidity Sensor
1. Open the Top Cover.
2. Open the Basket Assembly.
3. Remove the Media Thickness Sensor cover by lifting the front tab slightly and
pushing the cover to the rear.
4. Disconnect the Media Thickness Sensor connector (P/J410).
5. Pull the Temp/Humidity Sensor cover towards the front to release the two hooks.
6. Remove 1 (black, plastic 10 mm) screw that secures the sensor to the cover.
7. Disconnect the Temperature/Humidity Sensor connector (P/J420).

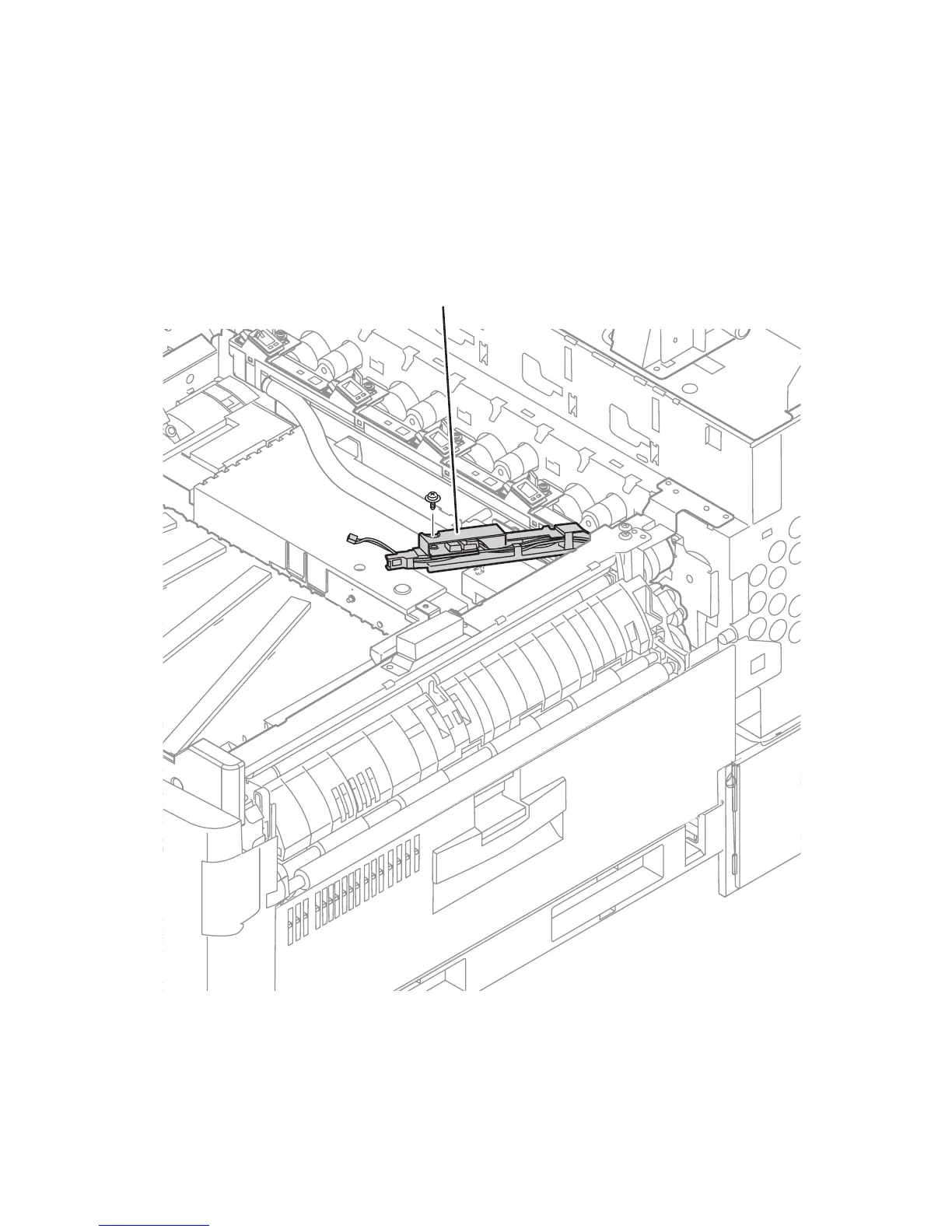

s7400-422
Temperature/Humidity Sensor Cover
