Xerox Phaser 7400

8-18 Phaser 7400 Color Printer Service Manual
Front Door
1. Remove 2 (metal, 6 mm) screws securing the Front Door Stopper Straps to the
printer.
2. With the Front Door perpendicular to the front of the printer, slide the Front Door
to the right to disengage the pivot pins and remove the Front Door.

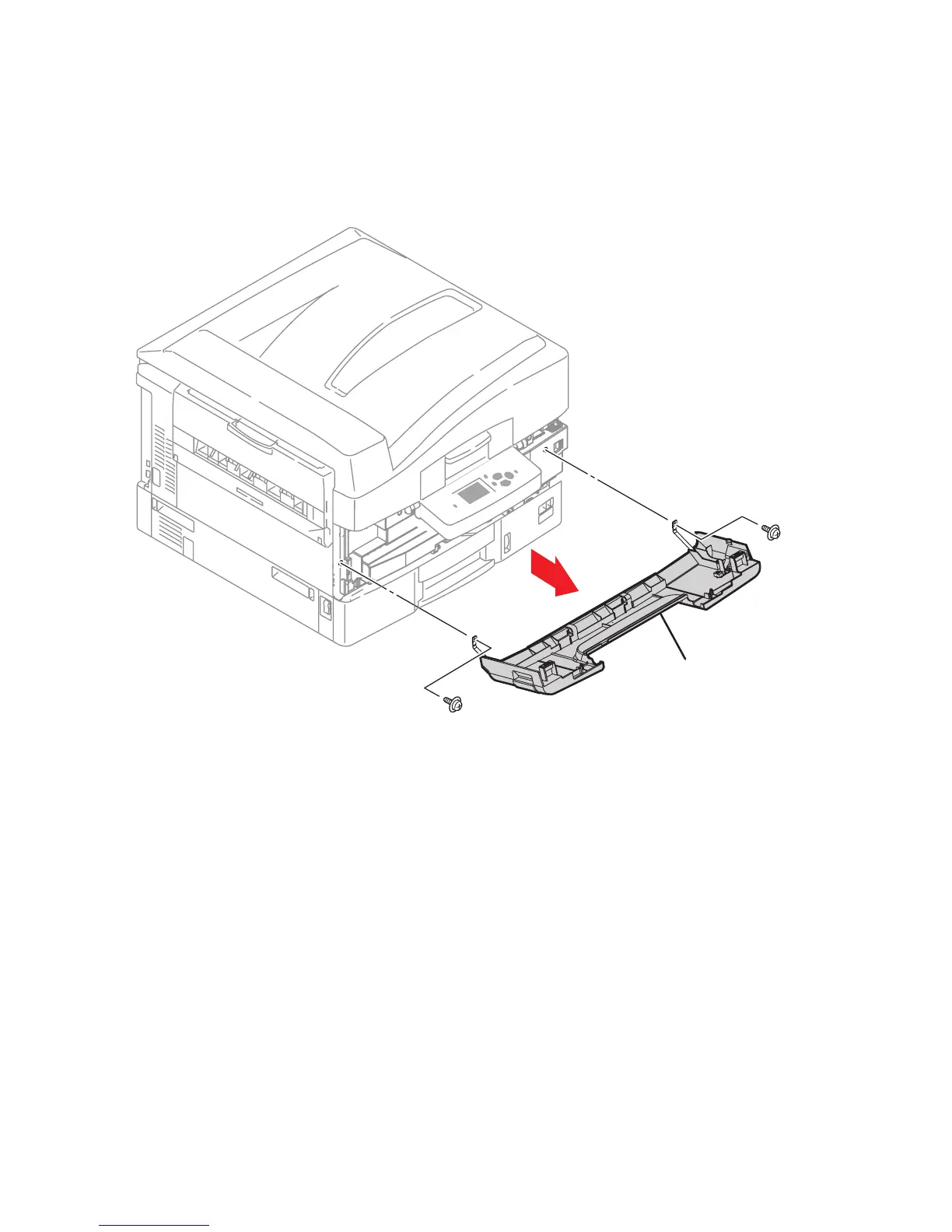

s7400-181
Front Door
