Service Parts Disassembly 8-81
Registration Shutter Solenoid

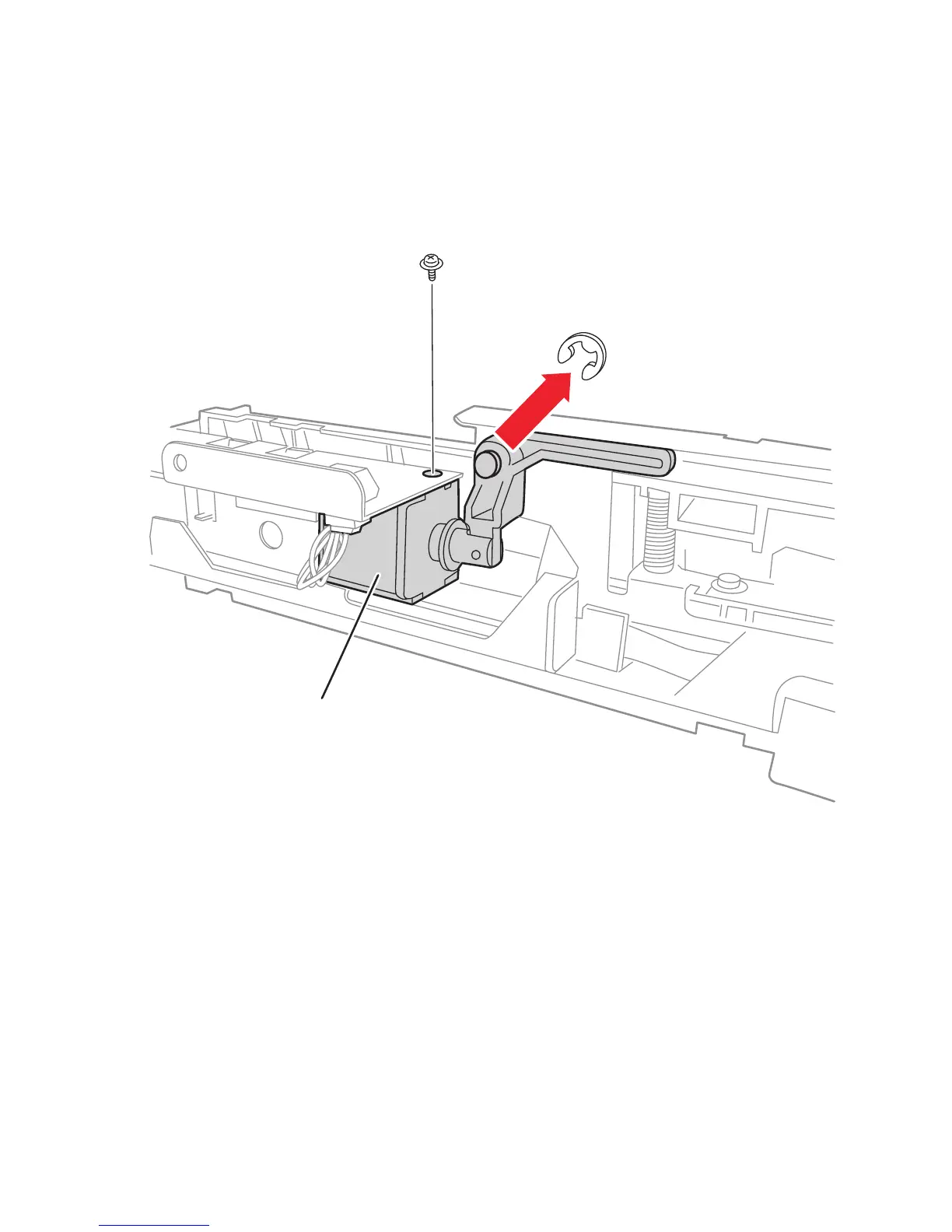

1. Remove the Registration Sensor Assembly (page 8-80).
2. Remove the E-clip that secures the Registration Shutter linkage to the assembly.
3. Disconnect the Registration Shutter Solenoid connector (P/J80).
4. Remove 1 (metal, 6 mm) screw, with washer, securing the Registration Shutter
Solenoid to the assembly.
s7400-43
Registration Shutter Solenoid
