Xerox Phaser 7400 Service Manual

8-22 Phaser 7400 Color Printer Service Manual
Upper Front Cover
1. Open the Top Cover.
2. Raise the Basket Assembly.
3. Open the Front Door and lower the Control Panel completely.
4. Remove 2 (metal, 10 mm) screws securing the Left Front Cover.
5. Remove 3 (metal, 6 mm) screws securing the Upper Front Cover.
6. Unlock the Fuser, if installed, and remove the Upper Front Cover from the
printer.
Replacement Note
Replace the Upper Front Cover starting at the right hand side. Work the
lower edge of the cover behind the Control Panel to align the screw holes
with those in the frame.

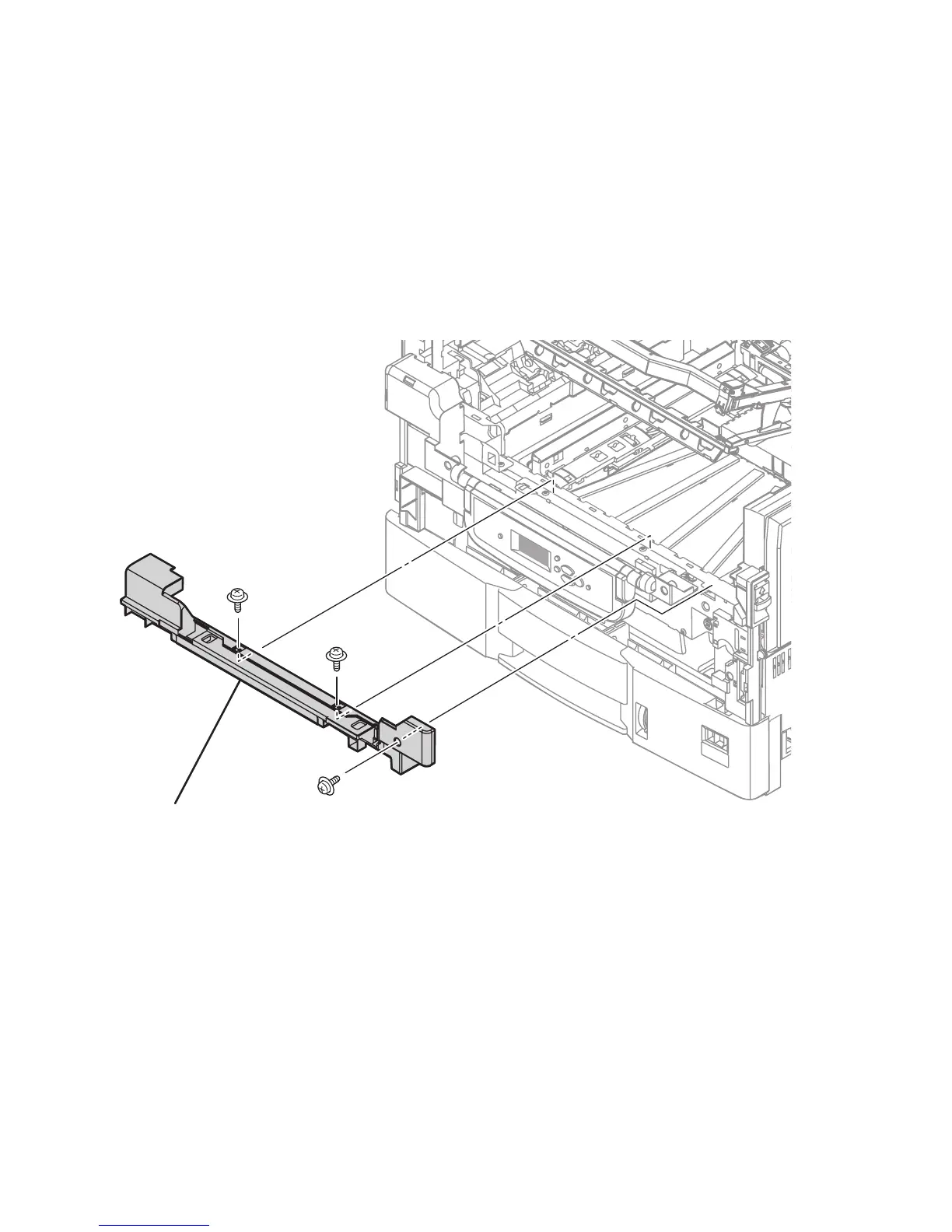

Upper Front Cover
s7400-183
