Service Parts Disassembly 8-79
Fuser Release Sensor
1. Remove the Duplex Unit.
2. Release the 3 hooks that secure the sensor to the frame.
3. Disconnect the Fuser Release Sensor connector (P/J190).

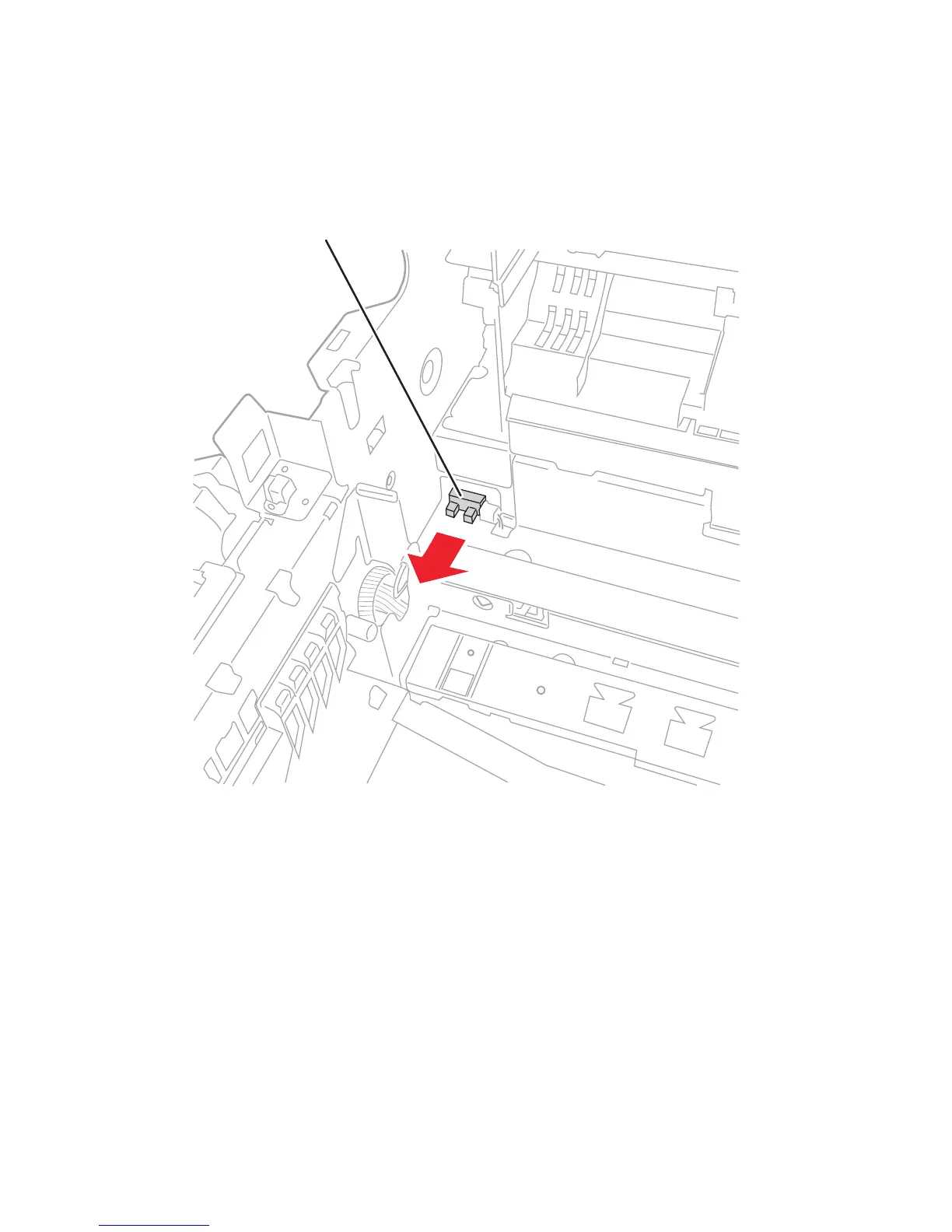

Fuser Release Sensor
s7400-557
