Xerox Phaser 7400

Service Parts Disassembly 8-55
Side Output Tray
1. Open the Top Cover.
2. Remove the Left Front Cover (page 8-21).
3. Release the Stopper Links from the printer frame.
4. Release the tray from the 2 posts by flexing the tray right to clear the left post and
slide left to remove.

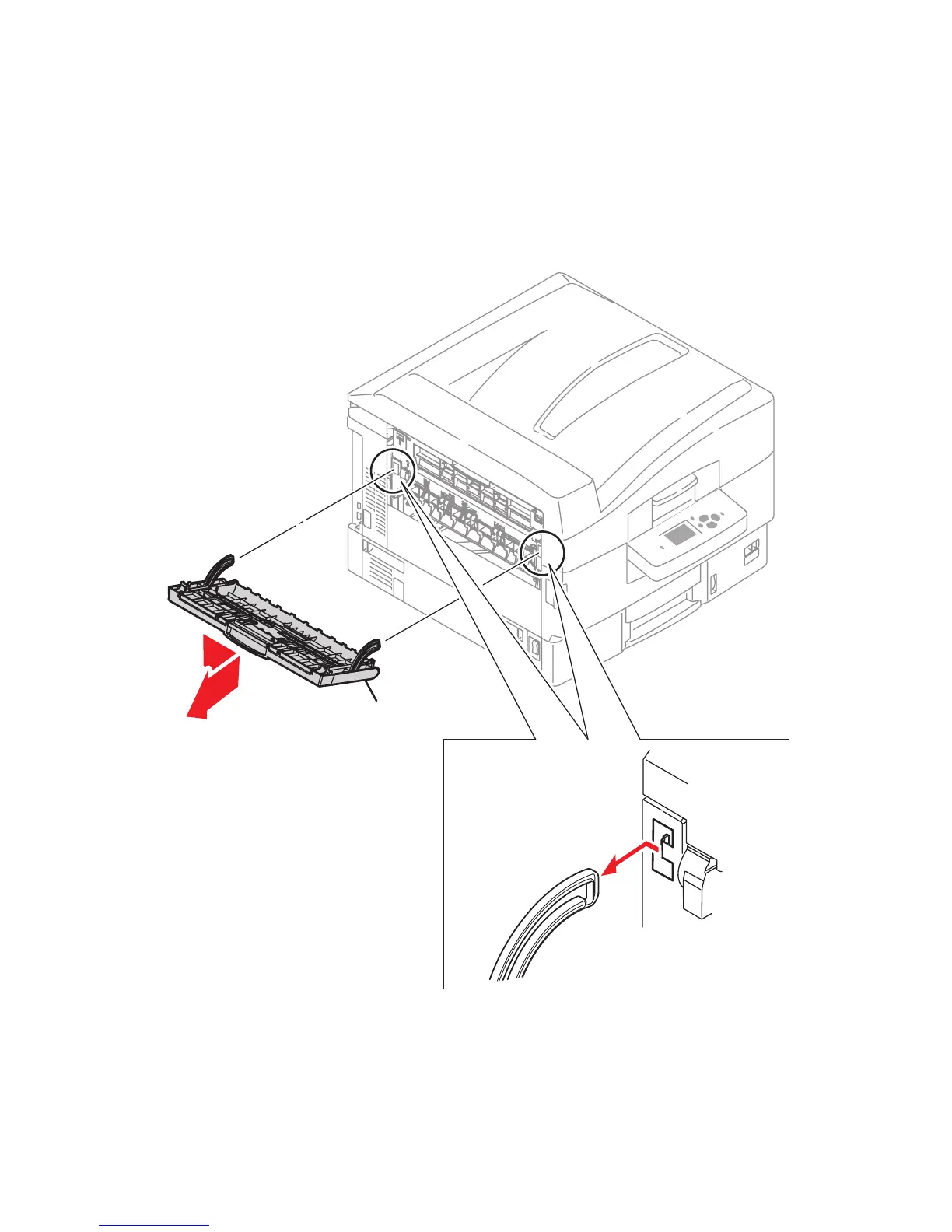

Side Output Tray
s7400-060
