8-30 Phaser 7400 Color Printer Service Manual
Tray 1 (MPT) Home Position Sensor
1. Remove the Registration Assembly (page 8-84).
2. Release 2 hooks that secure the gear cover to the back of the Registration
Assembly.
3. Release the 3 hooks that secure the sensor to the Registration Assembly, and then
push the sensor through the opening to the back of the assembly.
4. Disconnect the sensor from the harness (P/J430).

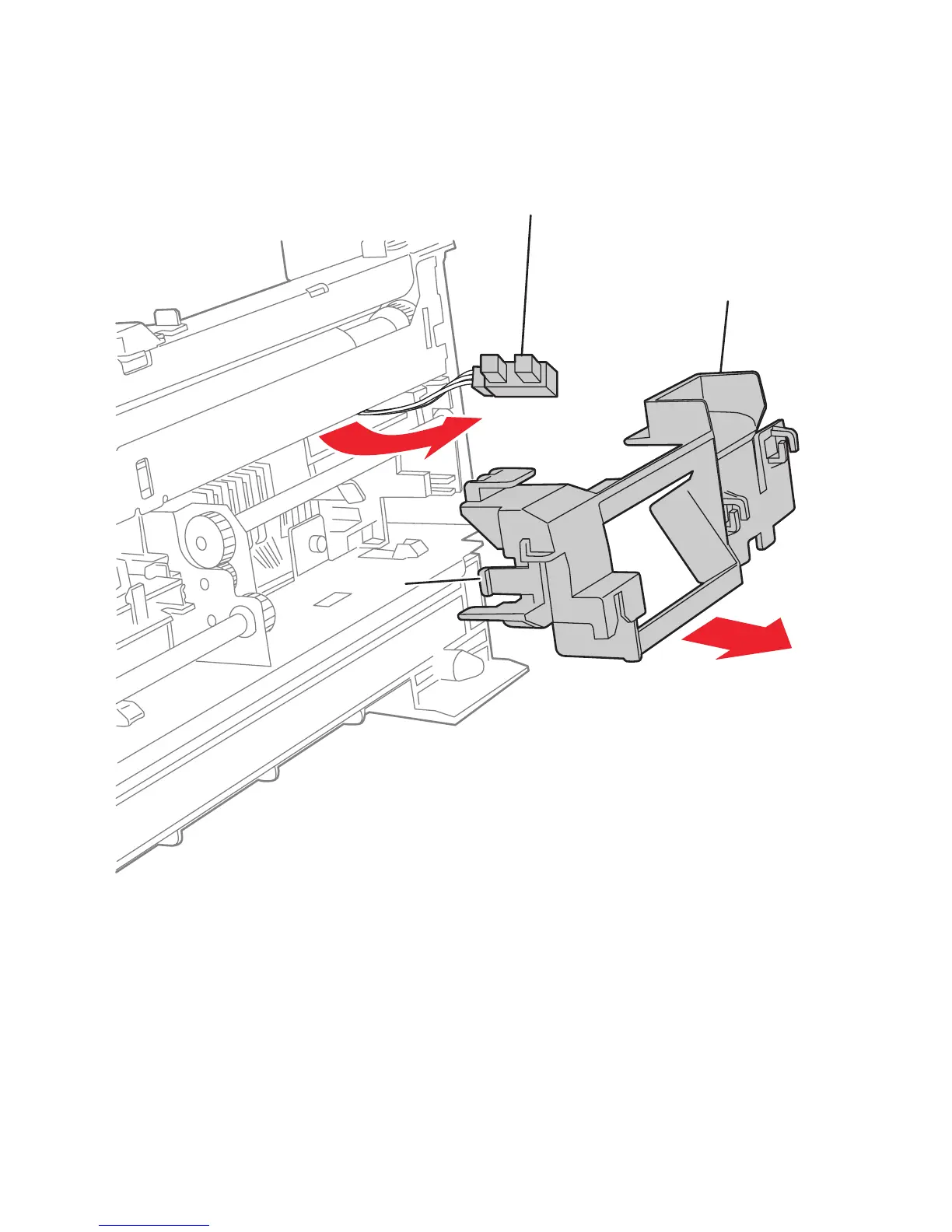

s7400-538
Gear Cover
MPT Home Position Sensor
Hook
