Xerox Phaser 7400

8-86 Phaser 7400 Color Printer Service Manual
Waste Toner Auger Assembly
1. Remove the Waste Toner Reservoir if installed.
2. Remove the Duplex Unit.
3. Release 4 hooks that secure the Waste Toner Motor Cover.
4. Release 1 hook and slide the Auger Tube Guide to the left to release the 1 tab on
the right.
5. Remove 4 (black, plastic 6 mm) screws connecting the Waste Toner Manifold to
the Basket Assembly.

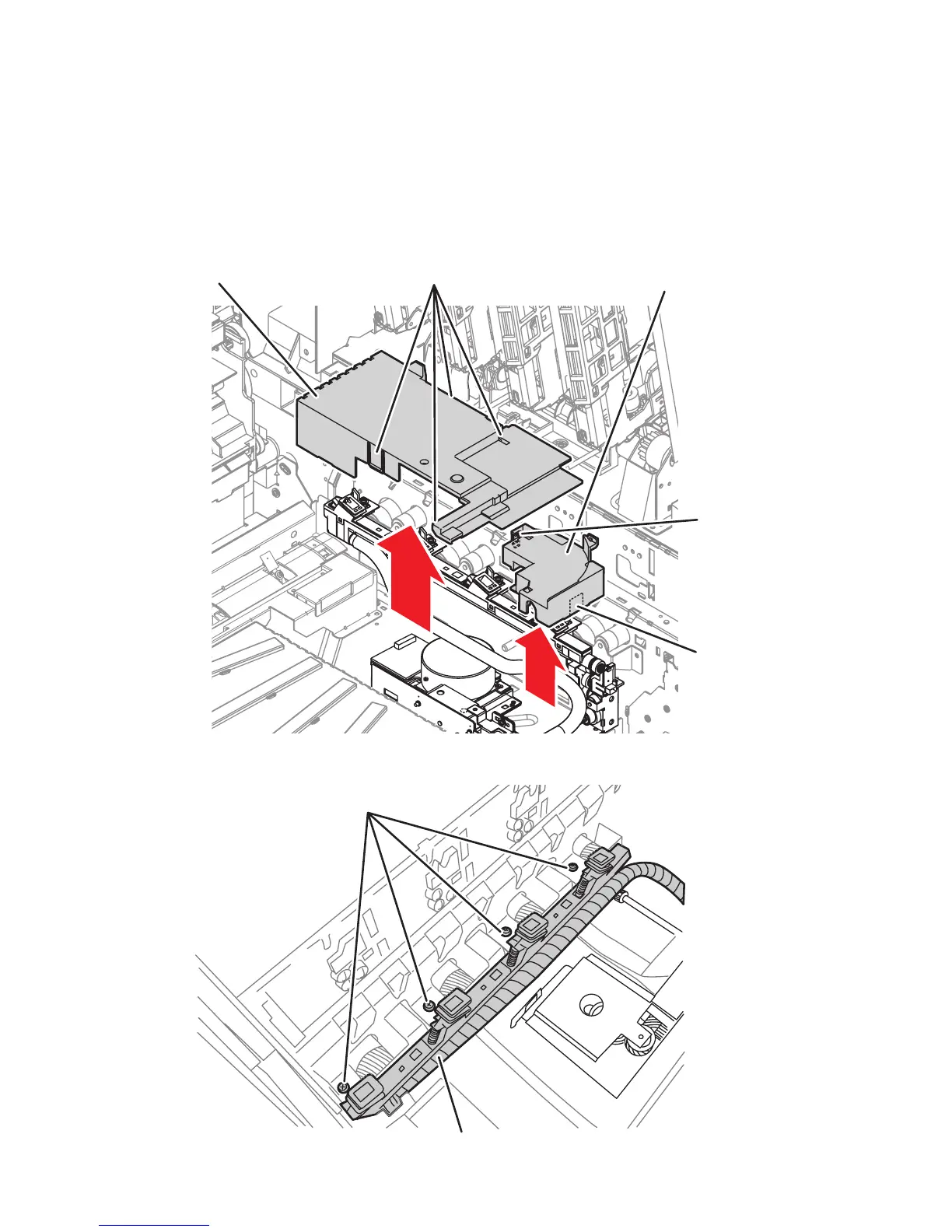

Waste Toner Motor Cover
Auger Tube Guide
Hooks
Hook
Tab
s7400-449
Screws
Manifold and Tube
