Xerox Phaser 7400 Service Manual

Service Parts Disassembly 8-33
Tray 1 (MPT) No Paper Sensor
Note
A non-captive spring is installed in the Rear Chute to tension the Retard Roller.
1. Remove Tray 1 (MPT)
2. Open the tray assembly and depress the lift plate to remove 1 (black, 10 mm)
screw at the center.
3. Remove 2 (black, plastic 10 mm) screws that secure the Rear Chute to the
Tray 1 (MPT).
4. Separate the Rear Chute from the assembly.
5. Release the hooks that secure the sensor to the Rear Chute.
6. Disconnect the sensor connector (P/J460).
Replacement Note
Insert the spring underneath the Retard Roller before installing the Rear
Chute. Make sure the lift levers are above the Lift Plate.

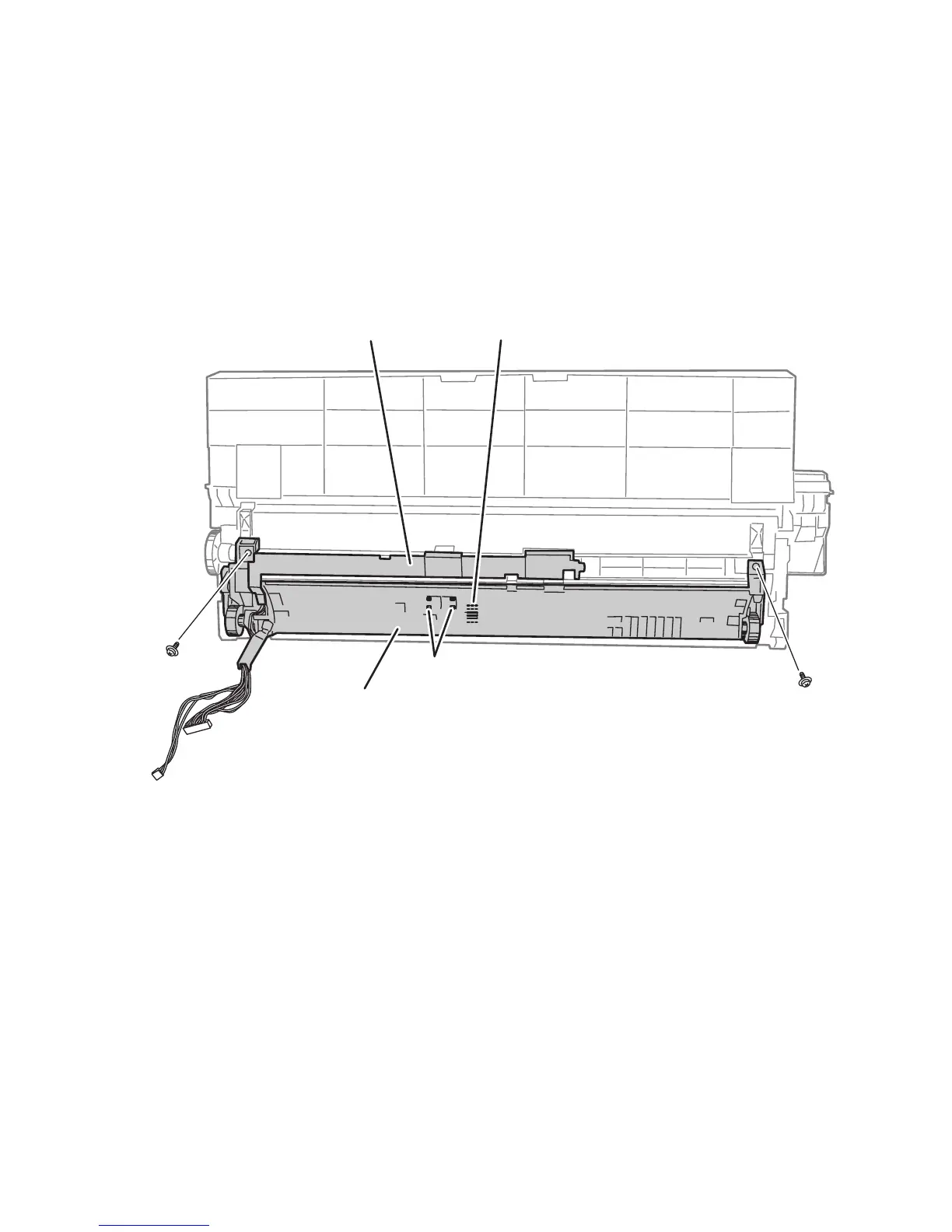

s7400-426
Tray 1 (MPT) Rear Chute
Sensor Hooks
Sensor Cover
Retard Roller Spring Location

Xerox Phaser 7400 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	600 x 1200 DPI
Time to first page (black, normal)	12 s
Print speed (black, normal quality, A4/US Letter)	40 ppm
Print speed (color, normal quality, A4/US Letter)	36 ppm
Storage media	HDD
Internal memory	512 MB
Processor model	PowerPC
Maximum internal memory	1 MB
Internal storage capacity	20 GB
Total input capacity	800 sheets
Maximum input capacity	3000 sheets
Paper tray 2 input capacity	350 sheets
Auto document feeder (ADF) input capacity	1650 sheets
Maximum print size	297 x 420 mm
Paper tray media types	Envelopes, Labels, Transparencies
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Letter (media size), Statement (140 x 216mm), Legal (media size)
Maximum ISO A-series paper size	A3
Power requirements	100-240V, 50/60Hz
Networking features	Fast Ethernet
Supported media weight(s)	270 g/m²
Maximum operating temperature range (T-T)	10 - 32 °C
Certification	FCC p.15 A, CE
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-4 - 140 °F
Storage relative humidity (H-H)	10 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Maximum duty cycle	150000 pages per month

Weight and Dimensions

Dimensions (WxDxH)	1438 x 623 x 975 mm
