8-34 Phaser 7400 Color Printer Service Manual
Tray 1 (MPT) Feed Rollers
1. Partially open Tray 1 (MPT).
2. Rotate the 2 levers 90 degrees to unlock the Feed Roller Assembly linkage from
the Tray 1 (MPT) Links.

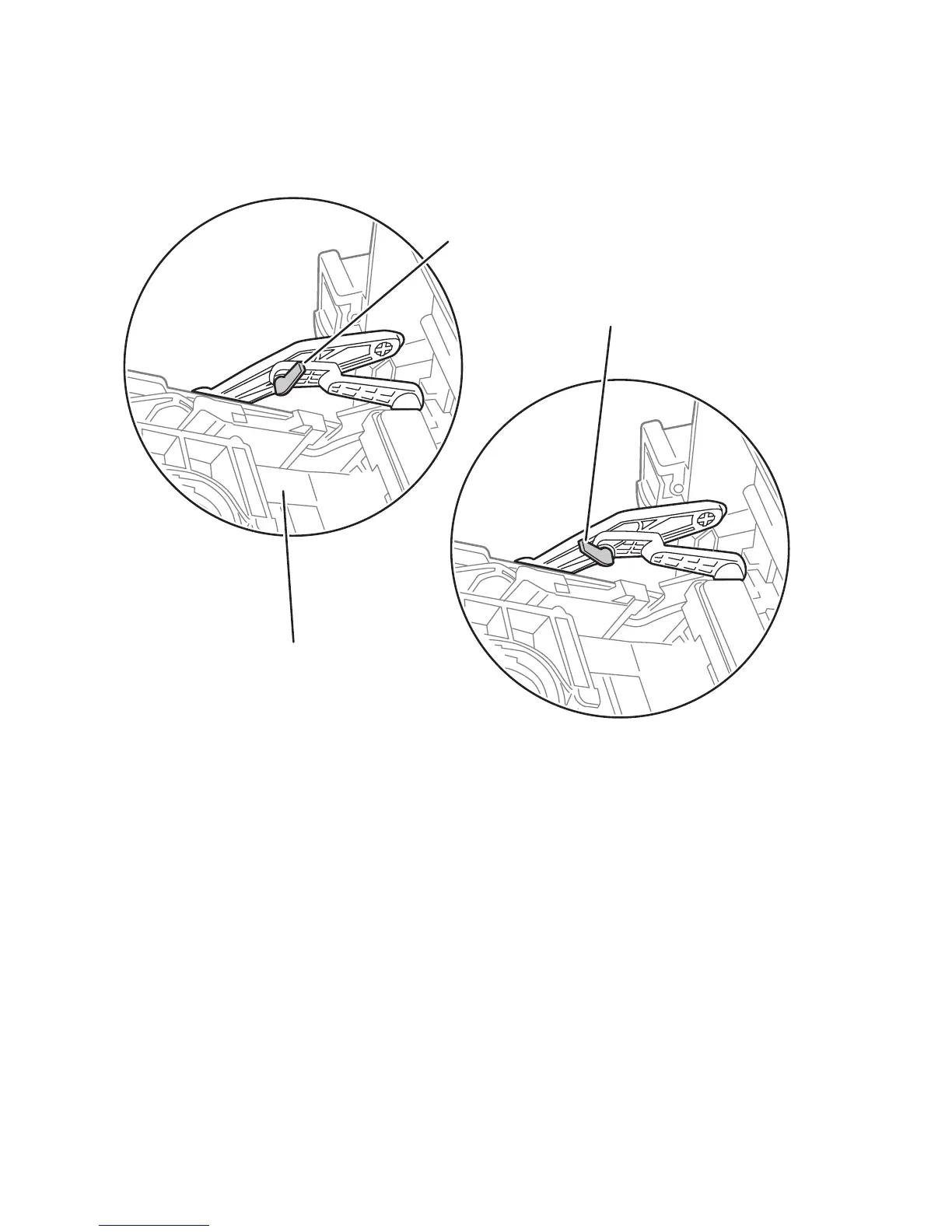

s7400-424
MPT
Unlocked
Locked
