8-106 Phaser 7400 Color Printer Service Manual
Fuser Motor
The Fuser Motor is mounted to the frame with 2 (metal, 6 mm) screws, and connects
to the Motor Driver Board.
1. Remove the Card Cage (page 8-117).
2. Remove 2 (metal, 6 mm) screws that secure the motor.
3. Release the Fuser Motor wiring from the 3 clamps.
4. Disconnect the motor’s connector on the Motor Driver Board.

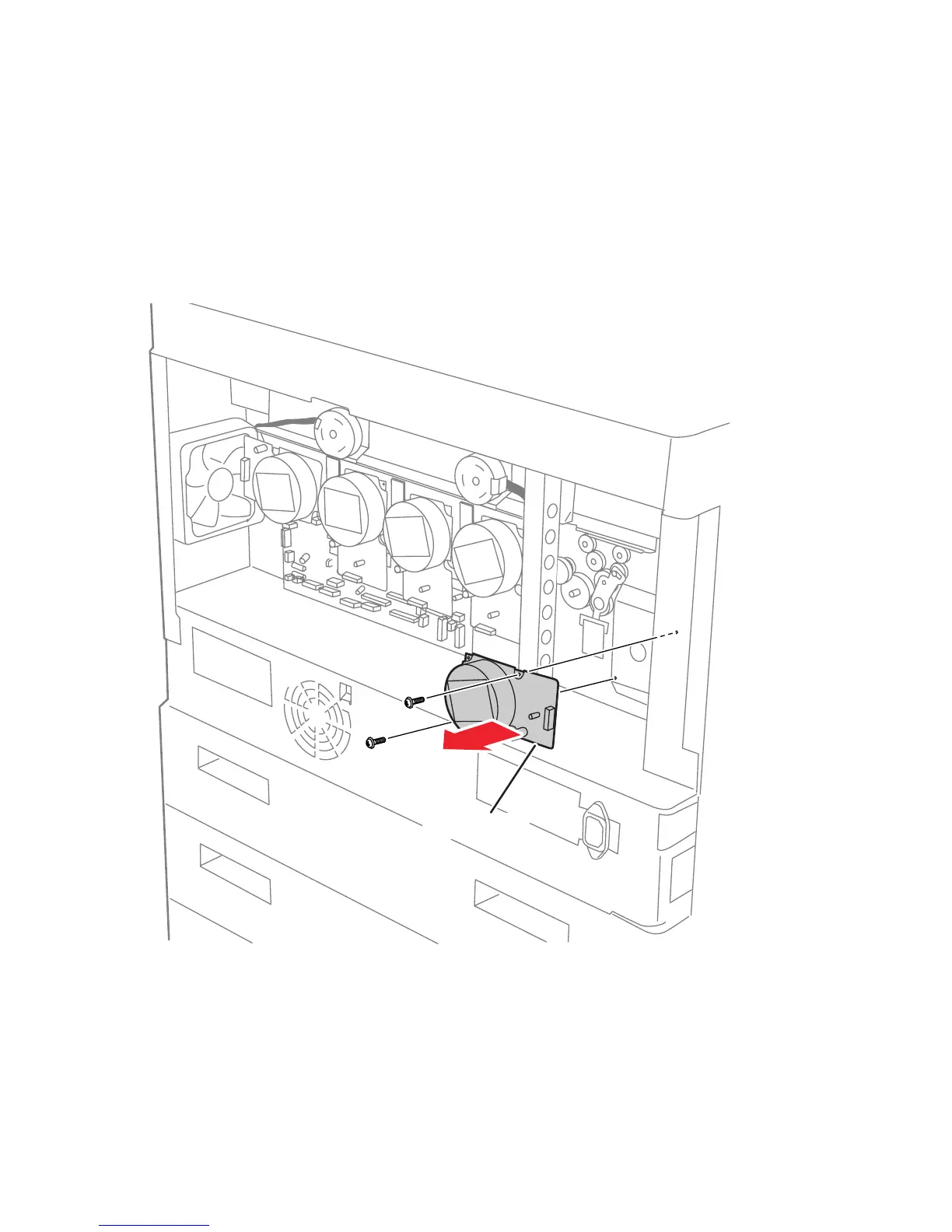

s7400-478
Fuser Motor
