8-54 Phaser 7400 Color Printer Service Manual

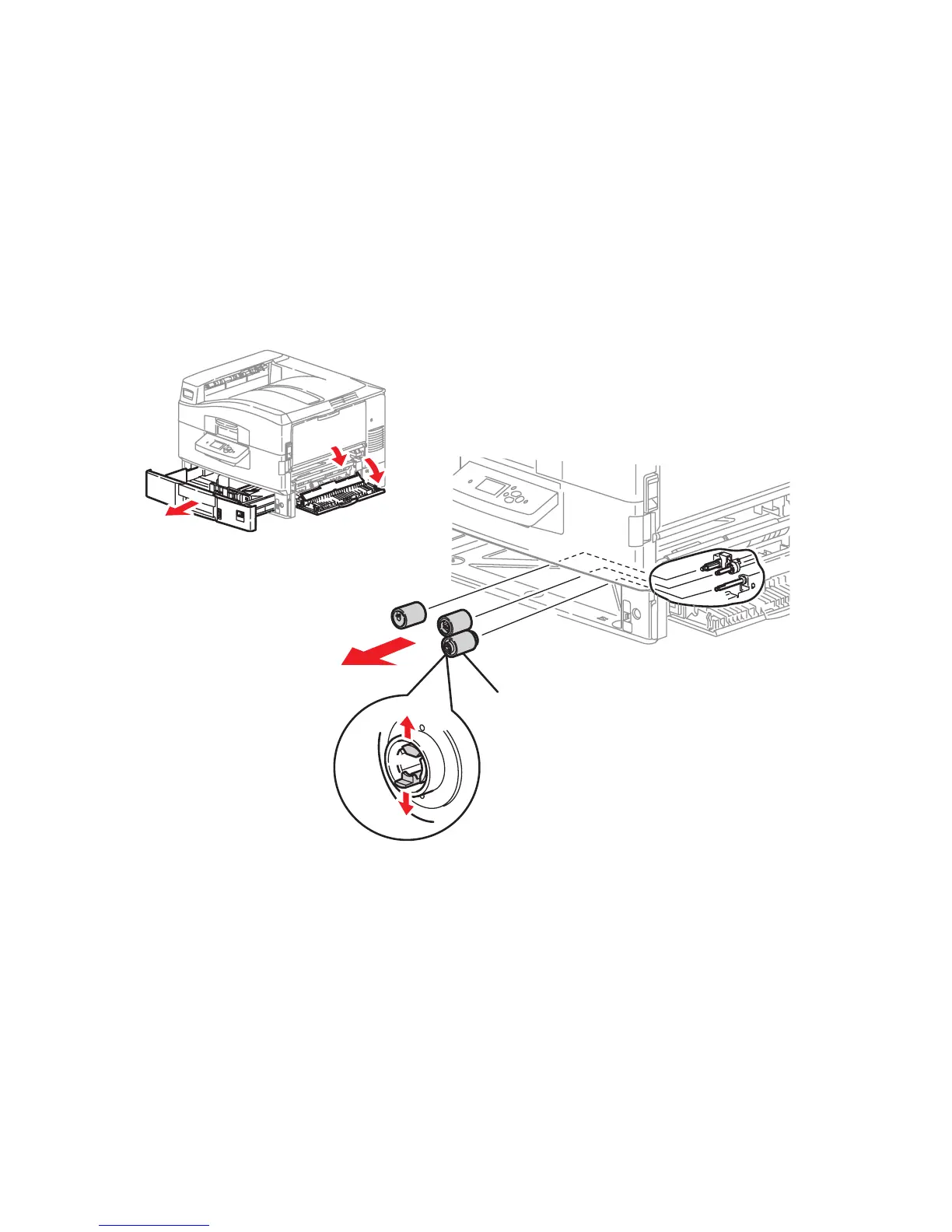

Tray 2 Feed Rollers
Note
Feed Roller (Pick, Feed. Retard) removal is identical for all Universal Trays.
However, each roller is unique. Match each replacement roller to the roller being
removed.
1. Remove Tray 2.
2. Open Door C.
3. Release the hook that secures each roller to the shaft.
s7400-076
Feed Rollers
