2-46 Phaser 7400 Color Printer Service Manual
Chassis Assemblies
Basket Assembly
The Basket Assembly allows all four Imaging Units to be raised from the Transfer
Unit to facilitate jam clearance. A latch at the front of the Basket Assembly releases
the locking catch.
The Basket Assembly is comprised of an upper and lower sub-assembly. The Upper
Basket Assembly attaches to the printer frame and supports the Lower Basket
Assembly. The Lower Basket Assembly connects to the Upper Basket Assembly and
supports the four Imaging Units and the Waste Toner Manifold. The Lower Basket
sub-assembly, or the entire Basket Assembly are available as replacement parts.

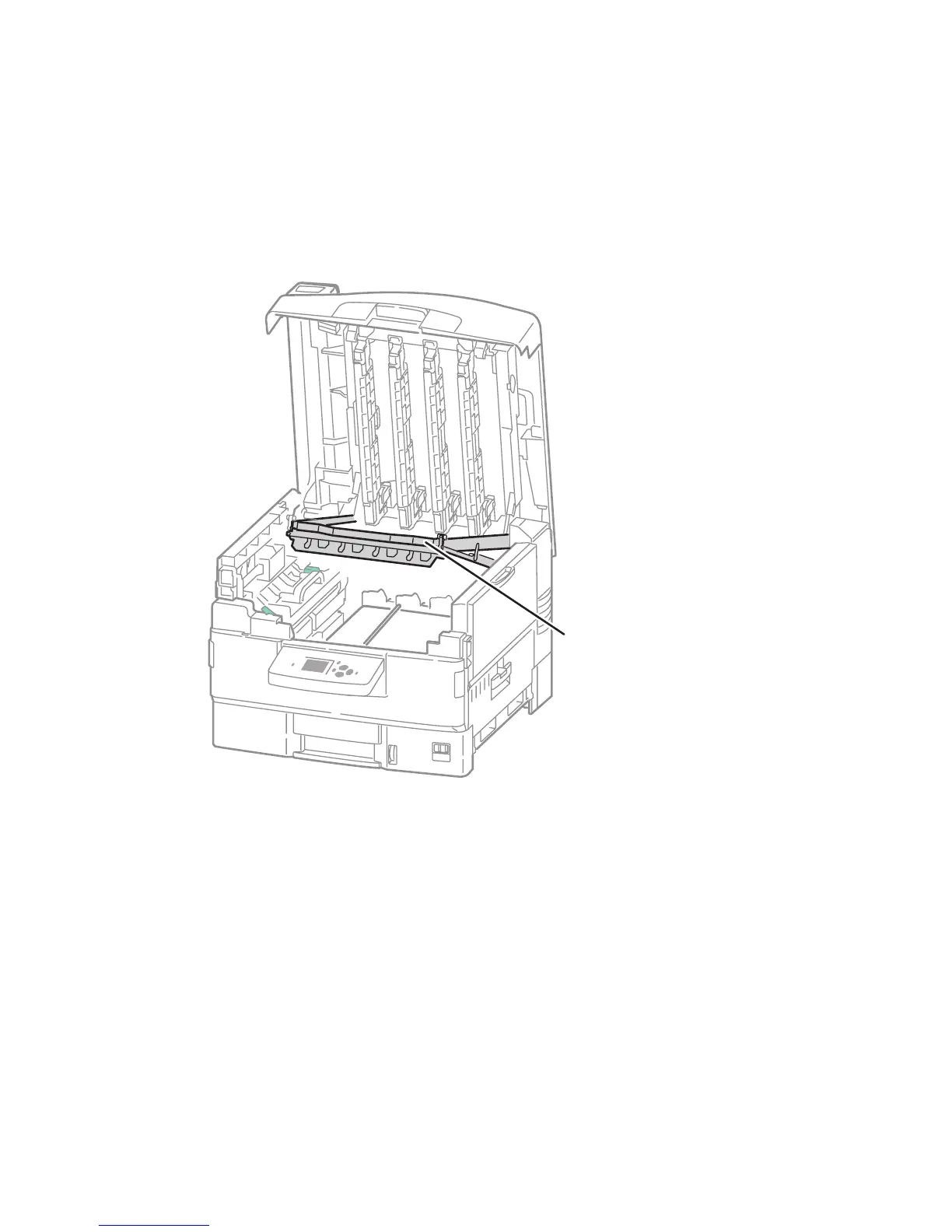

s7400-395
Basket Assembly
