Top Output Tray Stack Full Sensor
1. Release the 2 hooks that secure the Top Output Tray Stack Full Sensor cover to
the Exit Assembly.
2. Disconnect the Top Output Tray Stack Full Sensor (P/J160).
3. Release the wire that surrounds the sensor.
4. Release the hooks that secure the sensor to the Inner Chute to remove the sensor.

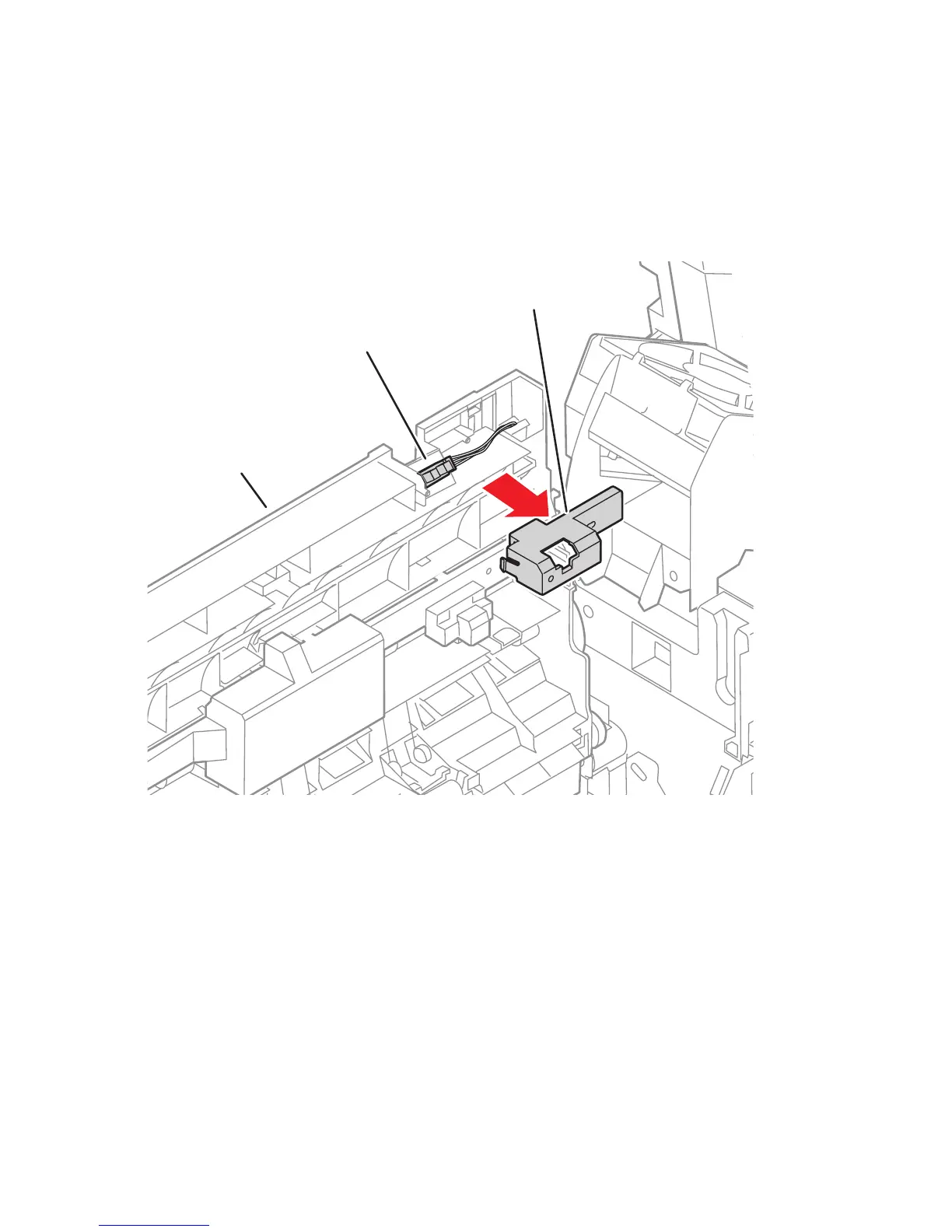

Top Output Tray Stack Full Sensor
Top Output Tray Stack Full Sensor Cover
Exit Assembly
s7400-539
