Xerox Phaser 7400 Service Manual

8-120 Phaser 7400 Color Printer Service Manual
Housing Bias Assembly
Caution
The Transfer Unit Belt Rotation Sensor is mounted in the Housing Bias
Assembly. Use care not to damage the sensor wiring during the removal process.
1. Remove the HVPS Cover (page 8-118).
2. Open the Front Door.
3. Open the Basket Assembly.
4. Remove the 2 (metal, 6 mm) screws that secure the HVPS.
5. Slide the HVPS to the rear to disconnect it from the Housing Bias Assembly.
6. Release the 2 hooks that secure the Housing Bias Assembly to the frame.
7. Lift the assembly slightly to release the 2 tabs.
8. Remove the sensor by releasing the 2 hooks that secure the sensor board.
9. Remove the sensor wiring from the guides in the Housing Bias Assembly.

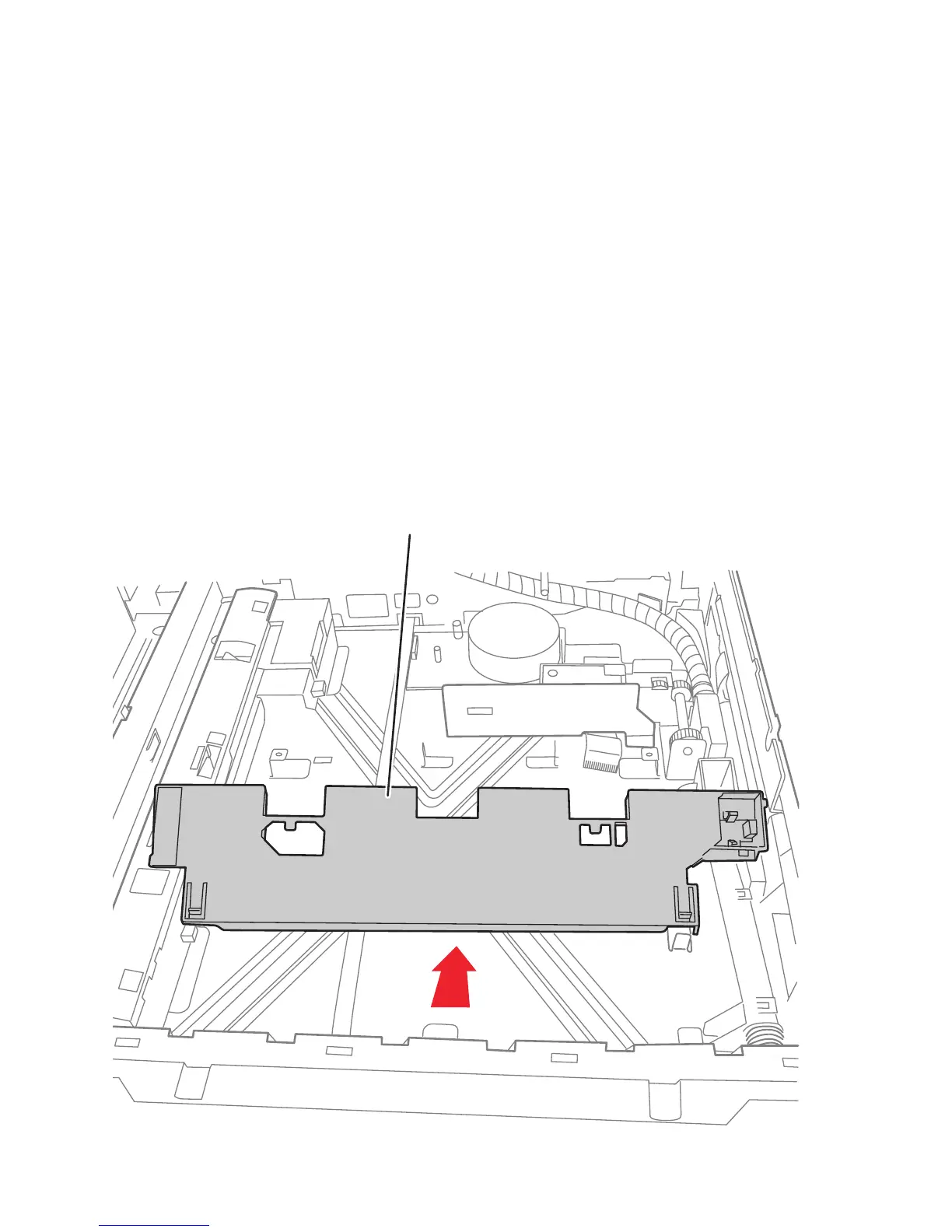

Housing Bias Assembly
s7400-510
