Job Offset Assembly
■ Job Offset Motor
The Offset Motor acting through the Offset Gear shifts the media forward or
backward providing offset capability. The flow diagram shows the components
involved in the offset process.

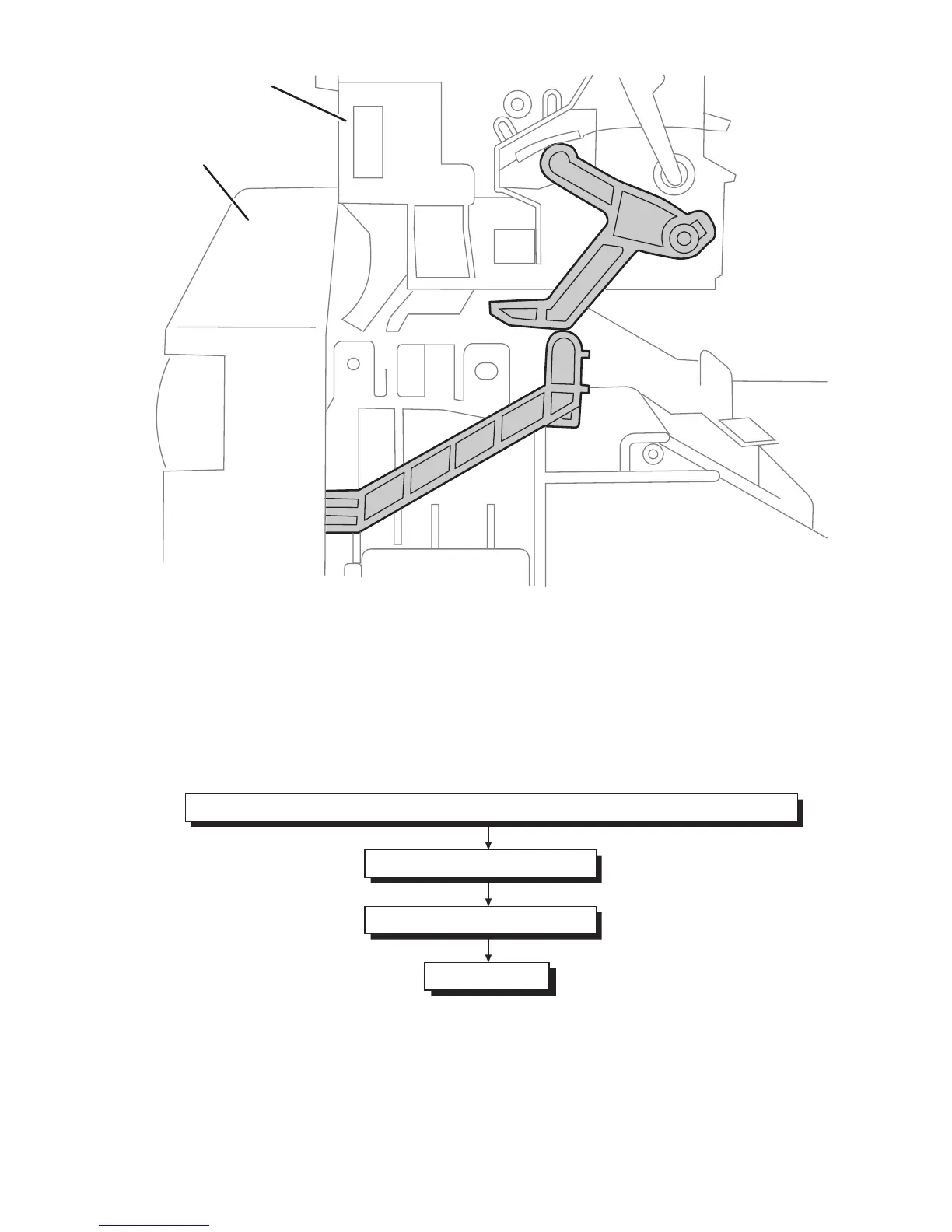

■ Top Output Tray Full Stack Actuator
Acutates the Top Output Tray Full Stack Sensor to limit the number of sheets
sent to the tray.
s7400-407
Exit Assembly
Duplex Unit
s7400
-
646
OFFSET MOTOR
OFFSET CHUTE
OFFSET GEAR
OFFSET ROLLER
