■ Offset Home Position Sensor
The Offset Home Position Sensor detects the roller position.
■ Job Offset Trailing Edge Sensor
Detects the trailing edge of the media as it leaves the Exit Assembly.
■ Exit Rollers
Driven by the Fuser Motor, the Exit Rollers transport media from the Fuser

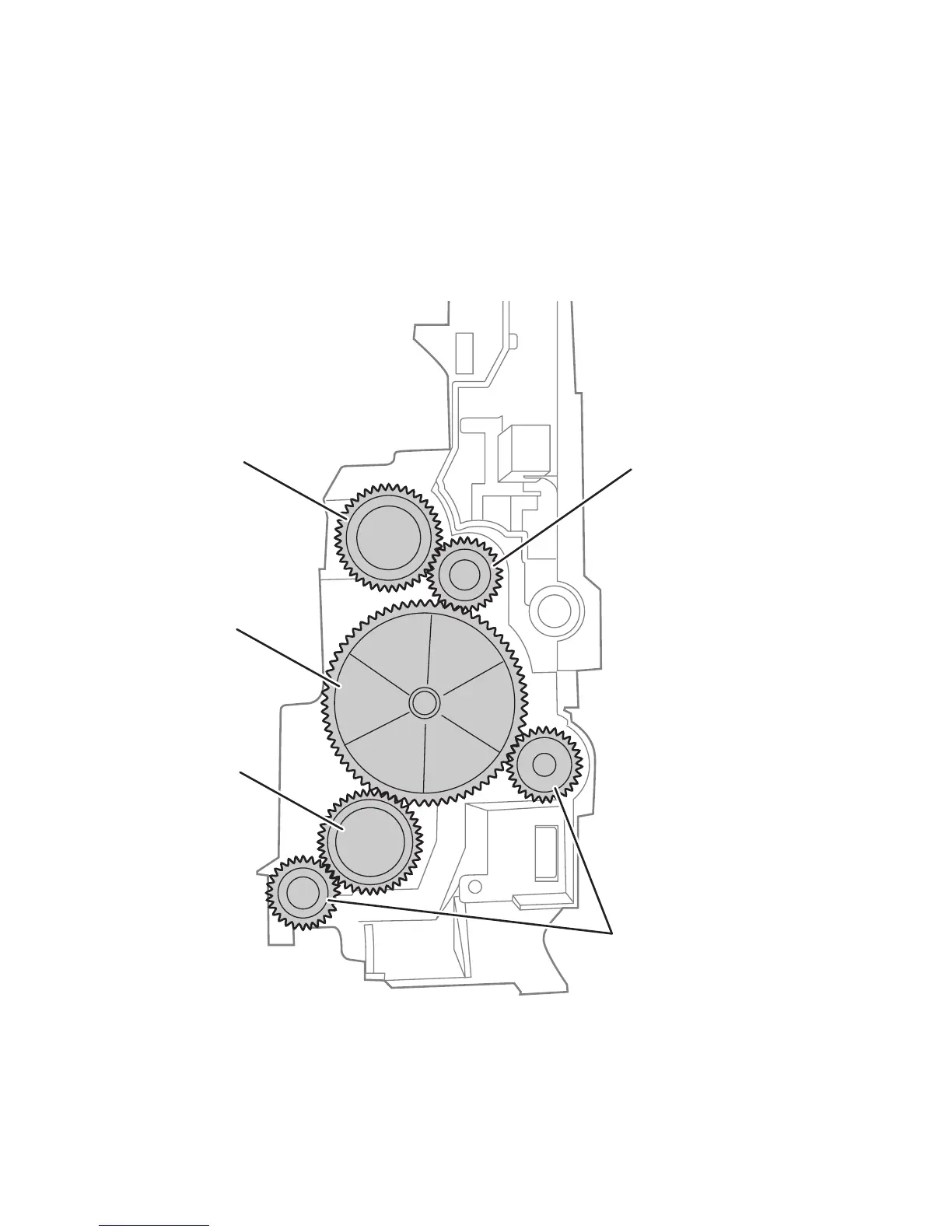

through the Exit Assembly. Exit Roller drive gearing is shown in the following
figure.
■ Duplex Gate
Actuated by the Duplex Gate Solenoid in the Duplex Unit, the Duplex Gate
directs media through the upper portion of the Duplex Unit and returns it to the
Registration Assembly for printing on side 2. The following figure shows the
Duplex Gate linkage between the Duplex Unit and Exit Assembly
s7400-406
Eject Idle
Gear Z27
Eject Idle
Gear Z27
Eject Gear Z17
Eject Gear Z17
Eject Idle
Gear Z54
