1-10 Phaser 7400 Color Printer Service Manual
Configuration Card
A Configuration Card identifies the printer configuration, stores shadowed non-
CRUM consumable data, consumable life counts, and network configuration
parameters.
550-Sheet Feeder
The 550-Sheet Feeder increases the input capacity of the printer. The Lower Tray
Assembly (LTA) attaches below Tray 2. When used in combination with the
1650-Sheet Feeder, the 550-Sheet Feeder is installed between the printer and 1650-
Sheet Feeder. Up to four optional 550-Sheet Feeders per printer, totaling six universal
trays (Trays 2~6), are allowed. However, when the 1650-Sheet Feeder High-Capacity
Feeder (HCF) is installed, only one additional 550-Sheet Feeder is allowed between
the HCF and printer. Electrical connection to the printer is made by a single interface
connector.
1650-Sheet Feeder
The 1650-Sheet Feeder adds three 550-sheet trays. Control signals reach the sheet
feeder by a single connection.

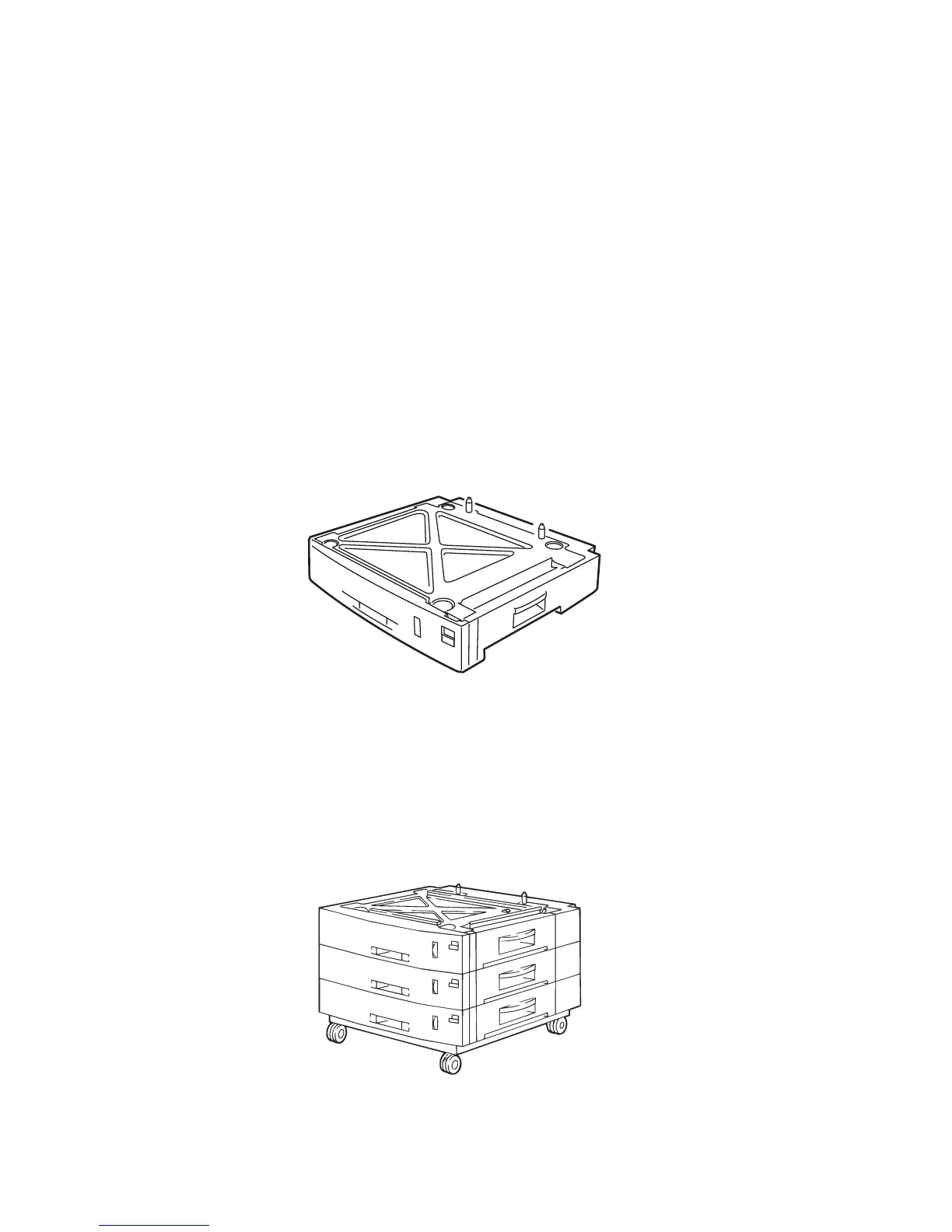

s7400-001
s7400-003

Xerox Phaser 7400 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	600 x 1200 DPI
Time to first page (black, normal)	12 s
Print speed (black, normal quality, A4/US Letter)	40 ppm
Print speed (color, normal quality, A4/US Letter)	36 ppm
Storage media	HDD
Internal memory	512 MB
Processor model	PowerPC
Maximum internal memory	1 MB
Internal storage capacity	20 GB
Total input capacity	800 sheets
Maximum input capacity	3000 sheets
Paper tray 2 input capacity	350 sheets
Auto document feeder (ADF) input capacity	1650 sheets
Maximum print size	297 x 420 mm
Paper tray media types	Envelopes, Labels, Transparencies
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Letter (media size), Statement (140 x 216mm), Legal (media size)
Maximum ISO A-series paper size	A3
Power requirements	100-240V, 50/60Hz
Networking features	Fast Ethernet
Supported media weight(s)	270 g/m²
Maximum operating temperature range (T-T)	10 - 32 °C
Certification	FCC p.15 A, CE
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-4 - 140 °F
Storage relative humidity (H-H)	10 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Maximum duty cycle	150000 pages per month

Weight and Dimensions

Dimensions (WxDxH)	1438 x 623 x 975 mm
