Xerox Phaser 7400

Service Parts Disassembly 8-19
Door B

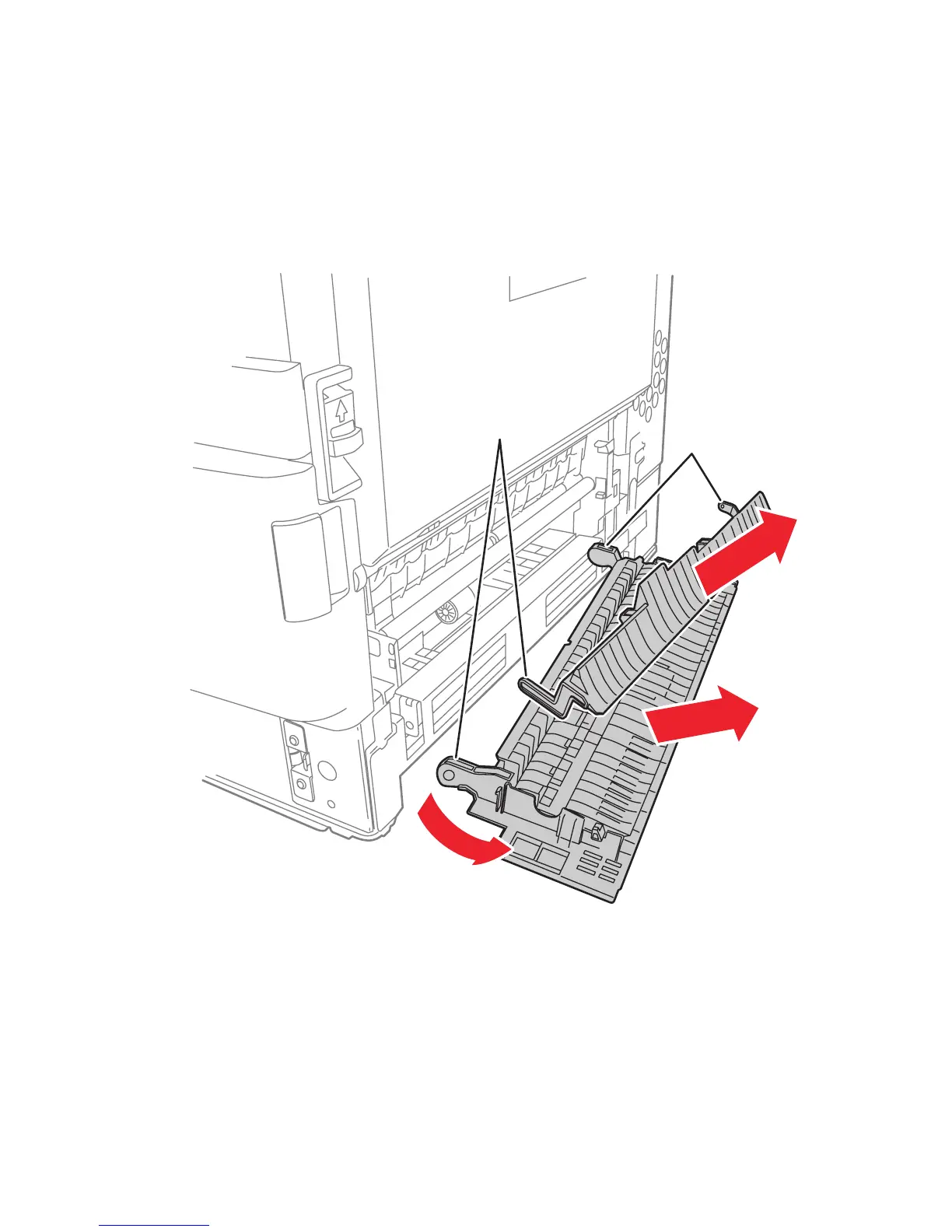

1. Remove the Right Side Cover (page 8-16).
2. Open Door B.
3. Remove the Door B Chute by sliding the chute to the left and gently prying the
left hinge point from the Door B pivot.
4. Slide Door B to the left to release the bosses from the holes in the frame.
2
3
1
s7400-438
Bosses
Bosses
