Service Parts Disassembly 8-63
Top Output Chute

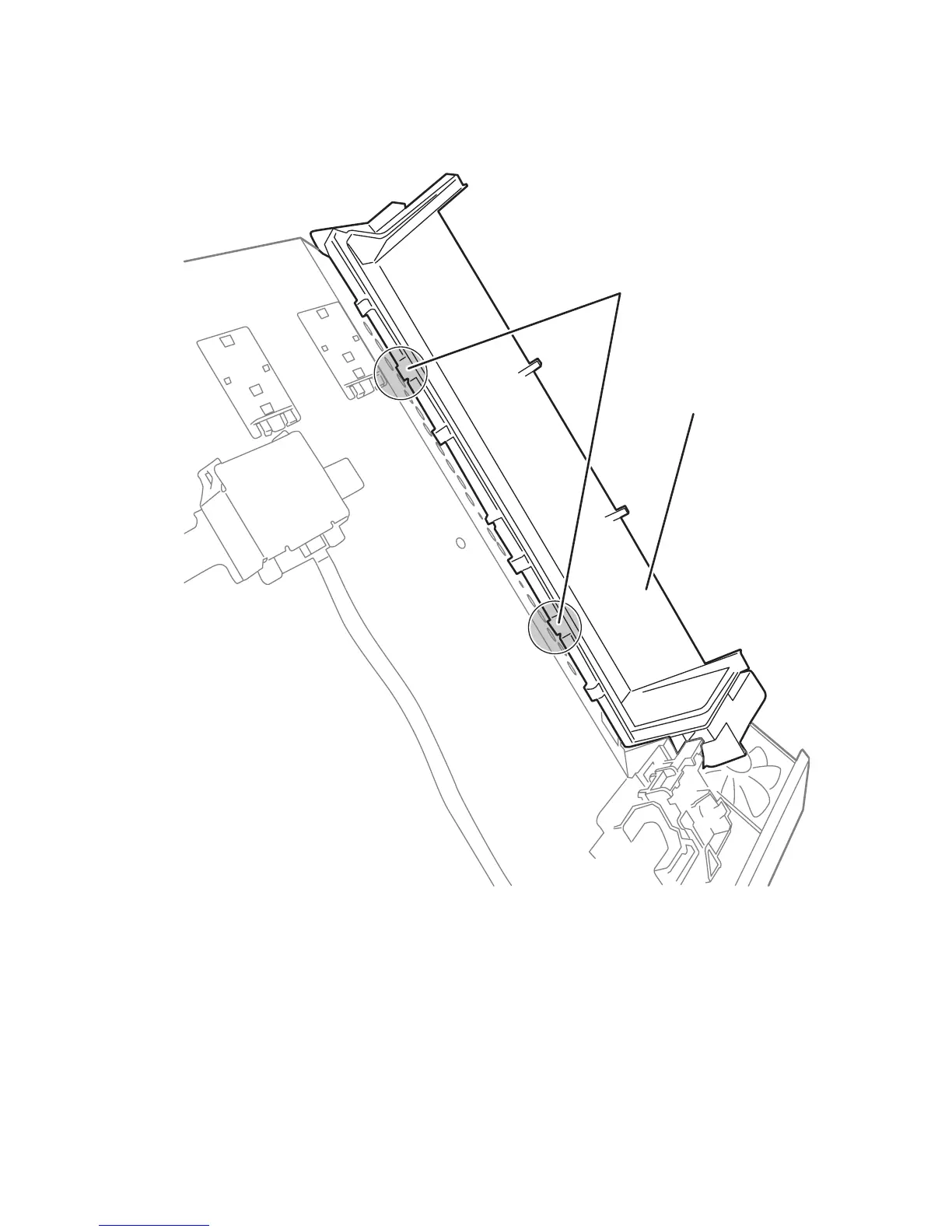

1. Remove the Job Offset Assembly (page 8-56).
2. Release the 2 hooks that secure the Top Output Chute to the LED Assembly.
Hooks
Top Output Chute
s7400-57
