Xerox Phaser 7400 Service Manual

Service Parts Disassembly 8-21

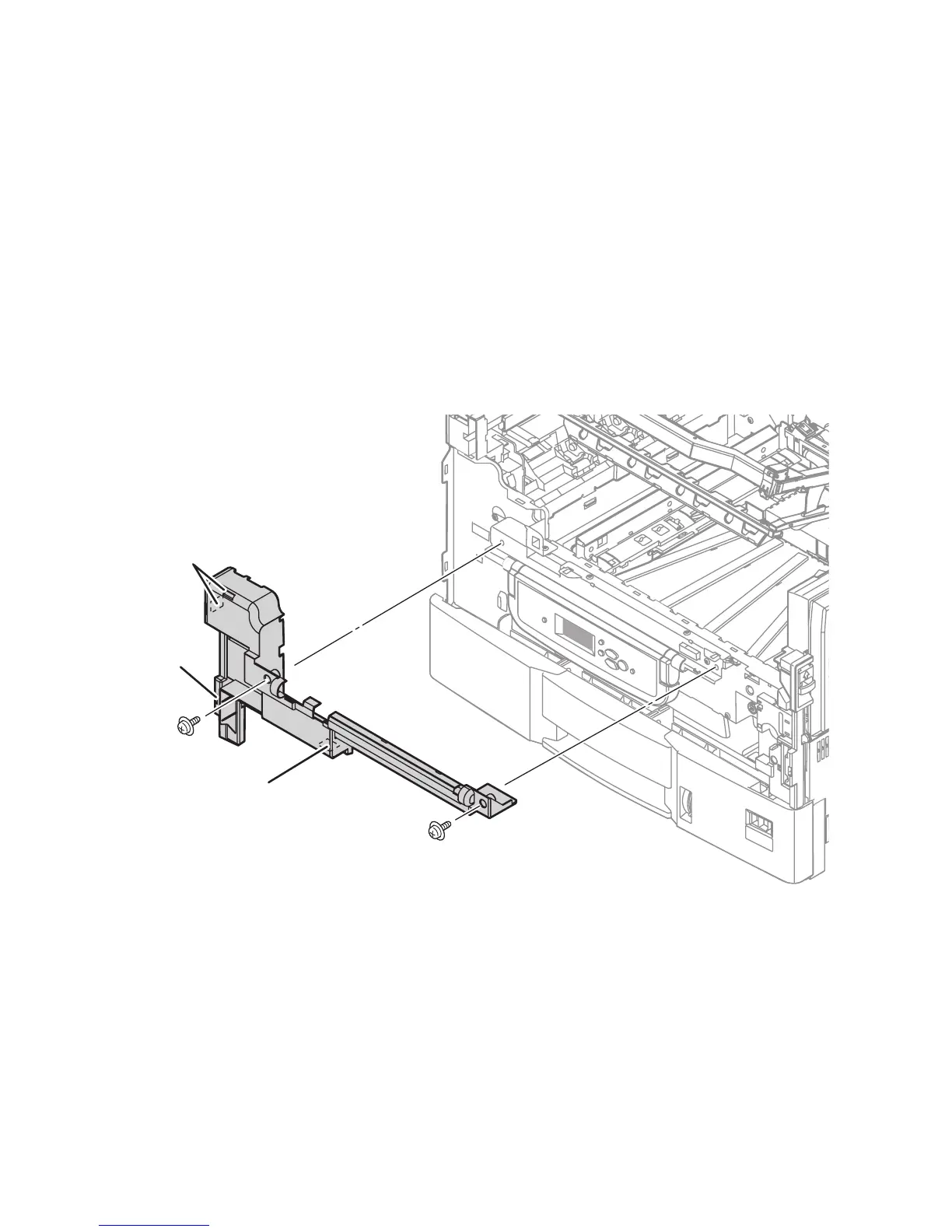

Left Front Cover
1. Open the Top Cover and lift the Basket Assembly.
2. Open the Front Door.
3. Remove the Waste Toner Reservoir, if present, and then insert the Waste Toner
Plug as shown on the reservoir label.
4. Remove 1 (metal, 6 mm) screw that secures the left side Stopper Strap on the
Front Door.
5. Remove 2 (metal, 10 mm) screws securing the Left Front Cover.
6. Release the3 tabs at the left using a flat-blade screwdriver. Insert the screwdriver
in the opening provided and carefully lift the cover from the frame. Press the
fourth tab, located on the cover’s lower edge, upwards to release it from the
frame.
Tabs
Tab
Tab
s7400-18
4

Xerox Phaser 7400 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	600 x 1200 DPI
Time to first page (black, normal)	12 s
Print speed (black, normal quality, A4/US Letter)	40 ppm
Print speed (color, normal quality, A4/US Letter)	36 ppm
Storage media	HDD
Internal memory	512 MB
Processor model	PowerPC
Maximum internal memory	1 MB
Internal storage capacity	20 GB
Total input capacity	800 sheets
Maximum input capacity	3000 sheets
Paper tray 2 input capacity	350 sheets
Auto document feeder (ADF) input capacity	1650 sheets
Maximum print size	297 x 420 mm
Paper tray media types	Envelopes, Labels, Transparencies
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Letter (media size), Statement (140 x 216mm), Legal (media size)
Maximum ISO A-series paper size	A3
Power requirements	100-240V, 50/60Hz
Networking features	Fast Ethernet
Supported media weight(s)	270 g/m²
Maximum operating temperature range (T-T)	10 - 32 °C
Certification	FCC p.15 A, CE
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-4 - 140 °F
Storage relative humidity (H-H)	10 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Maximum duty cycle	150000 pages per month

Weight and Dimensions

Dimensions (WxDxH)	1438 x 623 x 975 mm
