Xerox Phaser 7400 Service Manual

Print-Quality Troubleshooting 5-7
5. Margins: Margins should be 8 mm from the edge of the paper to the line.
6. Image Size: The image height should be 261 mm between the top and bottom
lines. The image width should be 192 mm between the left and right lines.

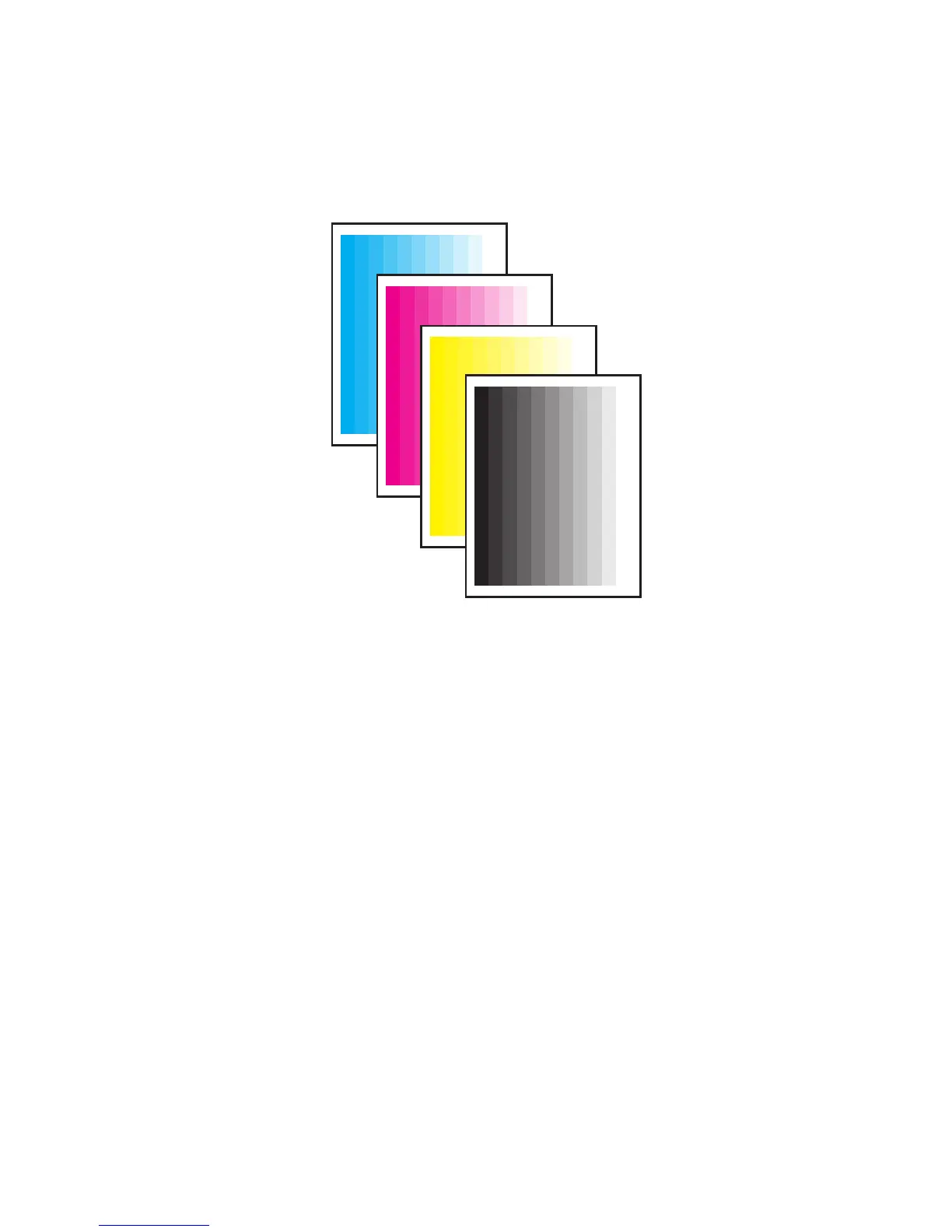

Analyzing the Color Step Pages
This print consists of 4 pages, CMYK in graduated fills of decreasing density.
Things to look for:
■ Repeating defects or banding
■ Inconsistant variations in density
■ Streaks
■ Vo i d s
1. Graduated fills in each color. Each color should be consistent across the width of
the page with no voids.
2. No separation or misconvergence where each bar meets its neighbor. Each bar is
separated by a thin black line.
3. Look for thin white lines that would indicate a dirty LED lens or a scratched
Imaging Unit.
4. Look for dark lines that would indicate a dirty or damaged Imaging Unit.
5. Look for complete fusing. Cold or hot offset fusing could indicate the incorrect
paper weight has been selected.
s7400-655

Xerox Phaser 7400 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	600 x 1200 DPI
Time to first page (black, normal)	12 s
Print speed (black, normal quality, A4/US Letter)	40 ppm
Print speed (color, normal quality, A4/US Letter)	36 ppm
Storage media	HDD
Internal memory	512 MB
Processor model	PowerPC
Maximum internal memory	1 MB
Internal storage capacity	20 GB
Total input capacity	800 sheets
Maximum input capacity	3000 sheets
Paper tray 2 input capacity	350 sheets
Auto document feeder (ADF) input capacity	1650 sheets
Maximum print size	297 x 420 mm
Paper tray media types	Envelopes, Labels, Transparencies
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Letter (media size), Statement (140 x 216mm), Legal (media size)
Maximum ISO A-series paper size	A3
Power requirements	100-240V, 50/60Hz
Networking features	Fast Ethernet
Supported media weight(s)	270 g/m²
Maximum operating temperature range (T-T)	10 - 32 °C
Certification	FCC p.15 A, CE
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-4 - 140 °F
Storage relative humidity (H-H)	10 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Maximum duty cycle	150000 pages per month

Weight and Dimensions

Dimensions (WxDxH)	1438 x 623 x 975 mm
