Service Parts Disassembly 8-151
Rear Sensor Board
The Rear Sensor Board is located underneath the Rear Sensor Board Cover on the
Exit Assembly.
1. Open the Top Cover.

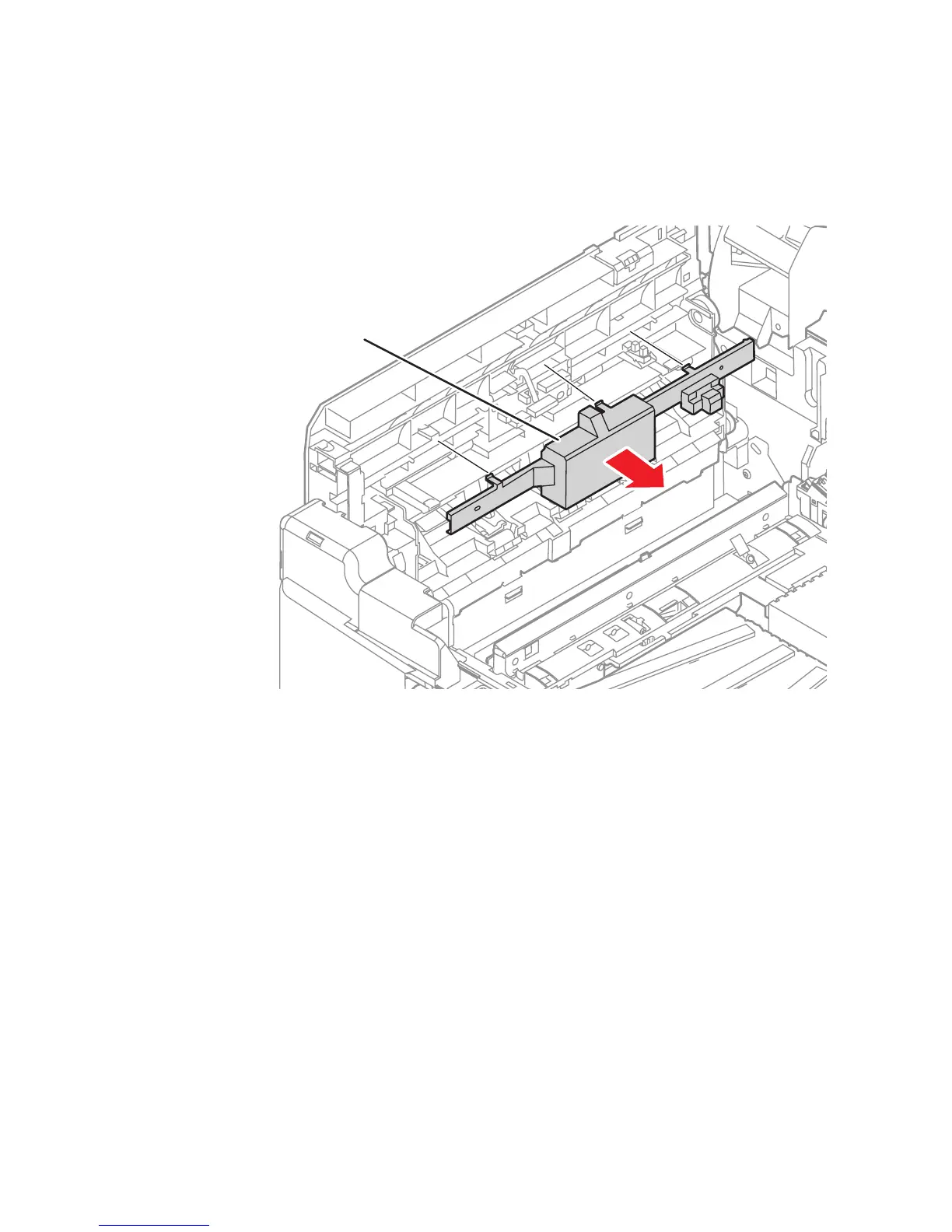

2. Release the 6 hooks and 3 tabs that secure the Rear Sensor Board Cover.
Rear Sensor Board Cover
s7400-353
