8-8 Phaser 7400 Color Printer Service Manual
Maintenance Items and Consumables
Maintenance items include the Transfer Unit and Fuser. The Feed Rollers are also
routine maintenance items, but individual procedures for their removal and
replacement are provided on
page 8-34 and page 8-54. Consumables consist of the
Toner Cartridges, Imaging Units, the Waste Toner Reservoir, and if present, the Staple
Cartridge.

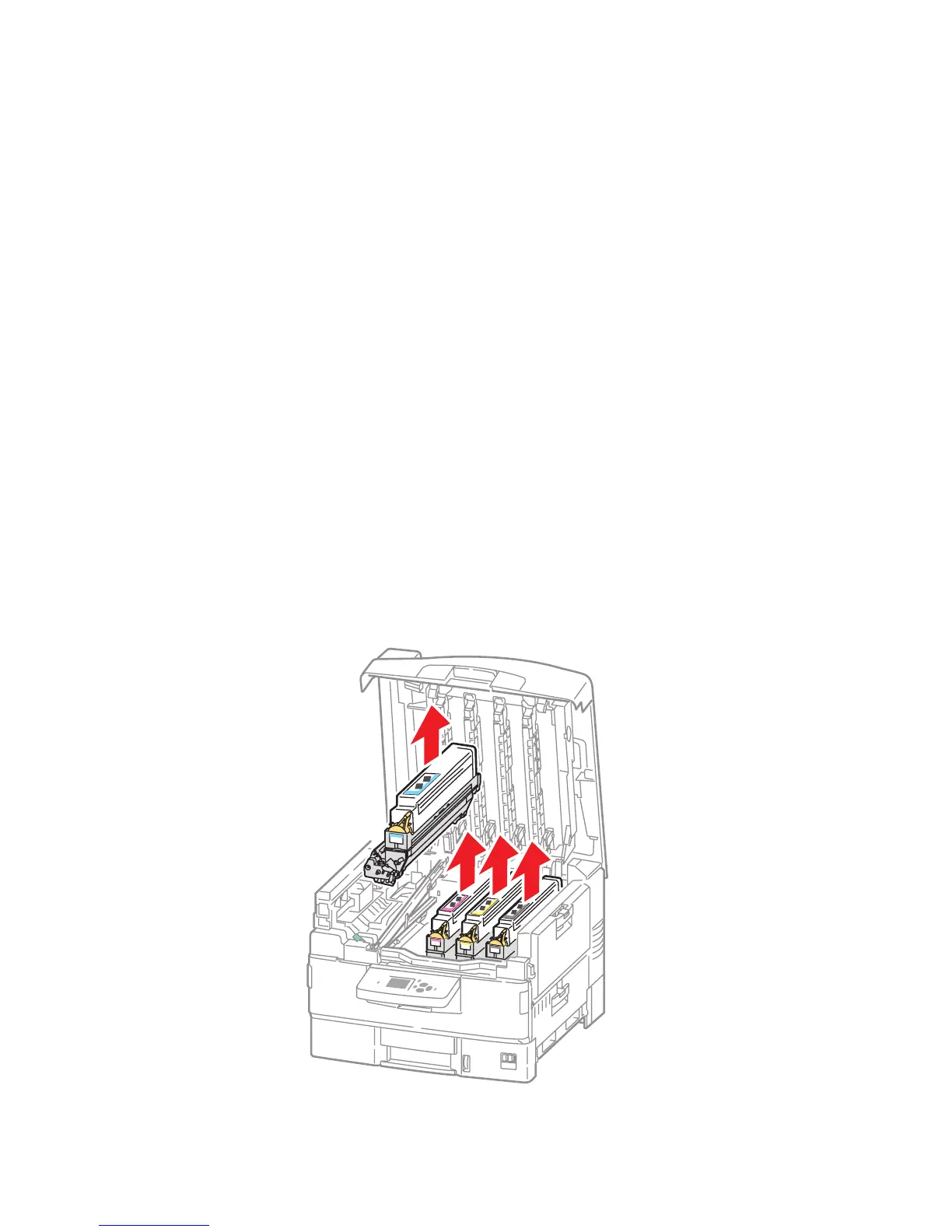

Imaging Unit Removal
In this section, Imaging Unit often refers to the combination of the Toner Cartridges
and Imaging Units. When asked to remove the Imaging Unit, use this procedure:
1. Power down the printer.
2. Lift the Top Cover.
3. Grasp the top of the Toner Cartridge, and then lift the Imaging Unit out of the
printer.
4. Place the Imaging Unit in a light proof bag or other light proof container.
Caution
Leaving an Imaging Unit exposed to light for periods in excess of a 10 minutes
can quickly degrade its performance and result in early failure.
s7400-444

Xerox Phaser 7400 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	600 x 1200 DPI
Time to first page (black, normal)	12 s
Print speed (black, normal quality, A4/US Letter)	40 ppm
Print speed (color, normal quality, A4/US Letter)	36 ppm
Storage media	HDD
Internal memory	512 MB
Processor model	PowerPC
Maximum internal memory	1 MB
Internal storage capacity	20 GB
Total input capacity	800 sheets
Maximum input capacity	3000 sheets
Paper tray 2 input capacity	350 sheets
Auto document feeder (ADF) input capacity	1650 sheets
Maximum print size	297 x 420 mm
Paper tray media types	Envelopes, Labels, Transparencies
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Letter (media size), Statement (140 x 216mm), Legal (media size)
Maximum ISO A-series paper size	A3
Power requirements	100-240V, 50/60Hz
Networking features	Fast Ethernet
Supported media weight(s)	270 g/m²
Maximum operating temperature range (T-T)	10 - 32 °C
Certification	FCC p.15 A, CE
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-4 - 140 °F
Storage relative humidity (H-H)	10 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Maximum duty cycle	150000 pages per month

Weight and Dimensions

Dimensions (WxDxH)	1438 x 623 x 975 mm
