2-44 Phaser 7400 Color Printer Service Manual

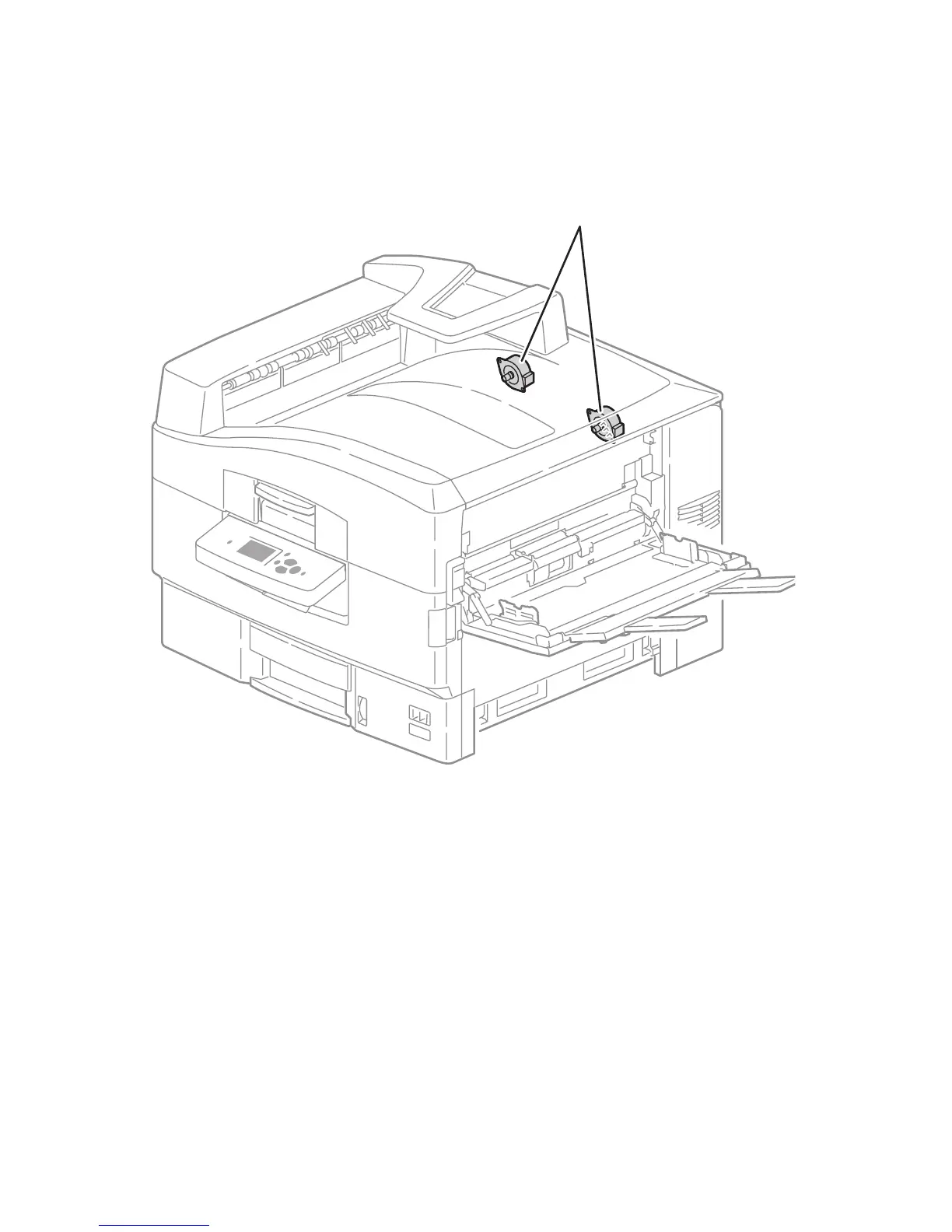

Toner Dispense Motors
The CM and YK Toner Dispense Motors are mounted above the Imaging Unit Motors
and drive the Toner Cartridge Supply Augers and Agitation Springs to deliver toner to
the Imaging Units.
s7400-48
Toner Dispense Motors
