Xerox Phaser 7400

8-56 Phaser 7400 Color Printer Service Manual
Chassis
Job Offset Assembly
Note
There are two springs on top of the Job Offset Assembly that are not captured.
Use care not to loose these springs.
1. Remove the Top Cover (page 8-24).
2. Release the Job Offset Motor harness from the guides at the rear of the LED
Assembly (4 red wires).

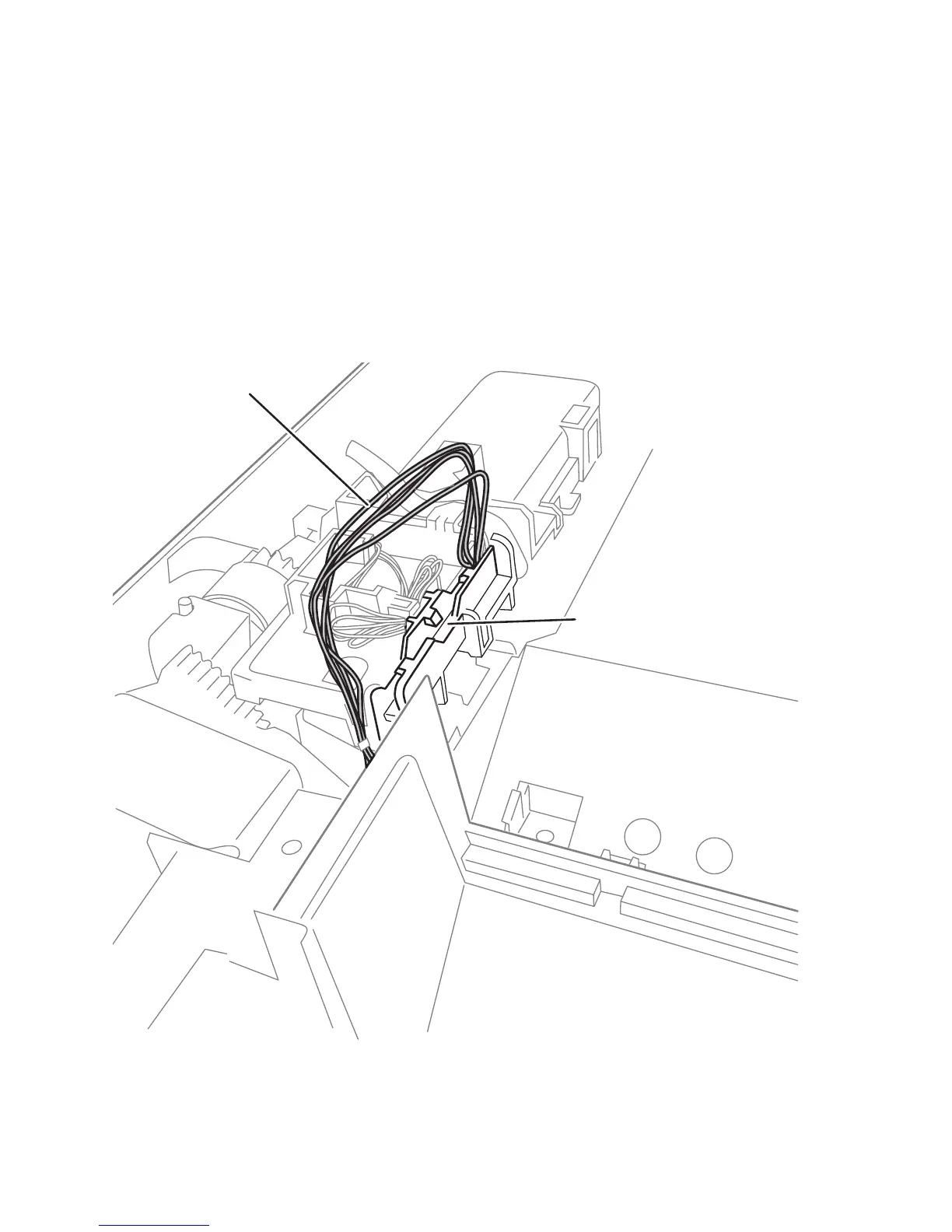

Wiring Guide
Job Offset Wiring
s7400-417
