Service Parts Disassembly 8-61
Job Offset Home Position Sensor

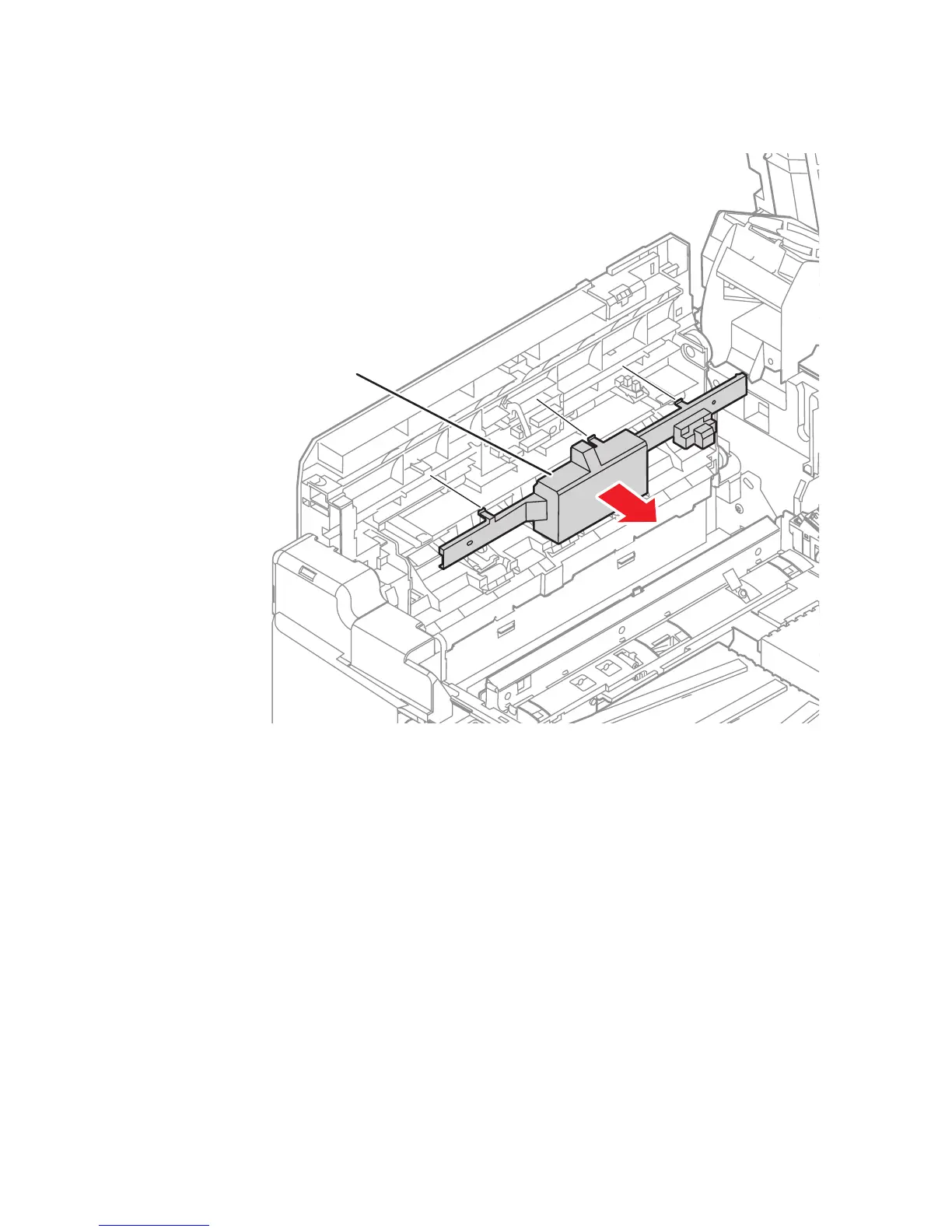

1. Remove the 6 hooks that secure the Rear Sensor Board Cover to the Exit
Assembly.
2. Release the hooks that secure the Job Offset Home Position Sensor to the Exit
Assembly.
Rear Sensor Board Cover
s7400-353
