Service Parts Disassembly 8-107

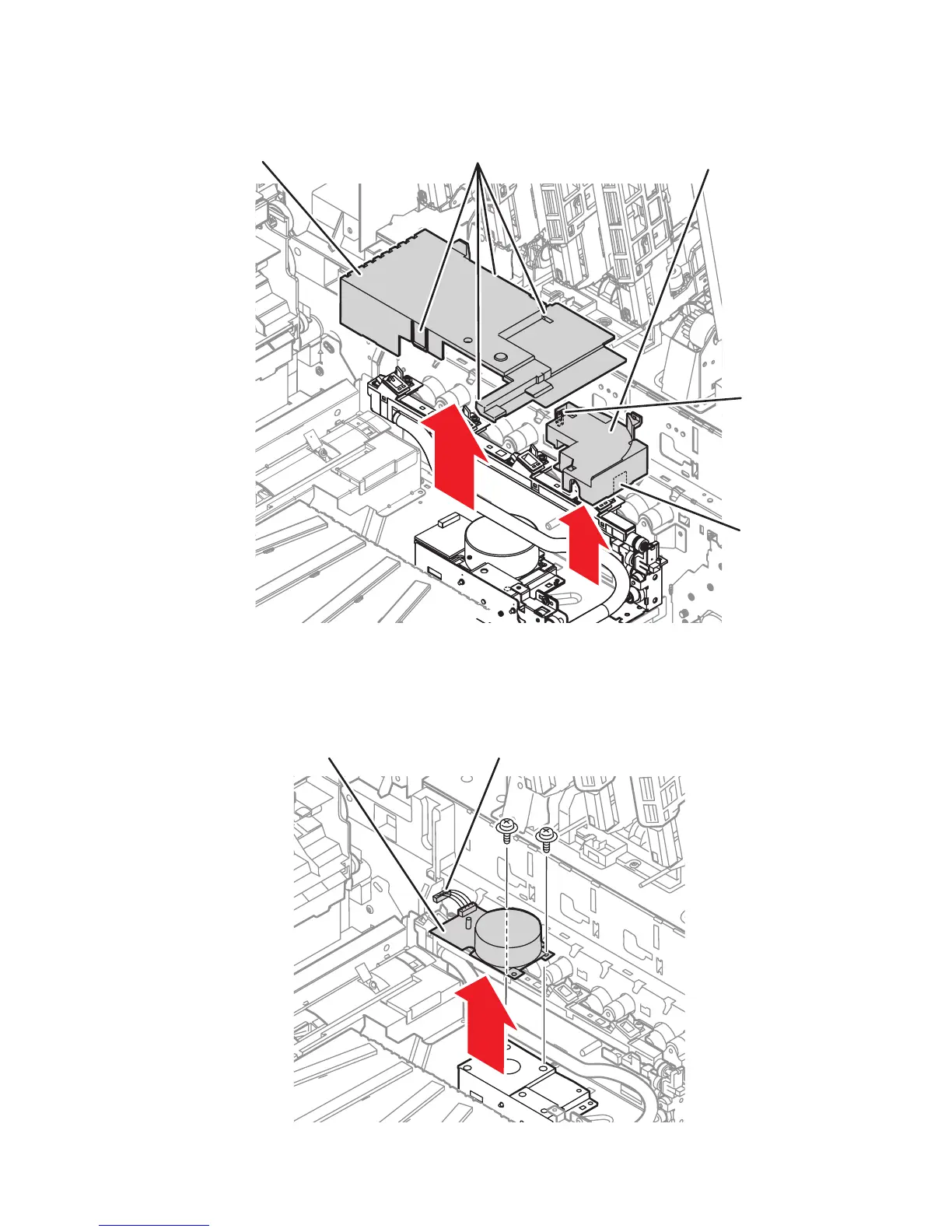

Waste Toner Motor
1. Release the 4 hooks that secure the Waste Toner Motor Cover.
2. Disconnect the Waste Toner Motor connector (P/J50) from the Waste Toner
Motor harness.
3. Remove 2 (metal, 6 mm) screws that secure the motor to the frame.
Waste Toner Motor Cover
Auger Tube Guide
Hooks
Hook
Tab
s7400-415
Waste Toner Drive Motor P/J50
