8-32 Phaser 7400 Color Printer Service Manual
Feed-Out Sensor #1
1. Open Door A.
2. Remove the Sensor Cover from the back of Tray 1 (MPT).
3. Disconnect the sensor from the harness (P/J450).
4. Release the hooks that secure the sensor to Tray 1 (MPT).

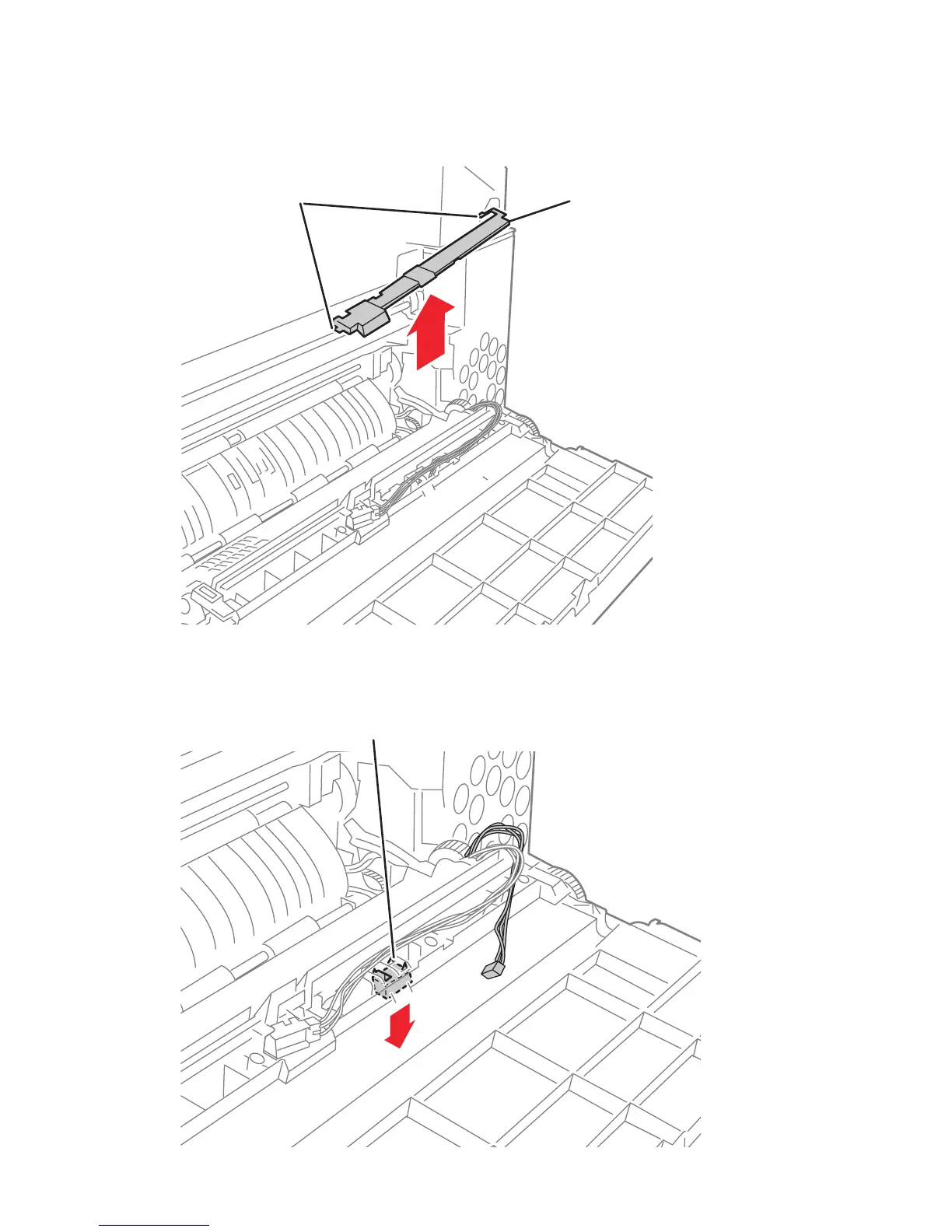

s7400-458
Sensor Cover
Tabs
s7400-460
Feed Out Sensor #1
