8-28 Phaser 7400 Color Printer Service Manual
Tray 1 (MPT) Level Sensor
Two non-captive springs are installed under the Feed Roller Assembly cover. The
smaller of the two springs puts tension on the Pick Roller. The larger spring sets on a
boss at the rear of the assembly.
1. Open Tray 1 (MPT).
2. Remove 2 (black, plastic 6 mm) screws that secure the cover on the Feed Roller
Assembly.

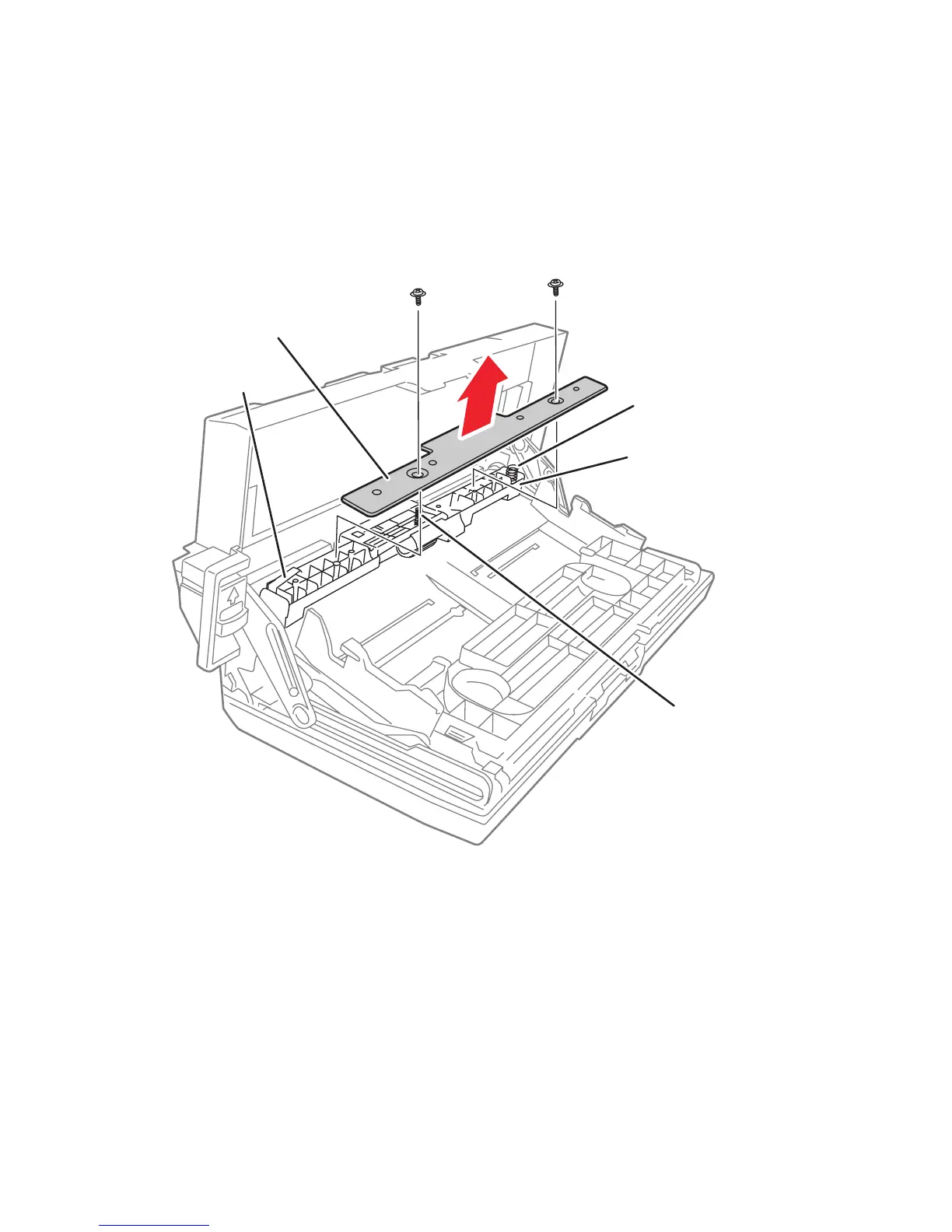

Feed Roller
Assembly
Large Spring
Small Spring
Leaf Spring
Feed Roller Assembly Cover
s7400-457
To Next Page
