Xerox Phaser 7400 Service Manual

8-92 Phaser 7400 Color Printer Service Manual
Lower Basket Assembly
1. Remove 4 (Black, plastic 6 mm) screws that secure the Waste Toner Manifold to
the Lower Basket Assembly.
2. Remove 2 E-rings that secure the hinges on either side of the Lower Basket
Assembly.
3. Release the Spring from the Upper Basket Assembly at the left, rear of the arm.
4. Remove the Hinge Pins to remove the Lower Basket Assembly.
Replacement Note
Align the Lower Basket rear guides into frame before installing hinge pins.

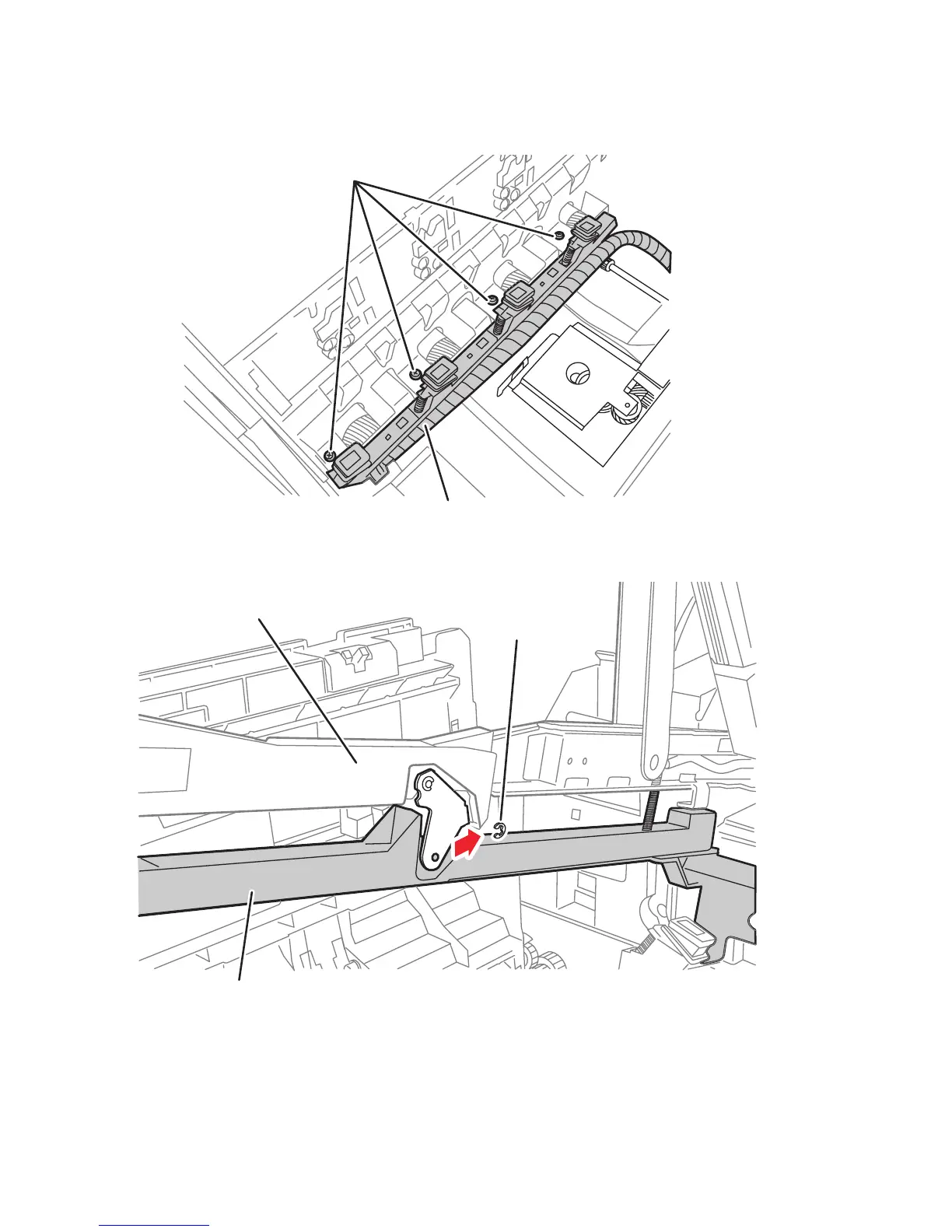

s7400-449
Screws
Manifold and Tube
Lower Basket
s7400-550
E-Ring
Upper Basket

Xerox Phaser 7400 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	600 x 1200 DPI
Time to first page (black, normal)	12 s
Print speed (black, normal quality, A4/US Letter)	40 ppm
Print speed (color, normal quality, A4/US Letter)	36 ppm
Storage media	HDD
Internal memory	512 MB
Processor model	PowerPC
Maximum internal memory	1 MB
Internal storage capacity	20 GB
Total input capacity	800 sheets
Maximum input capacity	3000 sheets
Paper tray 2 input capacity	350 sheets
Auto document feeder (ADF) input capacity	1650 sheets
Maximum print size	297 x 420 mm
Paper tray media types	Envelopes, Labels, Transparencies
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Letter (media size), Statement (140 x 216mm), Legal (media size)
Maximum ISO A-series paper size	A3
Power requirements	100-240V, 50/60Hz
Networking features	Fast Ethernet
Supported media weight(s)	270 g/m²
Maximum operating temperature range (T-T)	10 - 32 °C
Certification	FCC p.15 A, CE
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-4 - 140 °F
Storage relative humidity (H-H)	10 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Maximum duty cycle	150000 pages per month

Weight and Dimensions

Dimensions (WxDxH)	1438 x 623 x 975 mm
