Xerox Phaser 7400

Service Parts Disassembly 8-39
Registration Motor
1. Remove the Tray 2 Feeder (page 8-38).
2. Release the motor harness from the clamp.
3. Disconnect the Registration Motor connector (P/J40) from the harness.
4. Remove 2 (metal, 6 mm) screws that secure the Registration Motor to the Feeder.

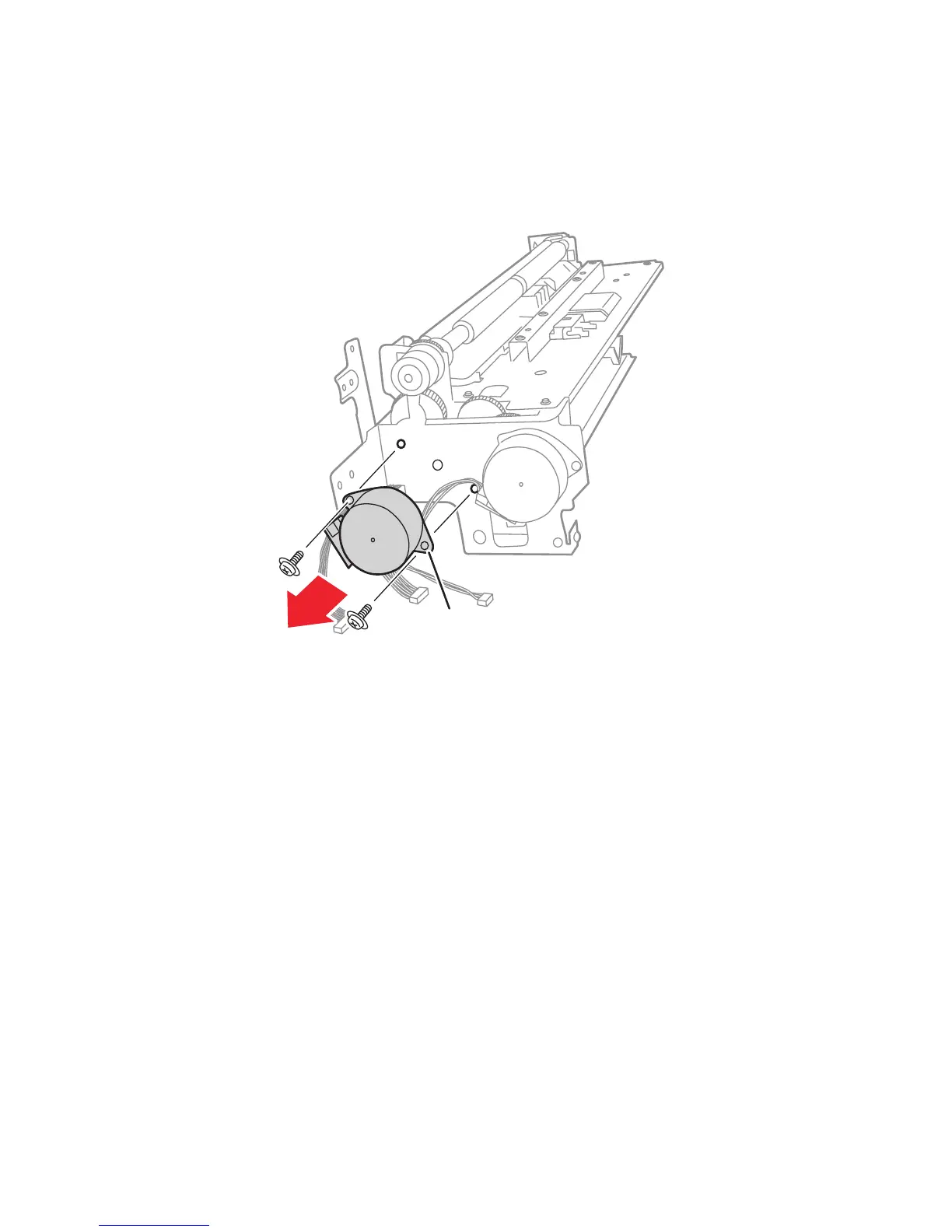

Registration Motor
s7400-463
